Football::ServiceBase Class Reference

C++ Service wrapper Manages the service's connections. More...

#include <football.h>

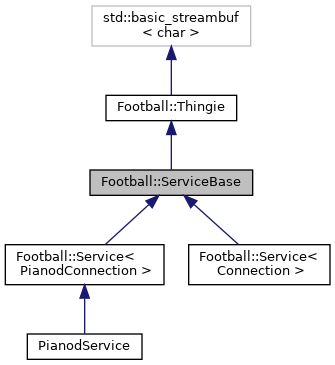

Inheritance diagram for Football::ServiceBase:

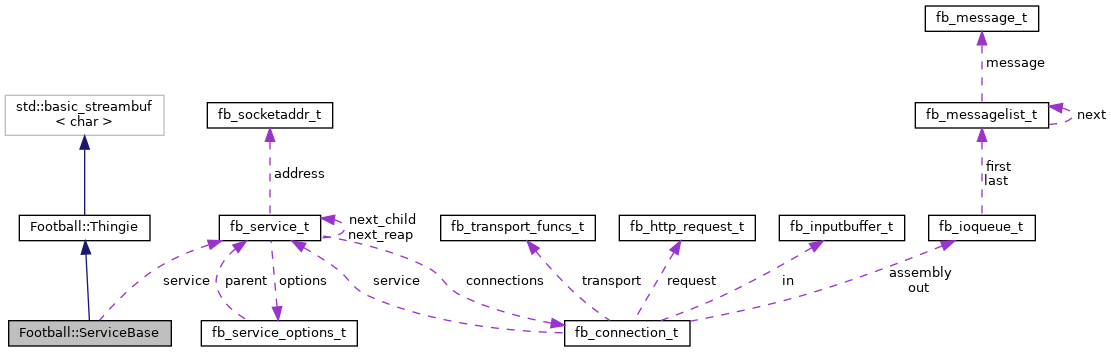

Collaboration diagram for Football::ServiceBase:

Public Member Functions
void	close (void)
	Initiate shutdown of a service. More...
Connection *	newConnectionFromFile (const std::string &filename)
	Create a new "connection" that reads from a file. More...
Connection *	newLoopbackConnection (int *loopback)
	Create a new connection that loops back to the service. More...
virtual ssize_t	conditional_print (bool(*callback)(FB_CONNECTION *), const std::string &message) override
virtual void	serviceShutdown (void)
	Invoked when a service is shutting down. More...
Public Member Functions inherited from Football::Thingie
virtual	~Thingie ()
ssize_t	print (const std::string &message)
	Add a string to the output queues. More...
ssize_t	conditional_broadcast (bool(*callback)(FB_CONNECTION *), const std::string &message)
	Send a message to some output queues depending on the callback function return value. More...
ssize_t	printf (const char *format,...)
	Add messages to output queues. More...
ssize_t	vprintf (const char *format, va_list parameters)
ssize_t	bprintf (const char *format,...)
ssize_t	bvprintf (const char *format, va_list parameters)
ssize_t	cbprintf (bool(*callback)(FB_CONNECTION *), const char *format,...)
ssize_t	cbvprintf (bool(*callback)(FB_CONNECTION *), const char *format, va_list parameters)
virtual std::streamsize	xsputn (const char_type *data, std::streamsize count) override
virtual int_type	overflow (int_type c) override

Protected Member Functions
virtual void *	myThingie (void) const final
	ServiceBase (FB_SERVICE_OPTIONS options, ServiceBase *parent=nullptr)
	Create a new service with requested options. More...
virtual	~ServiceBase () override
virtual Connection *	allocNewConnection ()=0

Static Protected Member Functions
static ServiceBase *	getFromOld (FB_SERVICE *service)

Protected Attributes
FB_SERVICE *	service
	Pointer to underlying Football service structure. More...

Friends
class	Iterator
class	Connection
class	Arena

Detailed Description

C++ Service wrapper Manages the service's connections.

Constructor & Destructor Documentation

ServiceBase()

Football::ServiceBase::ServiceBase ( FB_SERVICE_OPTIONS  options, ServiceBase *  parent = nullptr  )

protected

Create a new service with requested options.

Creates the underlying standard C stuff, and a C++ object that wraps it.

Parameters

options	The service options such as ports, behavior settings, etc.
parent	A parent service whose service port(s) the child will share.

See also

fb_create_service ()

Here is the call graph for this function:

~ServiceBase()

Football::ServiceBase::~ServiceBase ( )

overrideprotectedvirtual

Member Function Documentation

allocNewConnection()

virtual Connection* Football::ServiceBase::allocNewConnection ( )

protectedpure virtual

Implemented in Football::Service< Connection >, and Football::Service< PianodConnection >.

Here is the caller graph for this function:

close()

void Football::ServiceBase::close

(

void

)

Initiate shutdown of a service.

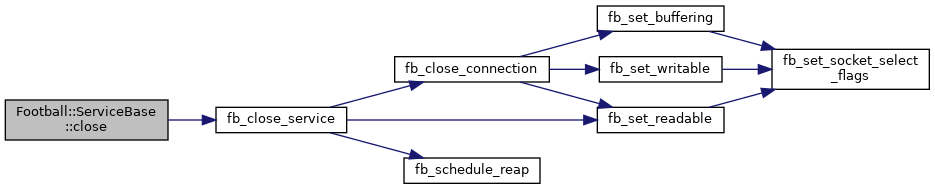

Here is the call graph for this function:

Here is the caller graph for this function:

conditional_print()

ssize_t Football::ServiceBase::conditional_print ( bool(*)(FB_CONNECTION *)  callback, const std::string &  message  )

overridevirtual

Implements Football::Thingie.

Here is the call graph for this function:

getFromOld()

ServiceBase * Football::ServiceBase::getFromOld ( FB_SERVICE *  service )

staticprotected

Retrieve a C++ service object from the old C-style service structure.

Parameters

service

The old standard C service structure.

Returns

The C++ service object.

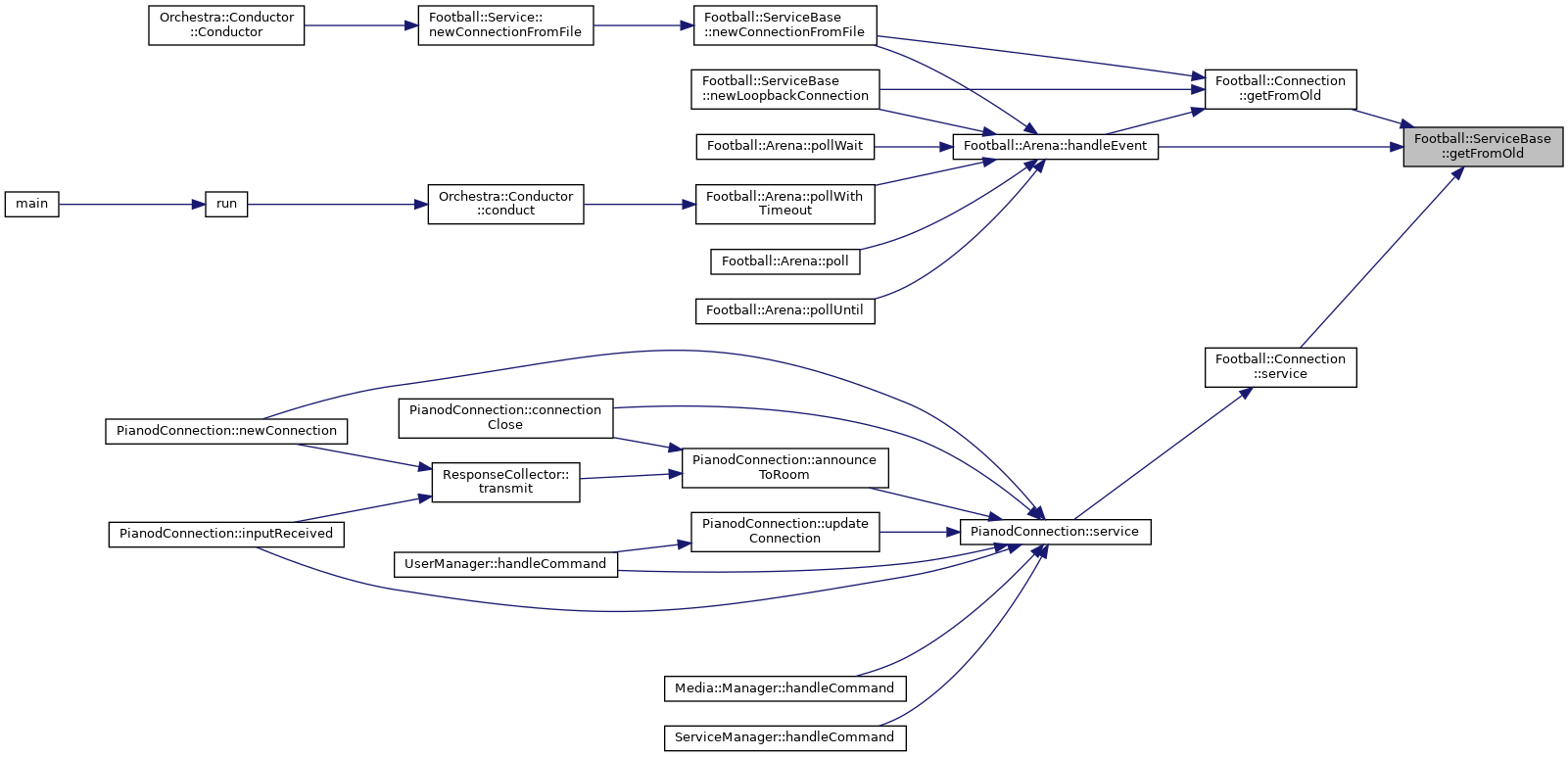

Here is the caller graph for this function:

myThingie()

virtual void* Football::ServiceBase::myThingie ( void  ) const

inlinefinalprotectedvirtual

Implements Football::Thingie.

Here is the caller graph for this function:

newConnectionFromFile()

Connection * Football::ServiceBase::newConnectionFromFile

(

const std::string &

filename

)

Create a new "connection" that reads from a file.

Replies to the connection are transparently disposed. An appropriate event is dispatched to the connection when created, but nothing is read from the file yet. The caller may adjust the context or privileges; reading is done by the Arena (service manager) poll routines.

Parameters

filename

The name of the file to read from.

Returns

An initialized Football::Connection, or NULL on error.

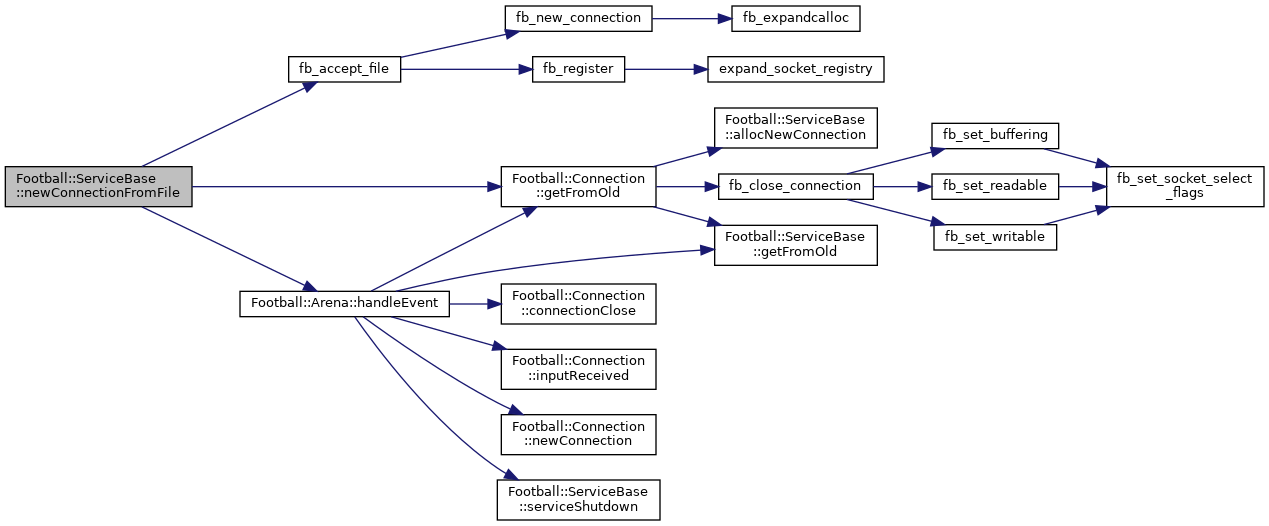

Here is the call graph for this function:

Here is the caller graph for this function:

newLoopbackConnection()

Connection * Football::ServiceBase::newLoopbackConnection

(

int *

loopback

)

Create a new connection that loops back to the service.

Bidirectional communication is supported. Replies to the connection are transparently disposed. An appropriate event is dispatched to the connection when created, but nothing is read from the file yet. The caller may adjust the context or privileges; reading is done by the Arena (service manager) poll routines.

Parameters

loopback

On return, set to the socket used for loopback.

Returns

A socket number, or -1 on error.

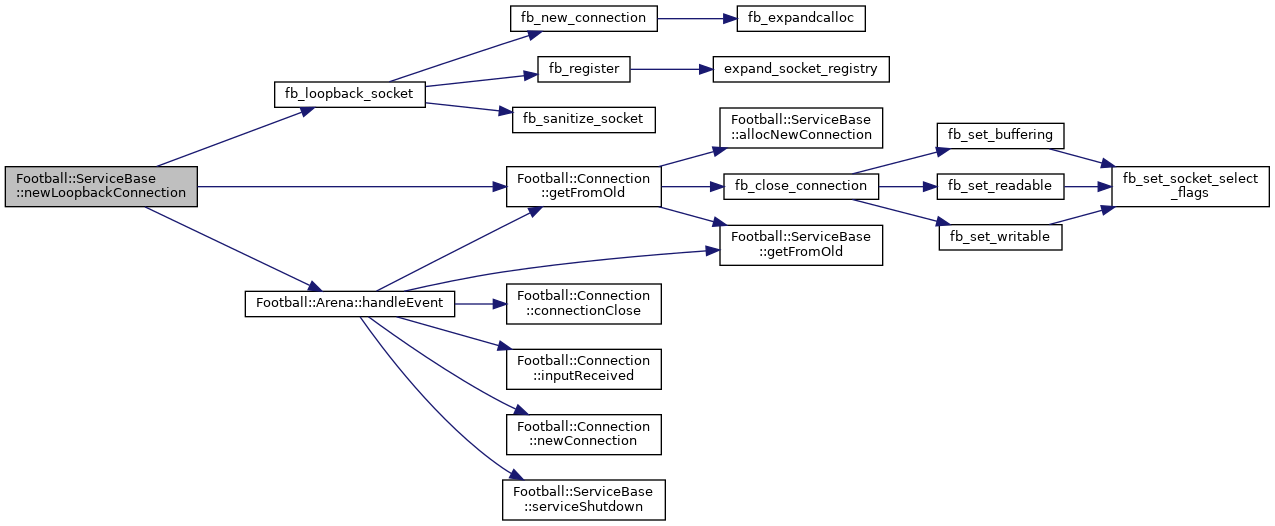

Here is the call graph for this function:

serviceShutdown()

void Football::ServiceBase::serviceShutdown ( void  )

virtual

Invoked when a service is shutting down.

Corresponds to FB_EVENT_STOPPED; by the time this is received, all connections have been closed.

Reimplemented in PianodService.

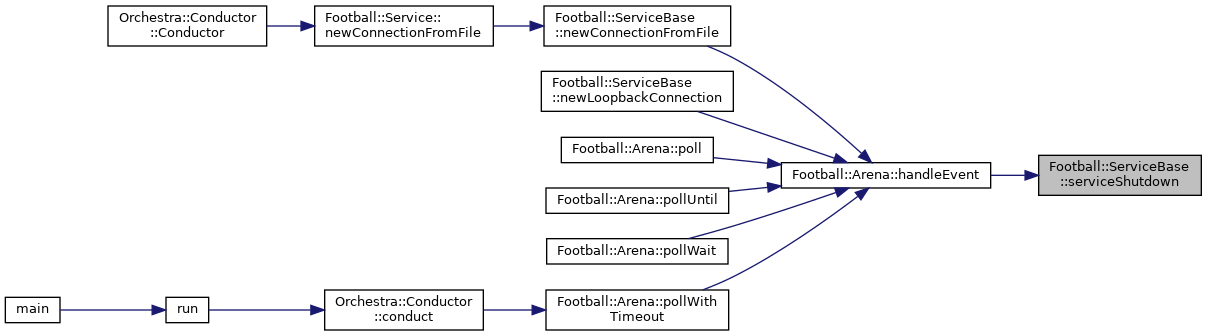

Here is the caller graph for this function:

Friends And Related Function Documentation

Arena

friend class Arena

friend

Connection

friend class Connection

friend

Iterator

friend class Iterator

friend

Member Data Documentation

service

FB_SERVICE* Football::ServiceBase::service

protected

Pointer to underlying Football service structure.

---

The documentation for this class was generated from the following files:

• football/football.h
• football/fb_servicepp.cpp
