fb_service.c File Reference

Football service and connection creation/destruction. More...

#include <config.h>
#include <stdio.h>
#include <errno.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <fcntl.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <assert.h>
#include "fb_transport.h"
#include "fb_service.h"

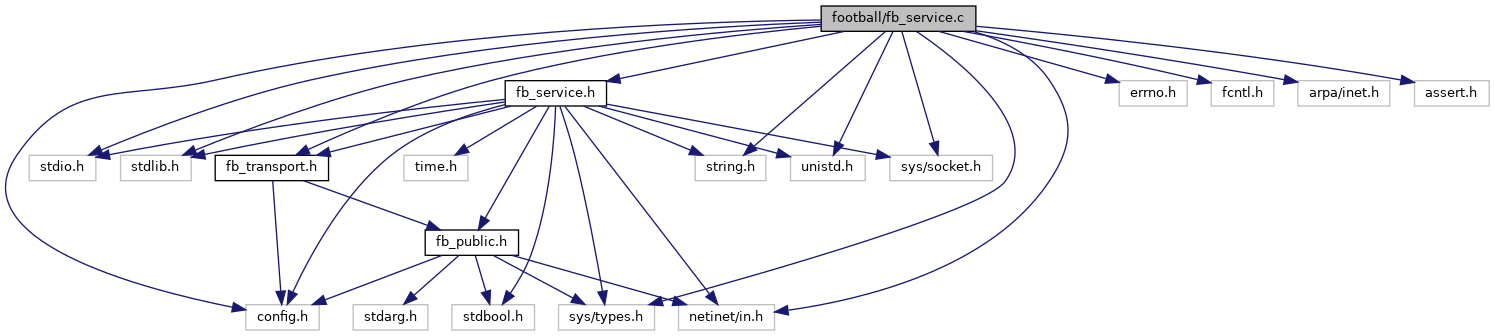

Include dependency graph for fb_service.c:

Macros
#define	_BSD_SOURCE   /* strdup, realpath */
#define	_DEFAULT_SOURCE

Functions
bool	fb_services_are_open (void)
	Indicate whether there are any services open. More...
static bool	fb_sanitize_socket (int socket)
static bool	fb_setup_socket (FB_SERVICE *service, FB_SOCKETID which)
FB_SERVICE *	fb_create_service (const FB_SERVICE_OPTIONS *options)
	Create a new service and initialize its listeners. More...
void	fb_destroy_service (FB_SERVICE *service)
void	fb_close_service (FB_SERVICE *service)
	Initiate closure of a service. More...
bool	fb_validate_connection (FB_SERVICE *service, FB_CONNECTION *connection)
	Validate connection with hosts_access. More...
static FB_CONNECTION *	fb_new_connection (FB_SERVICE *service)
FB_CONNECTION *	fb_accept_connection (FB_SERVICE *service, FB_SOCKETID id)
static void	fb_remove_connection_from_service (FB_SERVICE *service, FB_CONNECTION *connection)
bool	fb_transfer (FB_CONNECTION *connection, FB_SERVICE *service)
	Transfer a connection to a new service. More...
bool	fb_transfer_by_name (FB_CONNECTION *connection, const char *name)
void	fb_destroy_connection (FB_CONNECTION *connection)
void	fb_close_connection (FB_CONNECTION *connection)
	Initiate connection closure. More...
FB_EVENT *	fb_accept_file (FB_SERVICE *service, char *filename)
	Make a connection that reads from a file. More...
FB_EVENT *	fb_loopback_socket (FB_SERVICE *service)
	Make a connection with a pipe. More...
FB_ITERATOR *	fb_new_iterator (FB_SERVICE *service)
	Create a new iterator. More...
FB_EVENT *	fb_iterate_next (FB_ITERATOR *it)
	Get the next iteration. More...
void	fb_destroy_iterator (FB_ITERATOR *it)
	Destroy an iterator and release its resources. More...

Variables
static int	fb_open_service_count = 0

Detailed Description

Football service and connection creation/destruction.

• Football socket abstraction layer

  Author

  Perette Barella

  Date

  2012-03-03

  Copyright

  Copyright 2012-2021 Devious Fish. All rights reserved.

Macro Definition Documentation

_BSD_SOURCE

#define _BSD_SOURCE   /* strdup, realpath */

_DEFAULT_SOURCE

#define _DEFAULT_SOURCE

Function Documentation

fb_accept_connection()

FB_CONNECTION* fb_accept_connection	(	FB_SERVICE *	service,
		FB_SOCKETID	id
	)

Accept a connection.

Parameters

service	The service on which a connection is arriving.
id	Identifies the arrival socket (line, HTTP, TLS, IP4 vs IP6)

Returns

a pointer to a new connection, or NULL on failure.

Here is the call graph for this function:

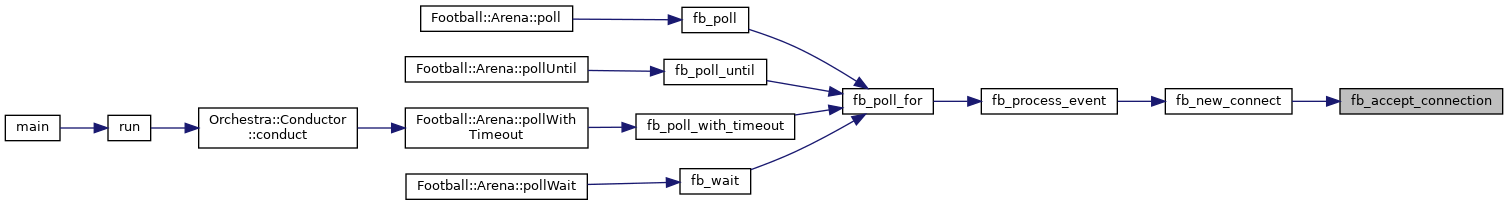

Here is the caller graph for this function:

fb_accept_file()

FB_EVENT* fb_accept_file	(	FB_SERVICE *	service,
		char *	filename
	)

Make a connection that reads from a file.

Parameters

service	the service to register the connection with
filename	the file to read from

Returns

a pointer to the connection, or NULL on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_close_connection()

void fb_close_connection

(

FB_CONNECTION *

connection

)

Initiate connection closure.

If the socket is in an open state, change its state and enable writes. The next write attempt will generate a close event. If the connection is already on its way out, leave it alone.

Parameters

connection

the connection to close

Here is the call graph for this function:

Here is the caller graph for this function:

fb_close_service()

void fb_close_service

(

FB_SERVICE *

service

)

Initiate closure of a service.

Returns

Nothing.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_create_service()

FB_SERVICE* fb_create_service

(

const FB_SERVICE_OPTIONS *

options

)

Create a new service and initialize its listeners.

Subsequent changes made to the options do not effect behavior.

Parameters

options

Options for the new service's behavior.

Returns

a pointer to the service, or NULL on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_destroy_connection()

void fb_destroy_connection

(

FB_CONNECTION *

connection

)

Close and destroy a connection.

Returns

Nothing.

Here is the call graph for this function:

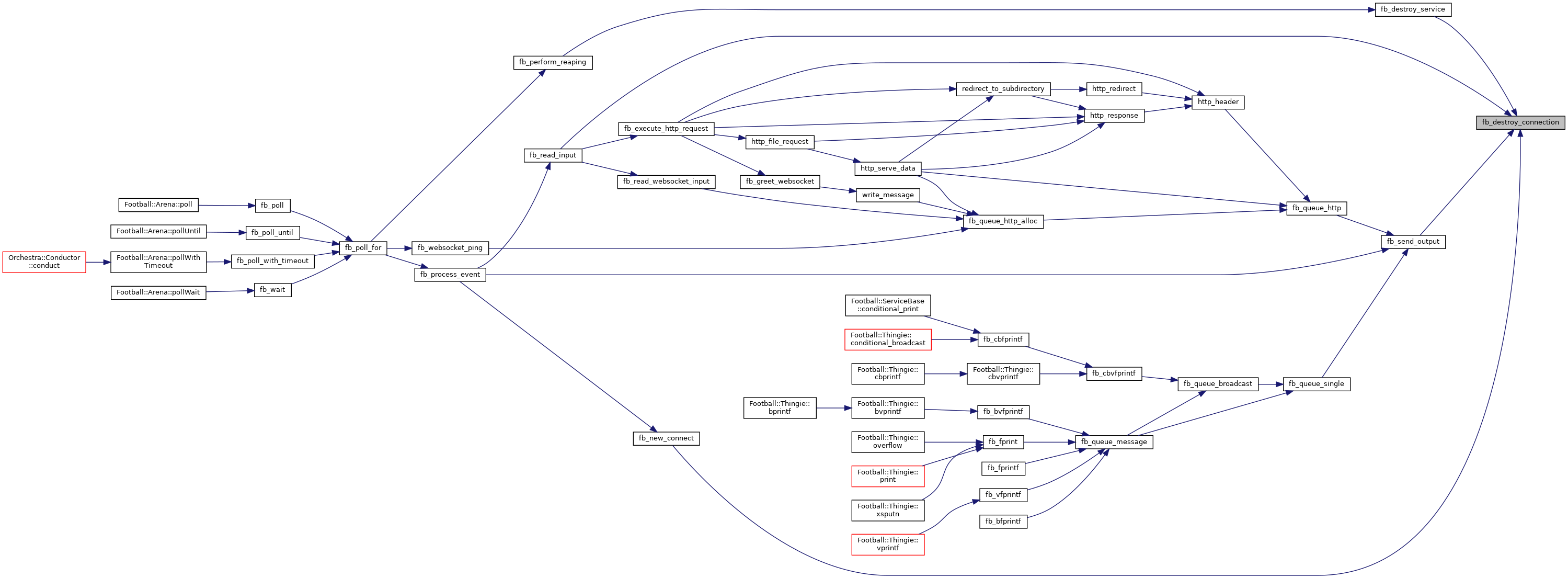

Here is the caller graph for this function:

fb_destroy_iterator()

void fb_destroy_iterator

(

FB_ITERATOR *

it

)

Destroy an iterator and release its resources.

Parameters

it	The iterator

fb_destroy_service()

void fb_destroy_service

(

FB_SERVICE *

service

)

Destroy a service's resources. Abruptly closes any remaining connections, frees them, closes listener sockets and frees service.

Parameters

service

the service to terminate.

Returns

Nothing.

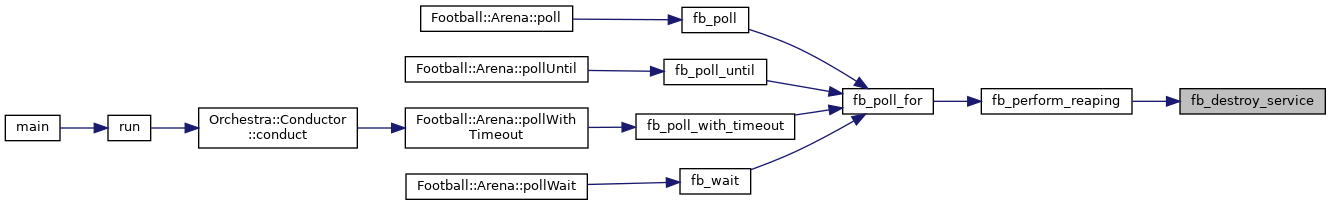

Here is the call graph for this function:

Here is the caller graph for this function:

fb_iterate_next()

FB_EVENT* fb_iterate_next

(

FB_ITERATOR *

it

)

Get the next iteration.

See also

FB_EVENTTYPE

Parameters

it	The iterator

Returns

An event, or NULL if there are no more connections.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_loopback_socket()

FB_EVENT* fb_loopback_socket

(

FB_SERVICE *

service

)

Make a connection with a pipe.

Parameters

service

the service to register the connection with

Returns

a pointer to the connection, or NULL on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_new_connection()

static FB_CONNECTION* fb_new_connection ( FB_SERVICE *  service )

static

Prepare a new connection. Make space in the service's connection array, allocate a connection and (if requested in service options) a user context. Any mutexing is expected to be handled by the caller.

Parameters

service

the service for the new connection.

Returns

a fully-allocated and zero-initialized FB_CONNECTION.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_new_iterator()

FB_ITERATOR* fb_new_iterator

(

FB_SERVICE *

service

)

Create a new iterator.

Create and initialize a new iterator for a service.

See also

fb_destroy_iterator().

Returns

an iterator or NULL on error.

fb_remove_connection_from_service()

static void fb_remove_connection_from_service ( FB_SERVICE *  service, FB_CONNECTION *  connection  )

static

Remove a connection from a service's connection list.

Parameters

service	The service to remove from.
connection	The connection to remove.

Here is the caller graph for this function:

fb_sanitize_socket()

static bool fb_sanitize_socket ( int  socket )

static

Set sane options on a socket after opening.

Parameters

socket

The socket to sanitize.

Returns

True on success, false on error.

Here is the caller graph for this function:

fb_services_are_open()

bool fb_services_are_open

(

void

)

Indicate whether there are any services open.

Returns

true if services exist, false otherwise.

Here is the caller graph for this function:

fb_setup_socket()

static bool fb_setup_socket ( FB_SERVICE *  service, FB_SOCKETID  which  )

static

Initialize and set up a listening socket.

Returns

true on success, false on failure

Here is the call graph for this function:

Here is the caller graph for this function:

fb_transfer()

bool fb_transfer	(	FB_CONNECTION *	connection,
		FB_SERVICE *	service
	)

Transfer a connection to a new service.

Parameters

connection	The connection to transfer.
service	The service to reassign it to.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_transfer_by_name()

bool fb_transfer_by_name	(	FB_CONNECTION *	connection,
		const char *	name
	)

Transfer a connection to a related service.

Parameters

connection	The connection to transfer.
name	The name of the service to reassign it to.

Here is the call graph for this function:

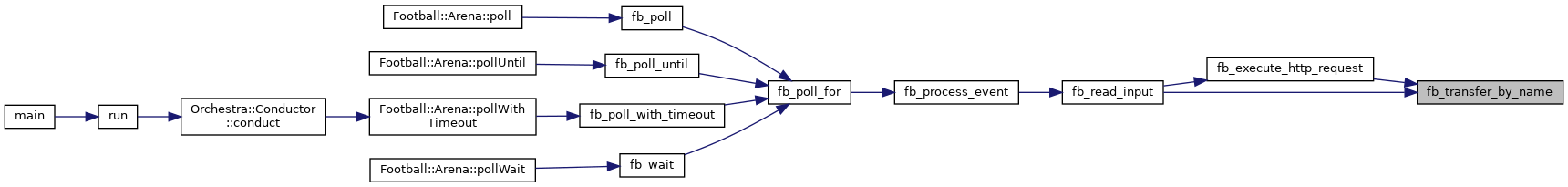

Here is the caller graph for this function:

fb_validate_connection()

bool fb_validate_connection	(	FB_SERVICE *	service,
		FB_CONNECTION *	connection
	)

Validate connection with hosts_access.

Parameters

service	The service on which the connection is arriving.
connection	The connection.

Returns

True if access is allowed, false if denied.

Here is the caller graph for this function:

Variable Documentation

fb_open_service_count

int fb_open_service_count = 0

static
