Football::Connection Class Reference

C++ Connection wrapper. More...

#include <football.h>

Inheritance diagram for Football::Connection:

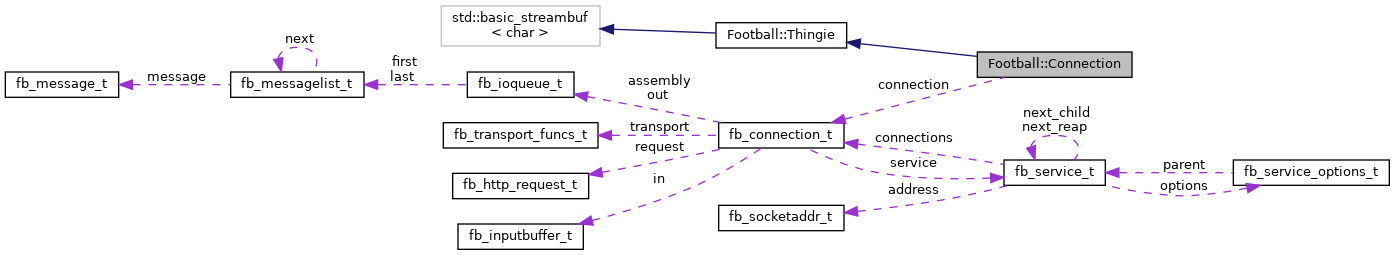

Collaboration diagram for Football::Connection:

Public Member Functions
ServiceBase *	service (void) const
	Get a connection's parent service. More...
virtual	~Connection () override
virtual ssize_t	conditional_print (bool(*callback)(FB_CONNECTION *), const std::string &message) override
	Send a message to some output queues depending on the callback function return value. More...
bool	transfer (ServiceBase *service, bool invokeNewConnectionHandler=false)
	Transfer a connection to another service. More...
void	close (void)
	Initiate connection closure. More...
void	acceptInput (bool mode)
	Control acceptance of input. More...
virtual void	newConnection (const FB_EVENT *event)
	Invoked when a new connection has arrived/greeted. More...
virtual void	connectionClose (const FB_EVENT *event)
	Invoked when a connection is closing. More...
virtual void	inputReceived (const FB_EVENT *event)
	Invoked when a completed message is received. More...
Public Member Functions inherited from Football::Thingie
virtual	~Thingie ()
ssize_t	print (const std::string &message)
	Add a string to the output queues. More...
ssize_t	conditional_broadcast (bool(*callback)(FB_CONNECTION *), const std::string &message)
	Send a message to some output queues depending on the callback function return value. More...
ssize_t	printf (const char *format,...)
	Add messages to output queues. More...
ssize_t	vprintf (const char *format, va_list parameters)
ssize_t	bprintf (const char *format,...)
ssize_t	bvprintf (const char *format, va_list parameters)
ssize_t	cbprintf (bool(*callback)(FB_CONNECTION *), const char *format,...)
ssize_t	cbvprintf (bool(*callback)(FB_CONNECTION *), const char *format, va_list parameters)
virtual std::streamsize	xsputn (const char_type *data, std::streamsize count) override
virtual int_type	overflow (int_type c) override

Static Protected Member Functions
static Connection *	tryGetFromOld (FB_CONNECTION *connection)

Private Member Functions
virtual void *	myThingie (void) const final
int	argvIndex (const char *itemname) const
void	setConnection (FB_CONNECTION *conn)

Static Private Member Functions
static Connection *	getFromOld (FB_CONNECTION *connection)

Private Attributes
FB_CONNECTION *	connection = nullptr
	Pointer to underlying Football connection. More...
int	argname_capacity = 0

Friends
class	Iterator
class	ServiceBase
class	Arena

Additional Inherited Members

Detailed Description

C++ Connection wrapper.

Constructor & Destructor Documentation

~Connection()

Football::Connection::~Connection ( )

overridevirtual

Member Function Documentation

acceptInput()

void Football::Connection::acceptInput

(

bool

mode

)

Control acceptance of input.

Parameters

mode	If true, enables input. If false, the connection is ignored; received input will be queued and received when input is again enabled.

Here is the call graph for this function:

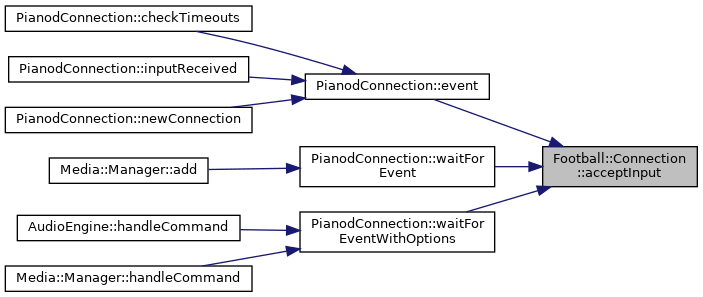

Here is the caller graph for this function:

argvIndex()

int Football::Connection::argvIndex ( const char *  itemname ) const

private

close()

void Football::Connection::close

(

void

)

Initiate connection closure.

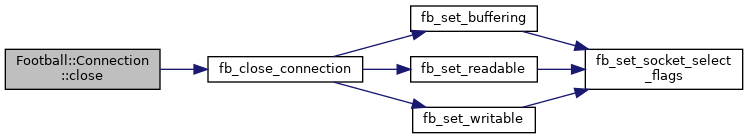

Here is the call graph for this function:

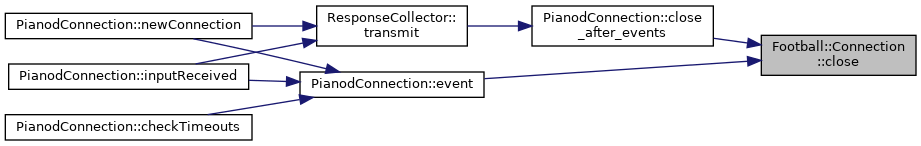

Here is the caller graph for this function:

conditional_print()

ssize_t Football::Connection::conditional_print ( bool(*)(FB_CONNECTION *)  callback, const std::string &  message  )

overridevirtual

Send a message to some output queues depending on the callback function return value.

Parameters

callback	A callback function accepting FB_CONNECTION * that returns true to broadcast to, false to skip.
message	The message to put on the output queue.

Implements Football::Thingie.

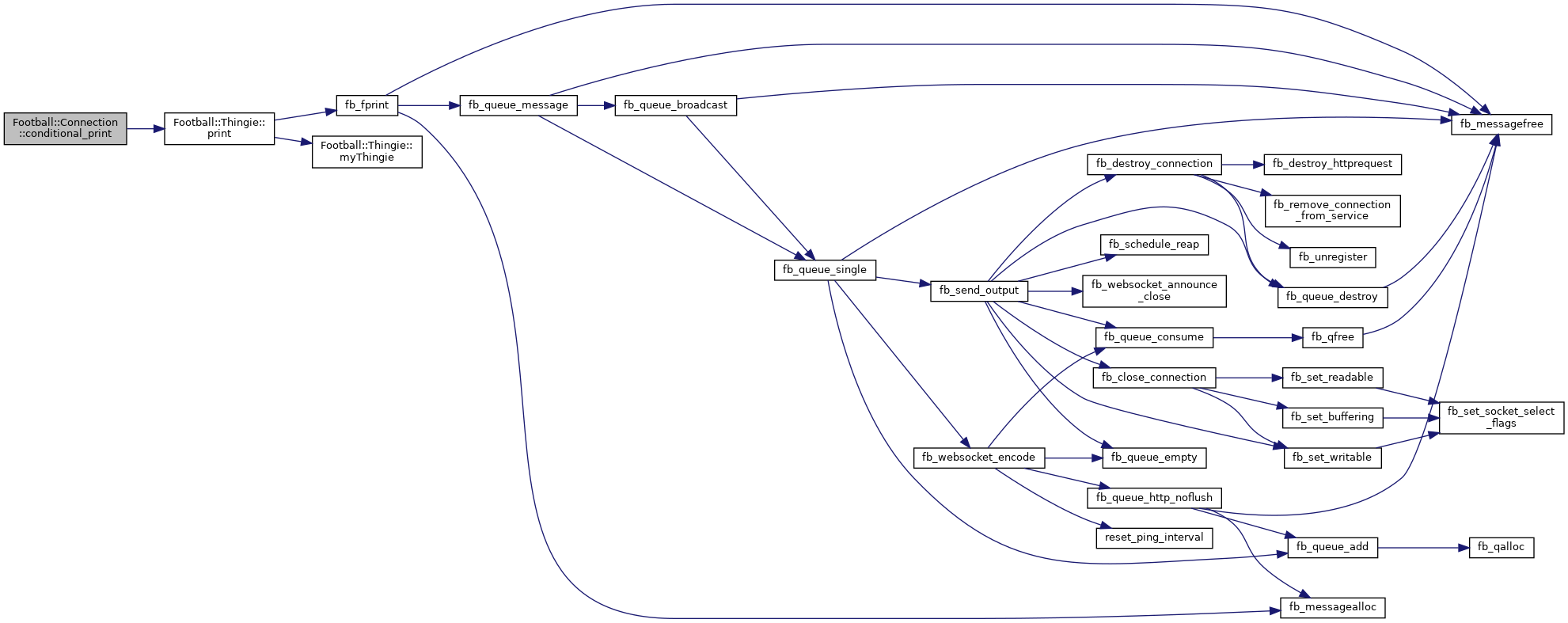

Here is the call graph for this function:

connectionClose()

void Football::Connection::connectionClose ( const FB_EVENT *  event )

virtual

Invoked when a connection is closing.

Corresponds to FB_EVENT_CLOSE event. This is the last notification/event for a connection before it closes.

Parameters

event

Closing connection details.

Reimplemented in PianodConnection.

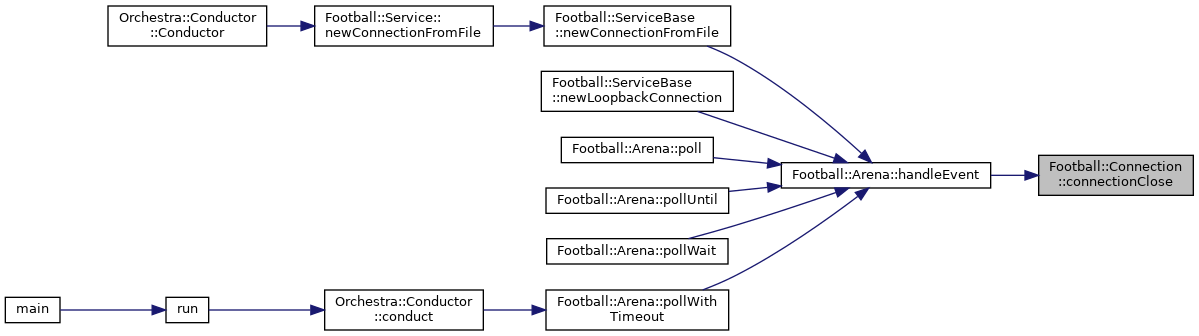

Here is the caller graph for this function:

getFromOld()

Connection * Football::Connection::getFromOld ( FB_CONNECTION *  connection )

staticprivate

Find the C++ connection object from the old-style C connection. If there isn't one yet, create it one.

Parameters

connection

The Football standard C connection structure.

Returns

The C++ connection object.

Here is the call graph for this function:

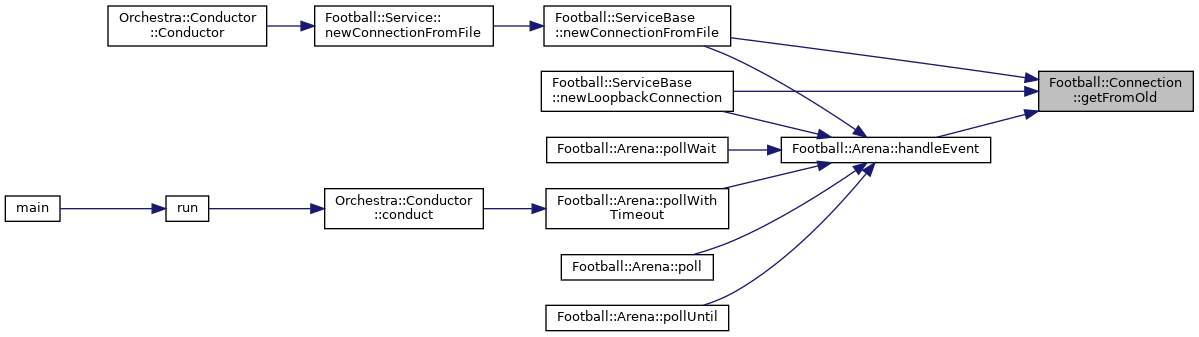

Here is the caller graph for this function:

inputReceived()

void Football::Connection::inputReceived ( const FB_EVENT *  event )

virtual

Invoked when a completed message is received.

Corresponds to FB_EVENT_INPUT event.

Parameters

event

Details of the message received.

Reimplemented in PianodConnection.

Here is the caller graph for this function:

myThingie()

virtual void* Football::Connection::myThingie ( void  ) const

inlinefinalprivatevirtual

Implements Football::Thingie.

newConnection()

void Football::Connection::newConnection ( const FB_EVENT *  event )

virtual

Invoked when a new connection has arrived/greeted.

Corresponds to FB_EVENT_CONNECT.

Parameters

event

The new connection details, or a nullptr for transferred connections.

Reimplemented in PianodConnection.

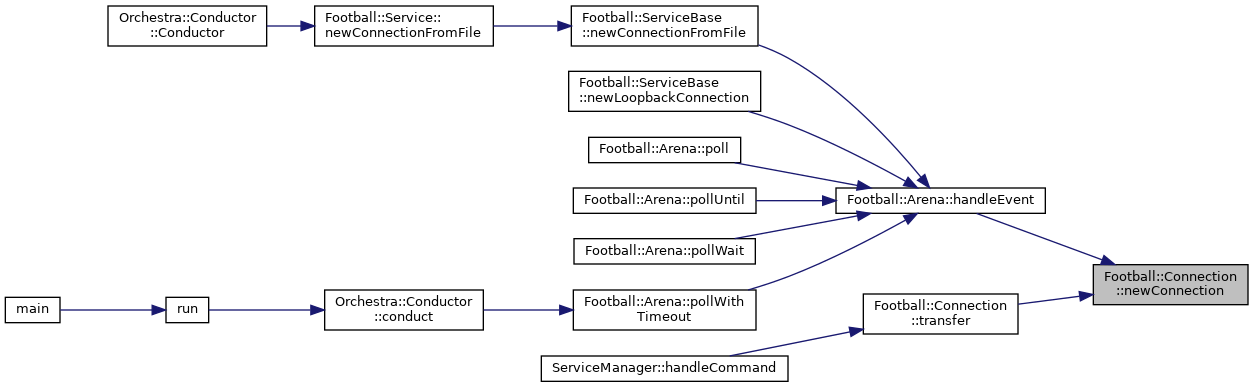

Here is the caller graph for this function:

service()

ServiceBase * Football::Connection::service

(

void

)

const

Get a connection's parent service.

Returns

The C++ service object for the connection.

Here is the call graph for this function:

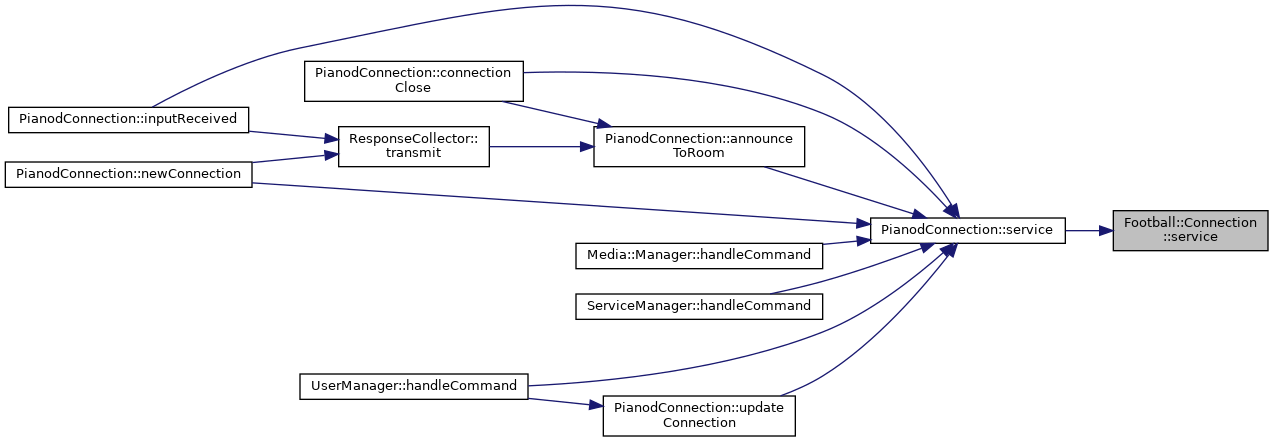

Here is the caller graph for this function:

setConnection()

void Football::Connection::setConnection ( FB_CONNECTION *  conn )

inlineprivate

transfer()

bool Football::Connection::transfer	(	ServiceBase *	newservice,
		bool	invokeNewConnectionHandler = false
	)

Transfer a connection to another service.

Parameters

newservice	The service to transfer to.
invokeNewConnectionHandler	If true, the newConnection handler is invoked with a nullptr.

Here is the call graph for this function:

Here is the caller graph for this function:

tryGetFromOld()

static Connection* Football::Connection::tryGetFromOld ( FB_CONNECTION *  connection )

inlinestaticprotected

Try to retrieve the C++ connection object from the old-style C connection.

Parameters

connection

The Football standard C connection structure.

Returns

The C++ connection object, or NULL if there is none.

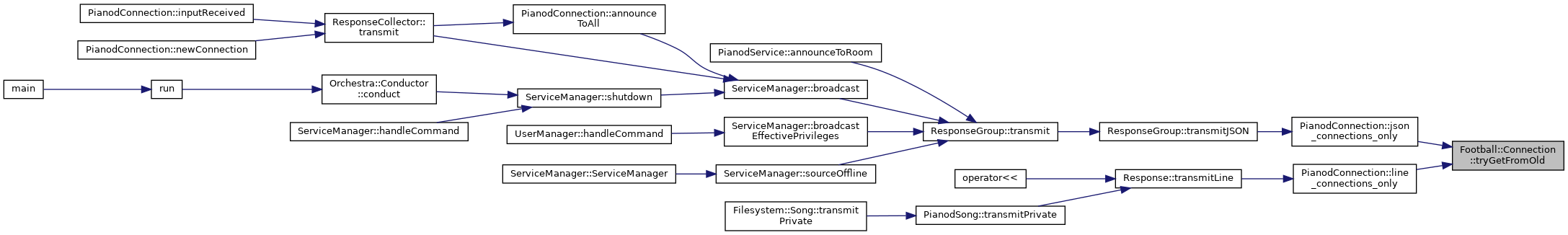

Here is the caller graph for this function:

Friends And Related Function Documentation

Arena

friend class Arena

friend

Iterator

friend class Iterator

friend

ServiceBase

friend class ServiceBase

friend

Member Data Documentation

argname_capacity

int Football::Connection::argname_capacity = 0

private

connection

FB_CONNECTION* Football::Connection::connection = nullptr

private

Pointer to underlying Football connection.

---

The documentation for this class was generated from the following files:

• football/football.h
• football/fb_connection.cpp
