Audio engine, responsible for one "room" worth of audio. More...

#include <engine.h>

Inheritance diagram for AudioEngine:

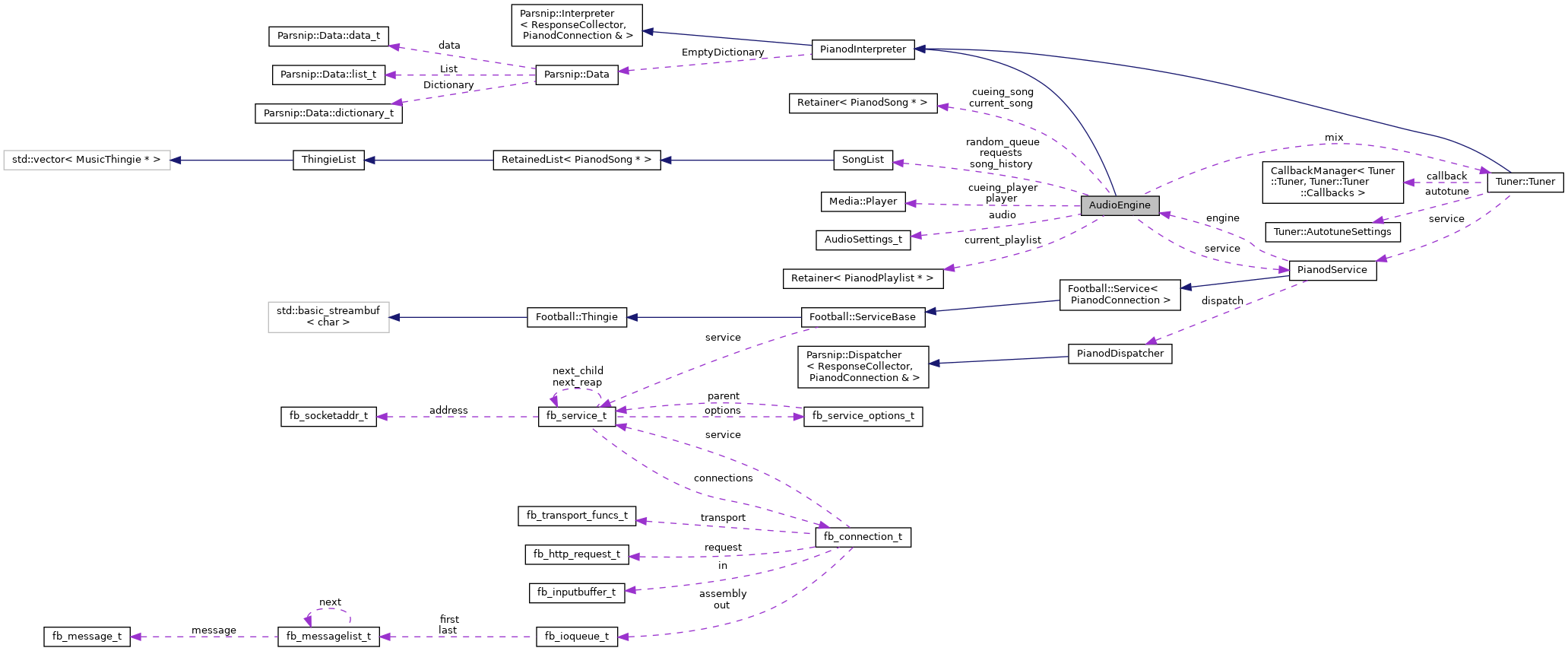

Collaboration diagram for AudioEngine:

[legend]

Public Member Functions

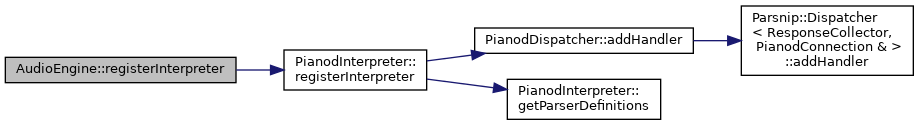

virtual void	registerInterpreter (PianodDispatcher &dispatcher) override
	Register the interpreter with a dispatcher. More...

virtual const Parsnip::Parser::Definitions &	getParserDefinitions () override
	Retrieve the parser definitions handled by the interpreter. More...

	AudioEngine (PianodService *svc, const AudioSettings &audio_options)
	Create a new audio player attached to a service with an assigned audio output device. More...

virtual	~AudioEngine (void)

void	shutdown (bool immediate)
	Initiate shutdown of the audio engine. More...

float	periodic (void)
	Periodically invoked function that monitors players, starts new songs, etc. More...

ResponseGroup	assembleStatus ()
	Should be called intermittently by the main run-loop. More...

ResponseGroup	updateStatus (PianodConnection &there)
	Update audio engine status to a client. More...

void	usersChangedNotification ()

UserList	getAutotuneUsers ()

const AudioSettings &	audioSettings ()

Public Member Functions inherited from PianodInterpreter
const HelpList	getHelp (const std::vector< std::string > &search, std::set< std::string > *option_parsers)
	Search the interpreter's definitions for any definitions matching search criteria. More...

Static Public Member Functions
static const Parsnip::OptionParser::Definitions &	playback_selection_option_definitions ()

static const Parsnip::Parser::Definitions &	parser_definitions ()

static const PianodSchema::CommandIds &	json_request_names ()
	Retrieve names for our JSON requests. More...

Static Public Member Functions inherited from PianodInterpreter
static bool	optionIs (const Parsnip::Data &options, const char name, const char expected)
	Check if a string value exists and is case-blind equal to a particular value. More...

template<typename ValueType , typename LookupType >
static ValueType	optionalValue (const Parsnip::Data &options, const char *name, const LookupType &lookup, const ValueType default_value)
	Retrieve the ID of a string value. More...

Private Types
enum	requirement_t { REQUIRE_SOURCE = 0x01 , REQUIRE_PLAYLIST = 0x02 , REQUIRE_PLAYER = 0x04 , REQUIRE_EXPAND = 0x10 }
	Prerequisites that may be necessary to execute a particular command. More...

enum class	PlaybackState { PAUSED , PLAYING }

enum class	TransitionProgress { Playing , Purged , Cueing , Crossfading , Done }
	States player progresses through when segueing between tracks. More...

enum class	QueueMode { STOPPED , REQUESTS , RANDOMPLAY }
	Behaviors possible when the player is idle. More...

enum class	Announced { NEVER , PARTIALLY , COMPLETELY }
	Whether and how completely track information was announced at start of playback. More...

typedef enum AudioEngine::requirement_t	REQUIREMENT
	Prerequisites that may be necessary to execute a particular command. More...

Private Member Functions
virtual bool	authorizedCommand (Parsnip::Parser::CommandId command, PianodConnection &conn) override
	Check whether a command is authorized. More...

virtual ResponseCollector	handleCommand (Parsnip::Parser::CommandId command, const Parsnip::Data &options, PianodConnection &conn) override
	Command handler. More...

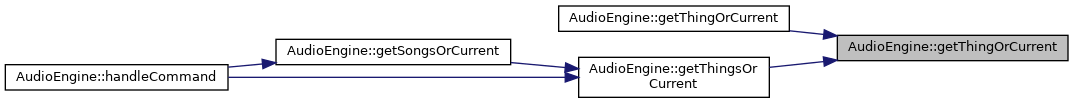

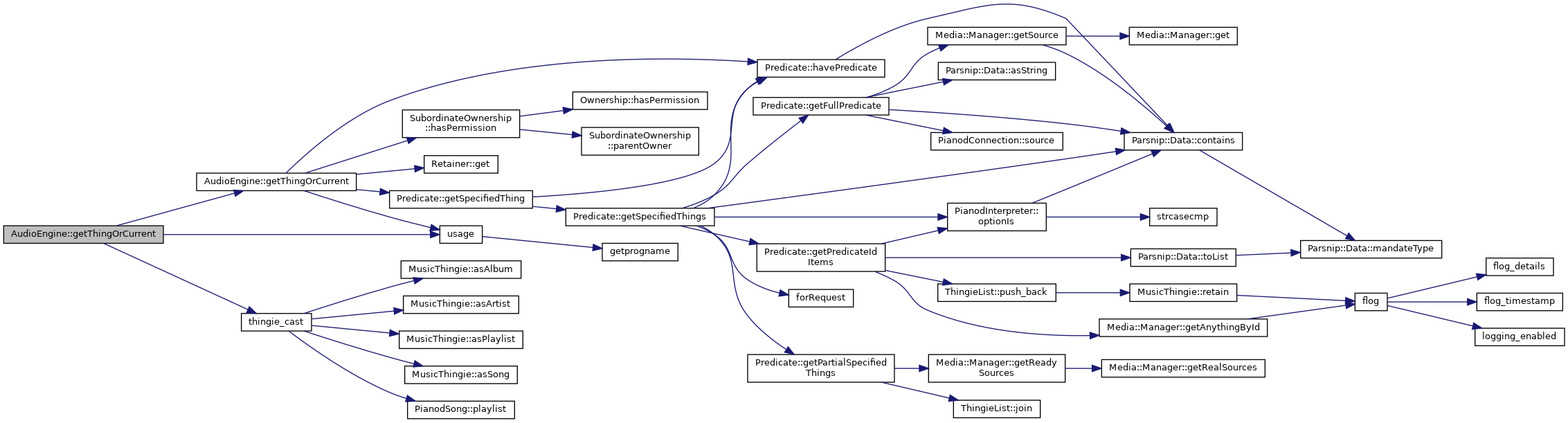

MusicThingie *	getThingOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, Ownership::Action usage=Ownership::Action::USE) const
	Get a thing from a predicate and ensure it is usable. More...

MusicThingie *	getThingOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, MusicThingie::Type want, Ownership::Action usage=Ownership::Action::USE) const
	Get a thing from a predicate, ensure usability and it conforms to a type. More...

ThingieList	getThingsOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, CommandReply *diagnostics, Ownership::Action usage=Ownership::Action::USE) const
	Get some things from a predicate and ensure they is usable. More...

ThingieList	getThingsOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, MusicThingie::Type want, CommandReply *diagnostics, Ownership::Action usage=Ownership::Action::USE) const
	Get things from a predicate, ensure usability and it conforms to a type. More...

SongList	getSongsOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, CommandReply *diagnostics, Ownership::Action usage=Ownership::Action::USE) const
	Get a songlist predicate, or use current song. More...

PianodPlaylist *	getPlaylistOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, Ownership::Action usage) const
	Get a playlist predicate, or use current playlist. More...

PlaylistList	getPlaylistsOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, CommandReply *diagnostics, Ownership::Action usage=Ownership::Action::USE) const
	Get a playlist predicate, or use current playlist. More...

PlaylistList	getPlaylistsOrCurrent (const PianodConnection &conn, const Parsnip::Data &options, CommandReply *diagnostics, Ownership::Action usage, const ThingieList &default_playlist) const
	Get a playlist predicate, or use one implied by a thing. More...

void	require (PianodConnection &conn, unsigned long requirements) const
	Check that required state/privileges are available. More...

CommandReply	controlPlayback (const Parsnip::Data &options, bool start_playback, PianodConnection &conn)

bool	queueEmpty (void) const

bool	startPlayer (void)
	Start playback of a the next song in the queue. More...

ResponseGroup	promotePlayer (void)
	Promote the cueing player to the primary player. *‍/. More...

ResponseGroup	cleanupPlayer (void)
	Clean up when a player completes. More...

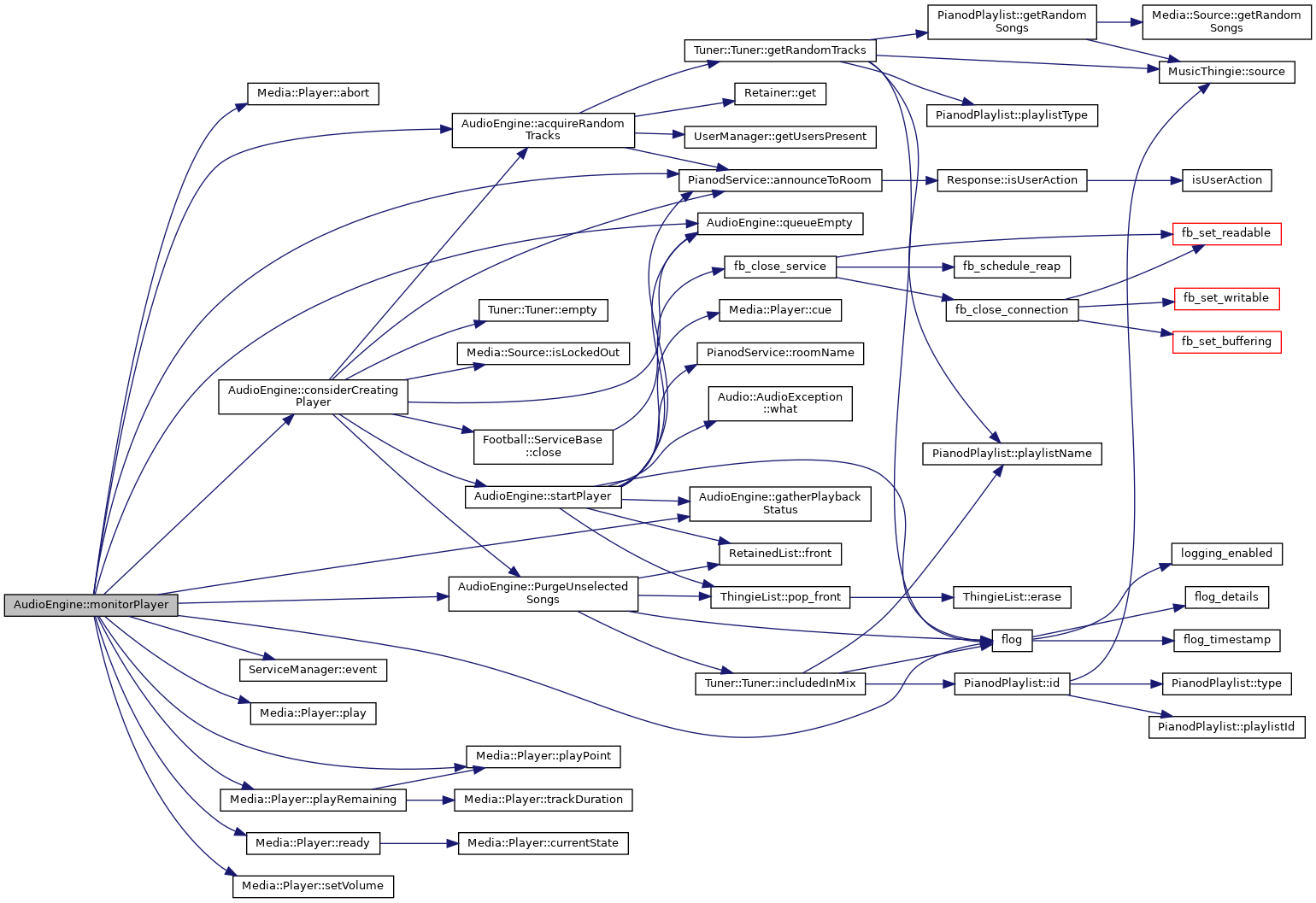

float	monitorPlayer (void)
	Check/respond to various things with the player. More...

ResponseGroup	playbackState (PlaybackState state, PianodConnection *conn=nullptr)
	Pause or resume playback. More...

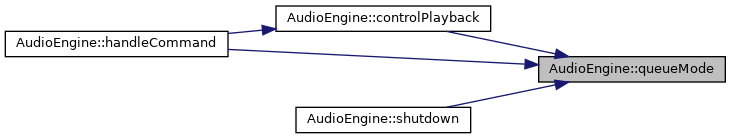

ResponseGroup	queueMode (QueueMode mode, PianodConnection *conn=nullptr)
	Set the queueing mode. More...

bool	gatherPlaybackStatus (ResponseGroup *response, bool only_if_accurate=false) const

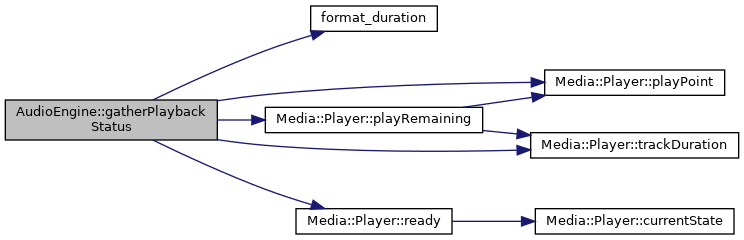

ResponseGroup	gatherPlaybackStatus () const

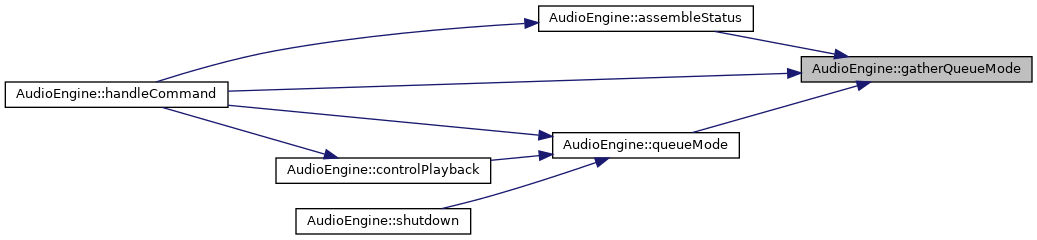

Response	gatherQueueMode () const

Response	gatherSelectedPlaylist () const

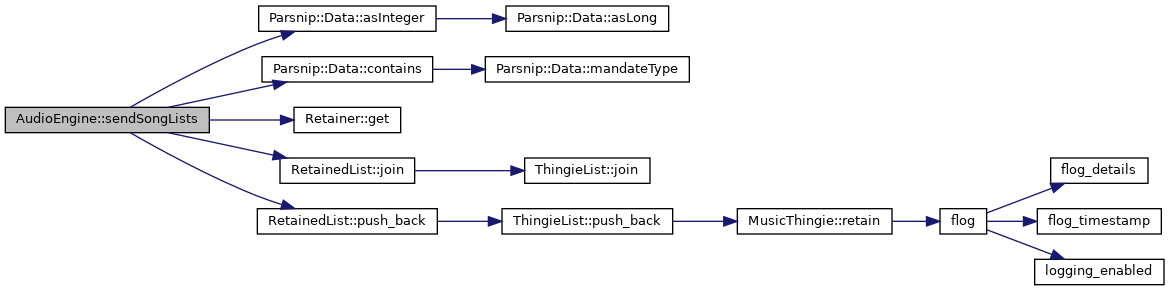

SongList	sendSongLists (PianodConnection &conn, const Parsnip::Data &options, bool historical)
	Generate response messages. More...

void	PurgeUnselectedSongs (void)
	Remove songs from the front of the random queue (but not songs from the request queue). More...

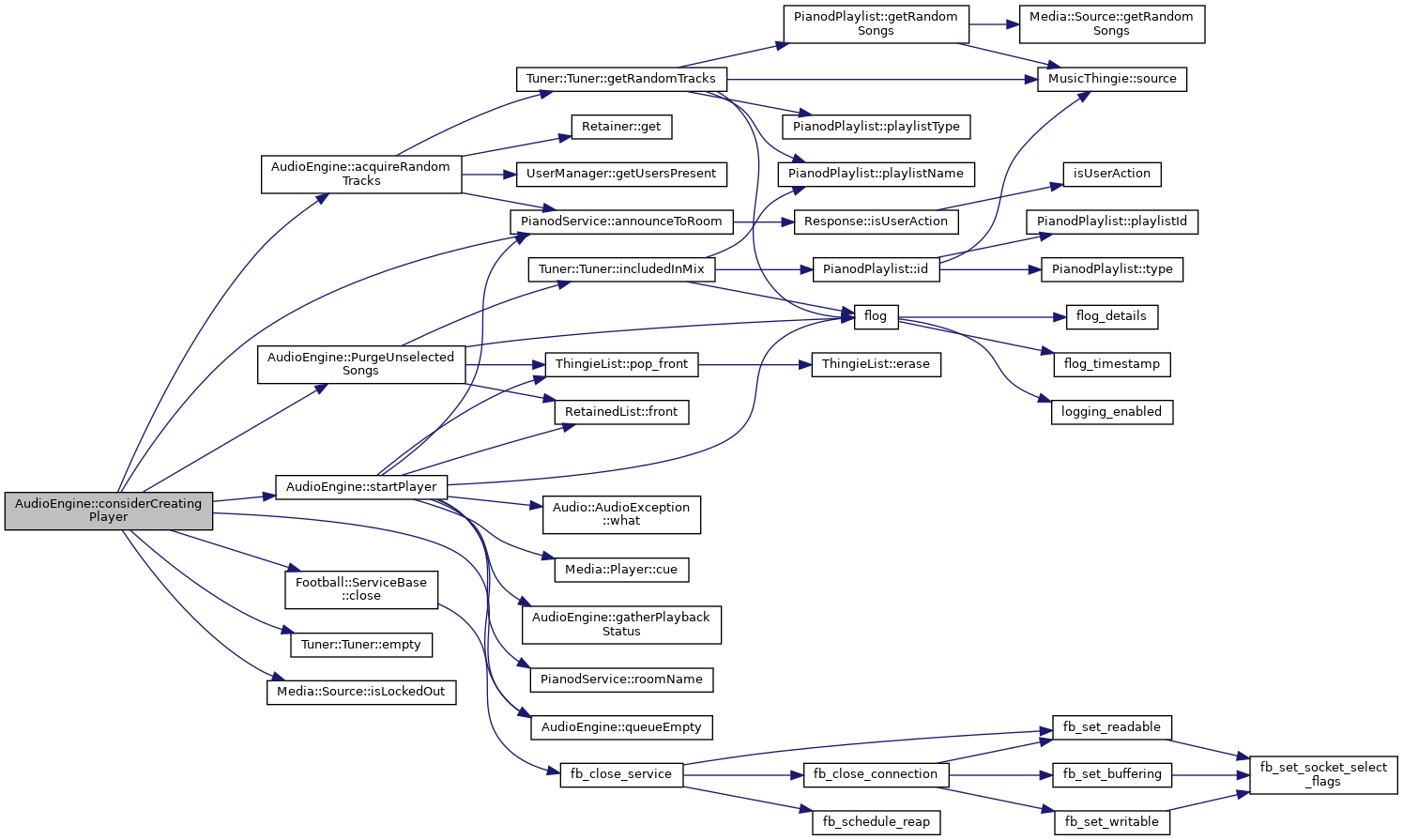

bool	considerCreatingPlayer (void)
	Create a player, if the current state allows it. More...

bool	acquireRandomTracks (void)
	Retrieves some random tracks and puts them in the queue. More...

void	sourceReady (const Media::Source *const)
	When a new source is ready, clear any track aquisition delays. More...

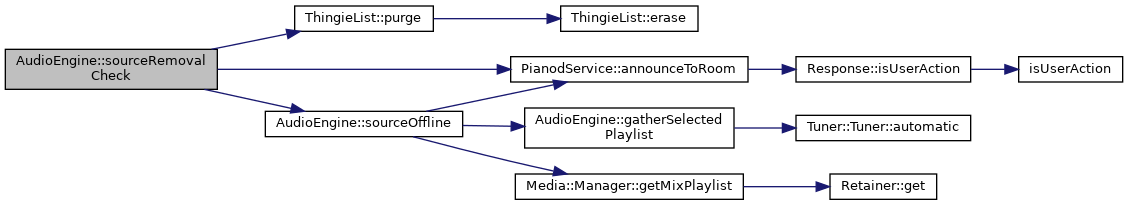

bool	sourceRemovalCheck (const Media::Source *const source)
	Remove all songs from a given source. More...

void	sourceRemoved (const Media::Source *const source)
	Unregister a source by removing its playlists. More...

void	sourceOffline (const Media::Source *const)
	Unregister a source by removing its playlists. More...

void	sourceStatus (RESPONSE_CODE status, const char *detail)
	Transmit any source status notifications to connected clients. More...

void	playlistsChanged ()
	When playlists have changed, reset track aquisition lockouts. More...

void	mixChanged (bool automatic, const char *why)
	When mix has changed, reset track aquisition lockouts. More...

Static Private Member Functions
static DataResponse	constructSeedlist (const ThingieList &things, PianodPlaylist *playlist)
	Prepare a list of seeds for transmission. More...

Private Attributes
struct {
time_t playback_effective_start = 0
	When not stalled, current time minus playback point. More...

time_t onset = 0
	Clock time at which a playback stall was detected. More...

time_t onset_playpoint = 0
	Playback point at which a playback stall was detected. More...

}	stall
	Structure used to track player progress/status. More...

const float	prefetch_time = 5
	Number of seconds before cuing at which queue is refreshed. More...

SongList::size_type	history_size = 10
	Maximum number of tracks retained in history. More...

volatile bool	quit_requested = false
	Flag for signal handlers to request shutdown. More...

bool	quit_initiated = false
	Flag set once a shutdown request has been initiated. More...

time_t	track_acquisition_time = 0
	The next time at which random track aquisition may be attempted. More...

PianodService *	service = nullptr

Retainer< PianodSong * >	current_song = nullptr

Retainer< PianodSong * >	cueing_song = nullptr

SongList	requests

SongList	random_queue

SongList	song_history

bool	lockout_announced = false

Retainer< PianodPlaylist * >	current_playlist = nullptr

Media::Player *	player = nullptr

Media::Player *	cueing_player = nullptr

TransitionProgress	transition_state = TransitionProgress::Playing

Announced	track_announced = Announced::NEVER

PlaybackState	playback_state = PlaybackState::PAUSED

QueueMode	queue_mode = QueueMode::STOPPED

time_t	pause_expiration = 0

signed long	abort_playpoint = 0
	Playpoint where crossfaded skip will abort, or 0 for not aborted. More...

bool	empty_warning_given = false

AudioSettings	audio

Tuner::Tuner	mix

Static Private Attributes
static const int	pause_timeout = 1800
	Pause timeout applied to all sources/songs. More...

static const int	aquire_tracks_retry = 600
	Retry period if unable to get random tracks. More...

Additional Inherited Members
Public Types inherited from PianodInterpreter
using	HelpList = PianodDispatcher::HelpList

Protected Types inherited from PianodInterpreter
using	StringVector = std::vector< std::string >

Static Protected Attributes inherited from PianodInterpreter
static const Parsnip::Data	EmptyDictionary {Parsnip::Data::Dictionary}
	An empty dictionary, often used as a default with Parsnip::Data::getOr. More...

static const StringVector	EmptyStringVector
	An empty string vector, often used as a default with Parsnip::Data::getOr. More...

Detailed Description

Audio engine, responsible for one "room" worth of audio.

Each audio engine has its own queue, selected playlist(s), and playback status.

Member Typedef Documentation

◆ REQUIREMENT

typedef enum AudioEngine::requirement_t AudioEngine::REQUIREMENT

private

Prerequisites that may be necessary to execute a particular command.

Member Enumeration Documentation

◆ Announced

enum AudioEngine::Announced

strongprivate

Whether and how completely track information was announced at start of playback.

Enumerator
NEVER
PARTIALLY
COMPLETELY

◆ PlaybackState

enum AudioEngine::PlaybackState

strongprivate

Enumerator
PAUSED
PLAYING

◆ QueueMode

enum AudioEngine::QueueMode

strongprivate

Behaviors possible when the player is idle.

Enumerator
STOPPED	Don't start playing anything.
REQUESTS	Play only requested songs.
RANDOMPLAY	Random selections from the current source if no requests.

◆ requirement_t

enum AudioEngine::requirement_t

private

Prerequisites that may be necessary to execute a particular command.

Enumerator
REQUIRE_SOURCE	Marks other flags as source-related.
REQUIRE_PLAYLIST	Marks other flags as playlist-related.
REQUIRE_PLAYER	Require an audio player exist.
REQUIRE_EXPAND	Require expand to song list capability.

◆ TransitionProgress

enum AudioEngine::TransitionProgress

strongprivate

States player progresses through when segueing between tracks.

Enumerator
Playing	the audio player is not transitioning
Purged	the queue has een purged in preparation for end-of-song
Cueing	a second audio player has been initialized and is initializing/prefetching.
Crossfading	the audio players are both playing as audio is cross-faded
Done	transition is done, but old song keeps right on going.

Constructor & Destructor Documentation

◆ AudioEngine()

AudioEngine::AudioEngine	(	PianodService *	svc,
		const AudioSettings &	audio_options
	)

Create a new audio player attached to a service with an assigned audio output device.

Parameters

svc	The Football service.
audio_options	The audio device settings.

Here is the call graph for this function:

◆ ~AudioEngine()

AudioEngine::~AudioEngine ( void )

virtual

Member Function Documentation

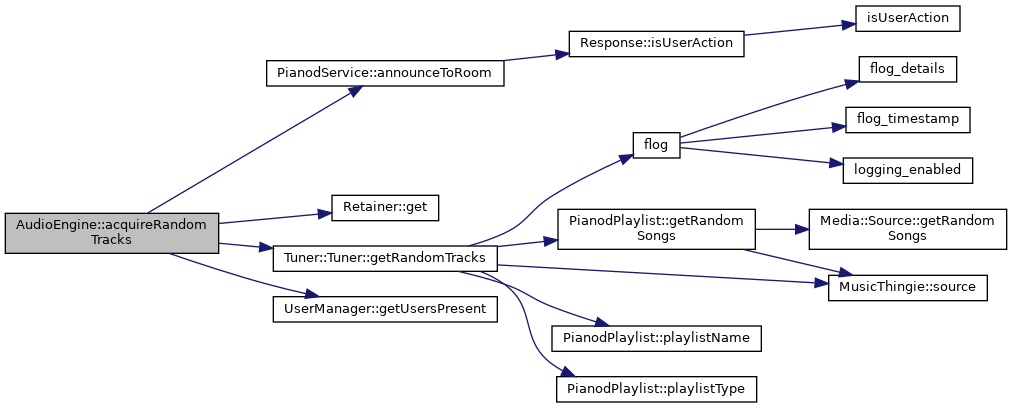

◆ acquireRandomTracks()

bool AudioEngine::acquireRandomTracks ( void )

private

Retrieves some random tracks and puts them in the queue.

Returns: True on success, false otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assembleStatus()

ResponseGroup AudioEngine::assembleStatus ( )

Should be called intermittently by the main run-loop.

Send audio engine status to a client.

Used on login.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ audioSettings()

const AudioSettings& AudioEngine::audioSettings ( )

inline

◆ authorizedCommand()

bool AudioEngine::authorizedCommand	(	Parsnip::Parser::CommandId	command_id,
		PianodConnection &	context
	)

overrideprivatevirtual

Check whether a command is authorized.

Parameters

command_id	The command requesting execution.
context	Connection details, including authentication state and privileges.

Returns: True if allowed, false otherwise.

Implements PianodInterpreter.

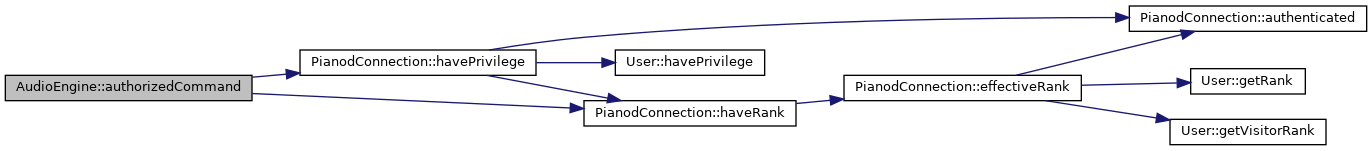

Here is the call graph for this function:

◆ cleanupPlayer()

ResponseGroup AudioEngine::cleanupPlayer ( void )

private

Clean up when a player completes.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ considerCreatingPlayer()

bool AudioEngine::considerCreatingPlayer ( void )

private

Create a player, if the current state allows it.

If there is nothing queued, and in random mode, get some random tracks.

Returns: True on success (no player needed or player created), false on player creation error.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ constructSeedlist()

DataResponse AudioEngine::constructSeedlist	(	const ThingieList &	things,
		PianodPlaylist *	playlist
	)

staticprivate

Prepare a list of seeds for transmission.

Parameters

things	The seeds.
playlist	The playlist to which the seeds belong.

Returns: A data response including the seeds.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ controlPlayback()

CommandReply AudioEngine::controlPlayback	(	const Parsnip::Data &	options,
		bool	start_playback,
		PianodConnection &	conn
	)

private

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gatherPlaybackStatus() [1/2]

ResponseGroup AudioEngine::gatherPlaybackStatus ( ) const

private

Here is the caller graph for this function:

◆ gatherPlaybackStatus() [2/2]

bool AudioEngine::gatherPlaybackStatus	(	ResponseGroup *	response,
		bool	only_if_accurate = `false`
	)		const

private

Here is the call graph for this function:

◆ gatherQueueMode()

Response AudioEngine::gatherQueueMode ( ) const

private

Here is the caller graph for this function:

◆ gatherSelectedPlaylist()

Response AudioEngine::gatherSelectedPlaylist ( ) const

private

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getAutotuneUsers()

UserList AudioEngine::getAutotuneUsers ( )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getParserDefinitions()

const Parsnip::Parser::Definitions & AudioEngine::getParserDefinitions ( )

overridevirtual

Retrieve the parser definitions handled by the interpreter.

Returns: Parser definitions.

Implements PianodInterpreter.

Here is the call graph for this function:

◆ getPlaylistOrCurrent()

PianodPlaylist * AudioEngine::getPlaylistOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		Ownership::Action	usage
	)		const

private

Get a playlist predicate, or use current playlist.

Parameters

conn	The connection requesting the things.
options	Predicate details from the command line.
usage	The manner in which the object is to be accessed.

Returns: The things; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPlaylistsOrCurrent() [1/2]

PlaylistList AudioEngine::getPlaylistsOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		CommandReply *	diagnostics,
		Ownership::Action	usage,
		const ThingieList &	default_playlist
	)		const

private

Get a playlist predicate, or use one implied by a thing.

Parameters

conn	The connection requesting the things.
options	Predicate details from the command line.
diagnostics	Status aggregator for problems encountered.
usage	The manner in which the object is to be accessed.
default_playlist	A list of songs, from which playlist will be taken (all must have the same playlist).

Returns: The things; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

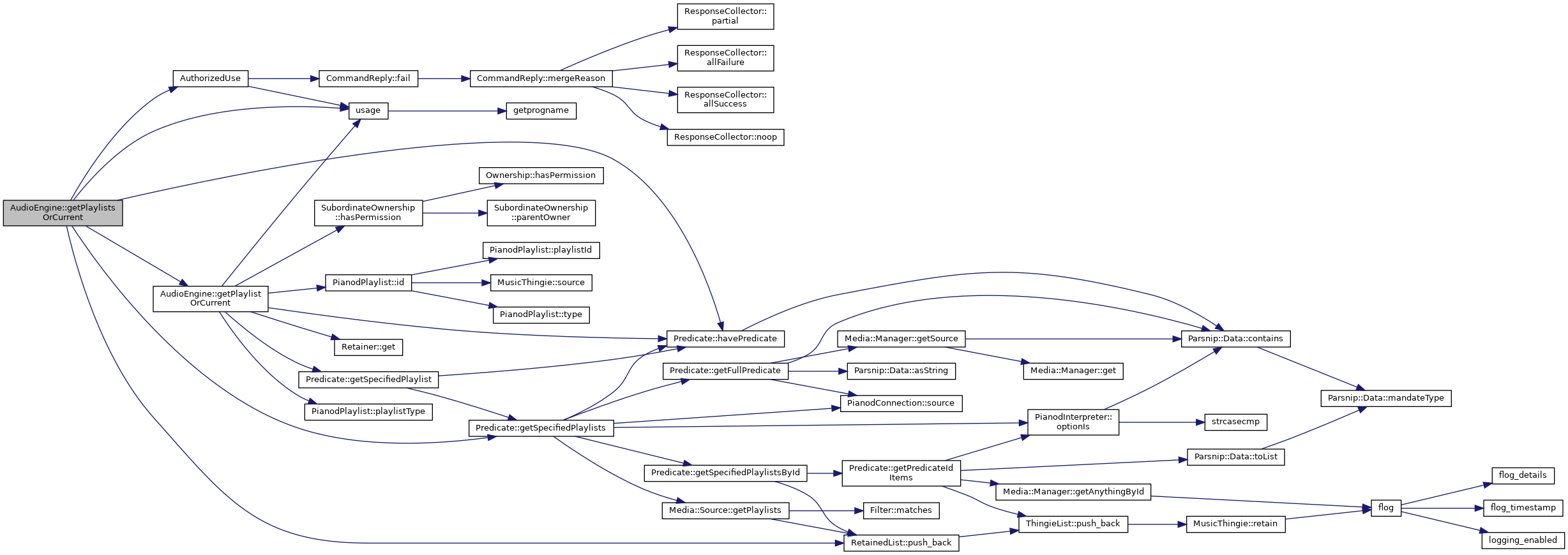

Here is the call graph for this function:

◆ getPlaylistsOrCurrent() [2/2]

PlaylistList AudioEngine::getPlaylistsOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		CommandReply *	diagnostics,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get a playlist predicate, or use current playlist.

Parameters

conn	The connection requesting the things.
options	Predicate details from the command line.
diagnostics	Status aggregator for problems encountered.
usage	The manner in which the object is to be accessed.

Returns: The things; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSongsOrCurrent()

SongList AudioEngine::getSongsOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		CommandReply *	diagnostics,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get a songlist predicate, or use current song.

Parameters

conn	The connection requesting the songs.
options	Predicate details from the command line.
diagnostics	Status aggregator for problems encountered.
usage	The manner in which the object is to be accessed.

Returns: The songs; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getThingOrCurrent() [1/2]

MusicThingie * AudioEngine::getThingOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		MusicThingie::Type	want,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get a thing from a predicate, ensure usability and it conforms to a type.

Parameters

conn	The connection requesting the items.
options	Predicate details from the command line.
want	Indicates the type of thing wanted.
usage	The manner in which the object is to be accessed.

Returns: The thing

Exceptions

CommandError on invalid request, not found, or insufficient privileges.

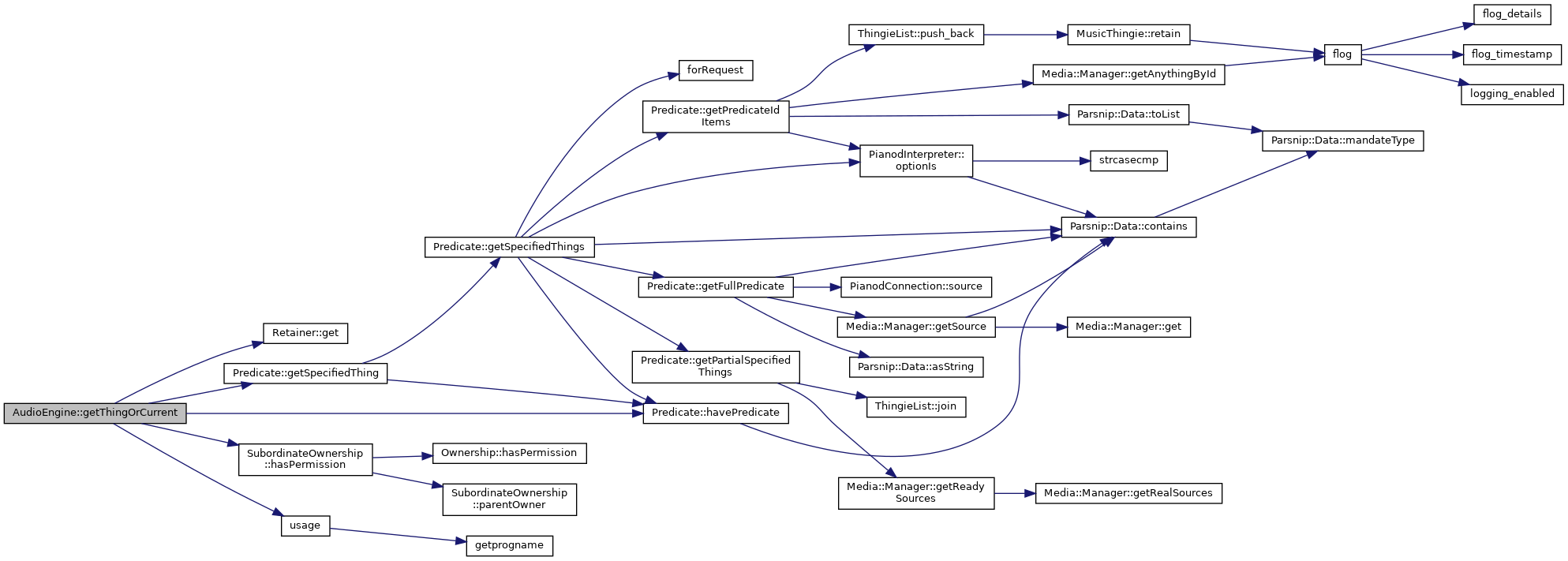

Here is the call graph for this function:

◆ getThingOrCurrent() [2/2]

MusicThingie * AudioEngine::getThingOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get a thing from a predicate and ensure it is usable.

Parameters

conn	The connection requesting the items.
options	Predicate details from the command line.
usage	The manner in which the object is to be accessed.

Returns: The thing

Exceptions

CommandError on invalid request, not found, or insufficient privileges.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getThingsOrCurrent() [1/2]

ThingieList AudioEngine::getThingsOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		CommandReply *	diagnostics,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get some things from a predicate and ensure they is usable.

Parameters

conn	The connection requesting the things.
options	Predicate details from the command line.
diagnostics	Status aggregator for problems encountered.
usage	The manner in which the object is to be accessed.

Returns: The things; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getThingsOrCurrent() [2/2]

ThingieList AudioEngine::getThingsOrCurrent	(	const PianodConnection &	conn,
		const Parsnip::Data &	options,
		MusicThingie::Type	want,
		CommandReply *	diagnostics,
		Ownership::Action	usage = `Ownership::Action::USE`
	)		const

private

Get things from a predicate, ensure usability and it conforms to a type.

Parameters

conn	The connection requesting the things.
options	Predicate details from the command line.
want	Indicates the type of thing wanted.
diagnostics	Status aggregator for problems encountered.
usage	The manner in which the object is to be accessed.

Returns: The things; may be the empty set.

Exceptions

CommandError on invalid request, not found, or insufficient privileges for a single-item predicate.

Here is the call graph for this function:

◆ handleCommand()

ResponseCollector AudioEngine::handleCommand	(	Parsnip::Parser::CommandId	command_id,
		const Parsnip::Data &	parameters,
		PianodConnection &	context
	)

overrideprivatevirtual

Command handler.

Parameters

command_id	Command to execute.
parameters	Command parameters.
context	Connection details, including authentication state and privileges.

Returns: Data or success/failure indications.

Exceptions

CommandError or other exception if an error occurs.

Implements PianodInterpreter.

◆ json_request_names()

const PianodSchema::CommandIds & AudioEngine::json_request_names ( )

static

Retrieve names for our JSON requests.

Returns: Request name to command ID mappings.

Here is the caller graph for this function:

◆ mixChanged()

void AudioEngine::mixChanged	(	bool	automatic,
		const char *	why
	)

private

When mix has changed, reset track aquisition lockouts.

Here is the caller graph for this function:

◆ monitorPlayer()

float AudioEngine::monitorPlayer ( void )

private

Check/respond to various things with the player.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_definitions()

const Parsnip::Parser::Definitions & AudioEngine::parser_definitions ( void )

static

Play/select music, queue mode, playback

Here is the caller graph for this function:

◆ periodic()

float AudioEngine::periodic ( void )

Periodically invoked function that monitors players, starts new songs, etc.

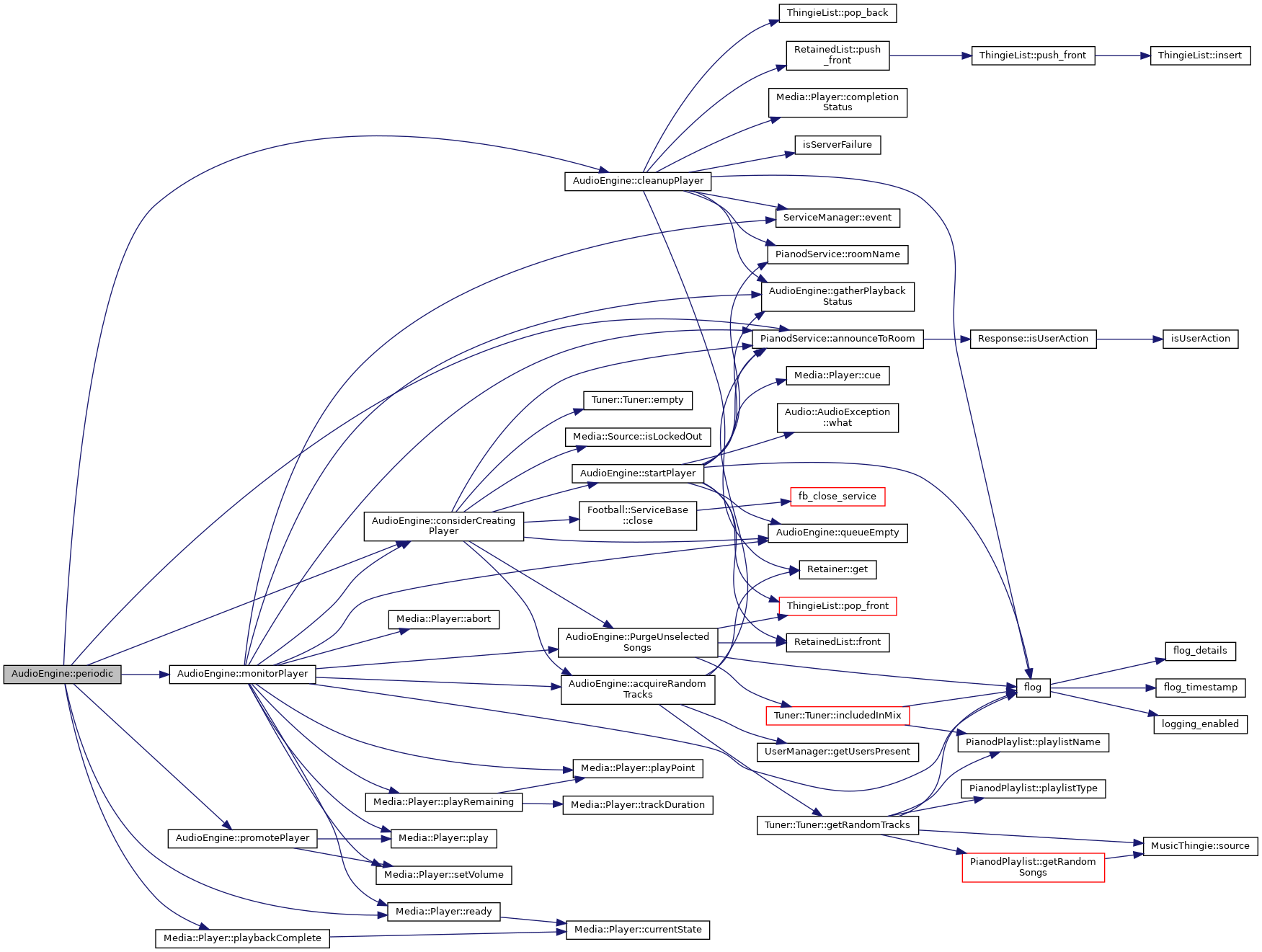

Here is the call graph for this function:

◆ playback_selection_option_definitions()

const Parsnip::OptionParser::Definitions & AudioEngine::playback_selection_option_definitions ( )

static

Parse definitions for playback control

Here is the caller graph for this function:

◆ playbackState()

ResponseGroup AudioEngine::playbackState	(	PlaybackState	state,
		PianodConnection *	conn = `nullptr`
	)

private

Pause or resume playback.

Parameters

state	Indicates whether to play or pause.
conn	Connection requesting change, or nullptr.

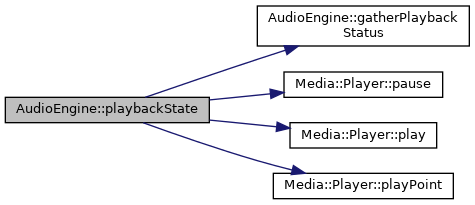

Here is the call graph for this function:

Here is the caller graph for this function:

◆ playlistsChanged()

void AudioEngine::playlistsChanged ( )

private

When playlists have changed, reset track aquisition lockouts.

Here is the caller graph for this function:

◆ promotePlayer()

ResponseGroup AudioEngine::promotePlayer ( void )

private

Promote the cueing player to the primary player. *‍/.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PurgeUnselectedSongs()

void AudioEngine::PurgeUnselectedSongs ( void )

private

Remove songs from the front of the random queue (but not songs from the request queue).

Reasons songs may be removed:

The mix or selected playlist has changed, and it no longer applies.
The song has expired.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ queueEmpty()

bool AudioEngine::queueEmpty ( void ) const

inlineprivate

Here is the caller graph for this function:

◆ queueMode()

ResponseGroup AudioEngine::queueMode	(	QueueMode	mode,
		PianodConnection *	conn = `nullptr`
	)

private

Set the queueing mode.

Parameters

mode	Indicates stopped, requests only, or random play.
conn	Connection requesting change, or nullptr.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ registerInterpreter()

void AudioEngine::registerInterpreter ( PianodDispatcher & dispatcher )

overridevirtual

Register the interpreter with a dispatcher.

Parameters

dispatcher The dispatcher with which to register.

Reimplemented from PianodInterpreter.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ require()

void AudioEngine::require	(	PianodConnection &	conn,
		unsigned long	requirements
	)		const

private

Check that required state/privileges are available.

Exceptions

CommandError if requirements are not met.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sendSongLists()

SongList AudioEngine::sendSongLists	(	PianodConnection &	conn,
		const Parsnip::Data &	options,
		bool	historical
	)

private

Generate response messages.

Send the queue or history.

Allow negative indexes from either to refer to the other; 0 refers to current track. This makes implementing paging on clients easier because it won't have to use separate commands.

Parameters

conn	The connection to which the list is being sent.
options	Predicate details from the command line.
historical	If true, looks toward history; if false, toward future.

Here is the call graph for this function:

Here is the caller graph for this function:

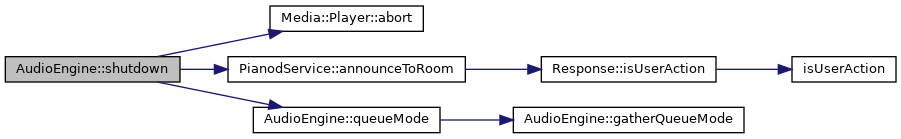

◆ shutdown()

void AudioEngine::shutdown ( bool immediate )

Initiate shutdown of the audio engine.

Parameters

immediate If true, aborts playback. If false, allows playback to complete before shutdown.

Here is the call graph for this function:

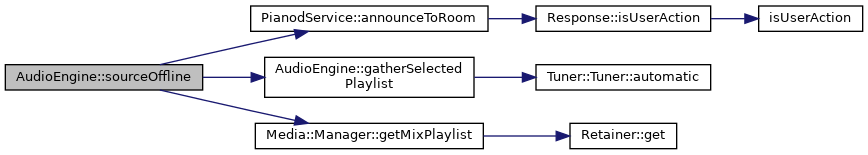

◆ sourceOffline()

void AudioEngine::sourceOffline ( const Media::Source * const source )

private

Unregister a source by removing its playlists.

However, allow items to remain in the history and queue (in case it comes back online).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sourceReady()

void AudioEngine::sourceReady ( const Media::Source * const )

private

When a new source is ready, clear any track aquisition delays.

Here is the caller graph for this function:

◆ sourceRemovalCheck()

bool AudioEngine::sourceRemovalCheck ( const Media::Source *const source )

private

Remove all songs from a given source.

Parameters

source The source to remove.

Returns: True if successfully eradicated, false if not (busy playing media from the source).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sourceRemoved()

void AudioEngine::sourceRemoved ( const Media::Source *const source )

private

Unregister a source by removing its playlists.

However, allow items to remain in the history and queue (in case it comes back online).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sourceStatus()

void AudioEngine::sourceStatus	(	RESPONSE_CODE	status,
		const char *	detail
	)

private

Transmit any source status notifications to connected clients.

Parameters

status	The numeric status code.
detail	Additional details about the status.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ startPlayer()

bool AudioEngine::startPlayer ( void )

private

Start playback of a the next song in the queue.

Preconditons: playlist should have a list in it.

Returns: True on player started, false on error.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateStatus()

ResponseGroup AudioEngine::updateStatus ( PianodConnection & there )

Update audio engine status to a client.

Used on authentication.

Here is the caller graph for this function:

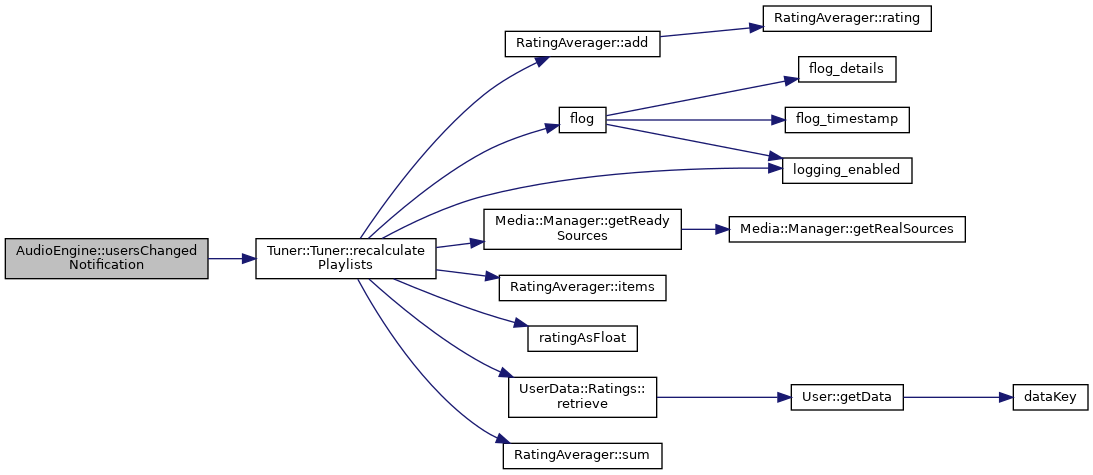

◆ usersChangedNotification()

void AudioEngine::usersChangedNotification ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ abort_playpoint

signed long AudioEngine::abort_playpoint = 0

private

Playpoint where crossfaded skip will abort, or 0 for not aborted.

◆ aquire_tracks_retry

const int AudioEngine::aquire_tracks_retry = 600

staticprivate

Retry period if unable to get random tracks.

◆ audio

AudioSettings AudioEngine::audio

private

◆ cueing_player

Media::Player* AudioEngine::cueing_player = nullptr

private

◆ cueing_song

Retainer<PianodSong *> AudioEngine::cueing_song = nullptr

private

◆ current_playlist

Retainer<PianodPlaylist *> AudioEngine::current_playlist = nullptr

private

◆ current_song

Retainer<PianodSong *> AudioEngine::current_song = nullptr

private

◆ empty_warning_given

bool AudioEngine::empty_warning_given = false

private

◆ history_size

SongList::size_type AudioEngine::history_size = 10

private

Maximum number of tracks retained in history.

◆ lockout_announced

bool AudioEngine::lockout_announced = false

private

◆ mix

Tuner::Tuner AudioEngine::mix

private

◆ onset

time_t AudioEngine::onset = 0

Clock time at which a playback stall was detected.

◆ onset_playpoint

time_t AudioEngine::onset_playpoint = 0

Playback point at which a playback stall was detected.

◆ pause_expiration

time_t AudioEngine::pause_expiration = 0

private

◆ pause_timeout

const int AudioEngine::pause_timeout = 1800

staticprivate

Pause timeout applied to all sources/songs.

◆ playback_effective_start

time_t AudioEngine::playback_effective_start = 0

When not stalled, current time minus playback point.

◆ playback_state

PlaybackState AudioEngine::playback_state = PlaybackState::PAUSED

private

◆ player

Media::Player* AudioEngine::player = nullptr

private

◆ prefetch_time

const float AudioEngine::prefetch_time = 5

private

Number of seconds before cuing at which queue is refreshed.

◆ queue_mode

QueueMode AudioEngine::queue_mode = QueueMode::STOPPED

private

◆ quit_initiated

bool AudioEngine::quit_initiated = false

private

Flag set once a shutdown request has been initiated.

◆ quit_requested

volatile bool AudioEngine::quit_requested = false

private

Flag for signal handlers to request shutdown.

◆ random_queue

SongList AudioEngine::random_queue

private

◆ requests

SongList AudioEngine::requests

private

◆ service

PianodService* AudioEngine::service = nullptr

private

◆ song_history

SongList AudioEngine::song_history

private

◆

struct { ... } AudioEngine::stall

Structure used to track player progress/status.

◆ track_acquisition_time

time_t AudioEngine::track_acquisition_time = 0

private

The next time at which random track aquisition may be attempted.

◆ track_announced

Announced AudioEngine::track_announced = Announced::NEVER

private

◆ transition_state

TransitionProgress AudioEngine::transition_state = TransitionProgress::Playing

private

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ REQUIREMENT

Member Enumeration Documentation

◆ Announced

◆ PlaybackState

◆ QueueMode

◆ requirement_t

◆ TransitionProgress

Constructor & Destructor Documentation

◆ AudioEngine()

◆ ~AudioEngine()

Member Function Documentation

◆ acquireRandomTracks()

◆ assembleStatus()

◆ audioSettings()

◆ authorizedCommand()

◆ cleanupPlayer()

◆ considerCreatingPlayer()

◆ constructSeedlist()

◆ controlPlayback()

◆ gatherPlaybackStatus() [1/2]

◆ gatherPlaybackStatus() [2/2]

◆ gatherQueueMode()

◆ gatherSelectedPlaylist()

◆ getAutotuneUsers()

◆ getParserDefinitions()

◆ getPlaylistOrCurrent()

◆ getPlaylistsOrCurrent() [1/2]

◆ getPlaylistsOrCurrent() [2/2]

◆ getSongsOrCurrent()

◆ getThingOrCurrent() [1/2]

◆ getThingOrCurrent() [2/2]

◆ getThingsOrCurrent() [1/2]

◆ getThingsOrCurrent() [2/2]

◆ handleCommand()

◆ json_request_names()

◆ mixChanged()

◆ monitorPlayer()

◆ parser_definitions()

◆ periodic()

◆ playback_selection_option_definitions()

◆ playbackState()

◆ playlistsChanged()

◆ promotePlayer()

◆ PurgeUnselectedSongs()

◆ queueEmpty()

◆ queueMode()

◆ registerInterpreter()

◆ require()

◆ sendSongLists()

◆ shutdown()

◆ sourceOffline()

◆ sourceReady()

◆ sourceRemovalCheck()

◆ sourceRemoved()

◆ sourceStatus()

◆ startPlayer()

◆ updateStatus()

◆ usersChangedNotification()

Member Data Documentation

◆ abort_playpoint

◆ aquire_tracks_retry

◆ audio

◆ cueing_player

◆ cueing_song

◆ current_playlist

◆ current_song

◆ empty_warning_given

◆ history_size

◆ lockout_announced

◆ mix
