Base class for playing audio from some source. More...

#include <mediaplayer.h>

Inheritance diagram for Media::Player:

[legend]

Public Types
enum	State { DoesNotExist , Initializing , Cueing , Playing , Done }

Public Member Functions
virtual	~Player (void)

virtual void	pause (void)=0
	Pause playback. If already paused, do nothing. More...

virtual void	abort (void)=0
	Don't play the rest of the song. More...

virtual void	setVolume (float volume)=0
	Adjust volume in decibels. More...

virtual void	cue (void)=0
	Starts thread in paused mode. More...

virtual void	play (void)=0
	Start playback or resume playback if paused. If already playing, continue. More...

virtual float	trackDuration (void) const =0
	Length of track in seconds, or a negative number if unknown. More...

virtual float	playPoint (void) const =0
	Seconds from start, or a negative value if unknown. More...

virtual float	playRemaining (void) const
	Seconds left in playback, or a negative number if unknown. More...

virtual RESPONSE_CODE	completionStatus (void)=0

virtual State	currentState (void) const =0

bool	ready (void) const
	Indicate if player has finished initializing. More...

bool	playbackComplete (void) const
	Indicate if playback is complete and ready for cleanup. More...

virtual time_t	getPauseTimeout (void)
	When paused, get the time at which the song will expire. More...

Static Public Member Functions
static Media::Player *	getPlayer (const AudioSettings &settings, const std::string &media_url, float initial_gain)
	Get the a media player currently compiled in the code. More...

Detailed Description

Base class for playing audio from some source.

Use as follows:

Construct the player.
cue() to start buffering media stream, open outputs, and get ready to play.
play() when it is time to start playing.
Use other functions to monitor or interact with player.
When playbackComplete(), it is safe to destruct the player.

Member Enumeration Documentation

◆ State

enum Media::Player::State

Enumerator
DoesNotExist	Player doesn't exist.
Initializing	Player has been created but isn't doing anything yet.
Cueing	Player has been created and is ready to go, but not playing.
Playing	Player is playing.
Done	Playback has completed or been aborted.

Constructor & Destructor Documentation

◆ ~Player()

Media::Player::~Player ( void )

virtual

Member Function Documentation

◆ abort()

virtual void Media::Player::abort ( void )

pure virtual

Don't play the rest of the song.

Implemented in Media::PlayerWrapper, Audio::AVFoundationPlayer, Audio::GstreamerPlayer, and Media::ThreadedPlayer.

Here is the caller graph for this function:

◆ completionStatus()

virtual RESPONSE_CODE Media::Player::completionStatus ( void )

pure virtual

Implemented in Media::PlayerWrapper, Media::ThreadedPlayer, Audio::AVFoundationPlayer, and Audio::GstreamerPlayer.

Here is the caller graph for this function:

◆ cue()

virtual void Media::Player::cue ( void )

pure virtual

Starts thread in paused mode.

Implemented in Media::PlayerWrapper, Media::ThreadedPlayer, Audio::AVFoundationPlayer, and Audio::GstreamerPlayer.

Here is the caller graph for this function:

◆ currentState()

Media::Player::State ToneGenerator::Player::currentState ( void ) const

pure virtual

Implemented in ToneGenerator::Player, Media::PlayerWrapper, Audio::AVFoundationPlayer, Audio::GstreamerPlayer, and Audio::LavPlayer.

Here is the caller graph for this function:

◆ getPauseTimeout()

time_t Media::Player::getPauseTimeout ( void )

virtual

When paused, get the time at which the song will expire.

Reimplemented in Media::PlayerWrapper.

◆ getPlayer()

Media::Player * Media::Player::getPlayer	(	const AudioSettings &	settings,
		const std::string &	media_url,
		float	initial_gain
	)

static

Get the a media player currently compiled in the code.

Parameters

settings	Describe the output device.
media_url	A URL indicating the media to play.
initial_gain	A suggested gain for the media to play. This may be superceded if the media stream contains its own gain value.

Returns: A media player.

Exceptions

AudioException or a derived exception in the event of media problems, output device problems, etc.

Here is the call graph for this function:

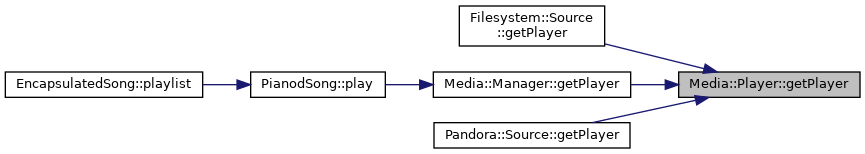

Here is the caller graph for this function:

◆ pause()

virtual void Media::Player::pause ( void )

pure virtual

Pause playback. If already paused, do nothing.

Implemented in Media::PlayerWrapper, Media::ThreadedPlayer, Audio::AVFoundationPlayer, and Audio::GstreamerPlayer.

Here is the caller graph for this function:

◆ play()

virtual void Media::Player::play ( void )

pure virtual

Start playback or resume playback if paused. If already playing, continue.

Implemented in Media::PlayerWrapper, Media::ThreadedPlayer, Audio::AVFoundationPlayer, and Audio::GstreamerPlayer.

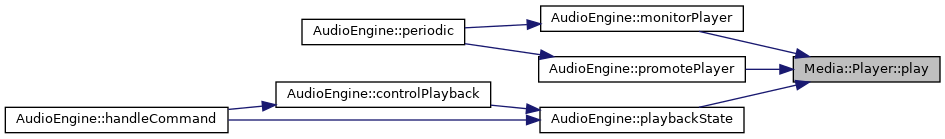

Here is the caller graph for this function:

◆ playbackComplete()

bool Media::Player::playbackComplete ( void ) const

inline

Indicate if playback is complete and ready for cleanup.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ playPoint()

float ToneGenerator::Player::playPoint ( void ) const

pure virtual

Seconds from start, or a negative value if unknown.

Implemented in ToneGenerator::Player, Media::PlayerWrapper, Audio::AVFoundationPlayer, Audio::GstreamerPlayer, and Audio::LavPlayer.

Here is the caller graph for this function:

◆ playRemaining()

float Media::Player::playRemaining ( void ) const

virtual

Seconds left in playback, or a negative number if unknown.

Determine the length of track remaining to play.

Returns: The length in seconds, floating point, or a negative number if the value could not be ascertained.

Note: Although it "shouldn't" happen, return value may also be negative if actual playpoint exceeds expected duration, which can happen if ID3 data is wrong, encoding is wrong, etc.

Reimplemented in Media::PlayerWrapper.

Here is the call graph for this function:
