ResponseGroup Class Reference

Container for multiple Responses. More...

#include <response.h>

Inheritance diagram for ResponseGroup:

Collaboration diagram for ResponseGroup:

Public Member Functions
	ResponseGroup ()=default
	ResponseGroup (ResponseGroup &&)=default
ResponseGroup &	operator= (ResponseGroup &&)=default
	ResponseGroup (Response &&r)
	Construct from a single response. More...
template<typename... Parameters>
void	operator() (Parameters &&...params)
	Add a new response to the list, after constructing it. More...
void	operator() (ResponseGroup &&)
	Merge members from another ResponseGroup. More...
void	transmit (class PianodService &) const
	Transmit a group of response messages to all nodes on a service, using the appropriate protocol for each node. More...
void	transmitLine (PianodConnection &, int offset=Response::TransmitUnaltered) const
	Transmit a group of responses to the client. More...
void	transmit (class PianodConnection &) const
	Transmit a group of response messages to a single node using the node's selected protocol. More...

Private Member Functions
Parsnip::Data	serializeReply () const
	Format successes or diagnostics for JSON transmission. More...
Parsnip::Data	serializeData (const User *) const
	Format a record's worth of reponses for JSON protocol. More...
Parsnip::Data	serializeHomogenousData (const User *) const
	Format a homogenous list of responses as a series JSON records. More...
Parsnip::Data	serializeEvents (bool, const User *) const
	Re-sort messages to be broadcast into categories: More...
void	transmitLine (class PianodService &) const
	Broadcast a group of responses to an entire service. More...
void	transmitJSON (class PianodService &) const
	Transmit a group of responses JSON connection on a service. More...

Friends
class	ResponseCollector

Detailed Description

Container for multiple Responses.

May contain any type, but for data, success and command errors contents should be consistent. Others types may mix. For performance, this avoids copy constructors/adders and provides only move constructors/adders.

Constructor & Destructor Documentation

ResponseGroup() [1/3]

ResponseGroup::ResponseGroup ( )

default

ResponseGroup() [2/3]

ResponseGroup::ResponseGroup ( ResponseGroup &&  )

default

ResponseGroup() [3/3]

ResponseGroup::ResponseGroup ( Response &&  r )

inline

Construct from a single response.

Member Function Documentation

operator()() [1/2]

template<typename... Parameters>

void ResponseGroup::operator() ( Parameters &&...  params )

inline

Add a new response to the list, after constructing it.

operator()() [2/2]

void ResponseGroup::operator()

(

ResponseGroup &&

merge_from

)

Merge members from another ResponseGroup.

Parameters

merge_from

The other group.

operator=()

ResponseGroup& ResponseGroup::operator= ( ResponseGroup &&  )

default

serializeData()

Parsnip::Data ResponseGroup::serializeData ( const User *  user ) const

private

Format a record's worth of reponses for JSON protocol.

Returns

A dictionary containing the record's data.

Here is the call graph for this function:

Here is the caller graph for this function:

serializeEvents()

Parsnip::Data ResponseGroup::serializeEvents ( bool  inline_details, const User *  user  ) const

private

Re-sort messages to be broadcast into categories:

• State updates (such as queue mode has been changed to X)
• Current song (which could be in state, but isn't).
• Events (track ended, someone logged in, etc)
• Spontaneous errors on the server. Much like events, except that they are errors.

  Parameters

  inline_details	If true, include user-specific info (ratings).
  user	The user for whom to include details.

  Returns

  A dictionary containing dictionaries for any non-empty categories, suitable for JSON transmission.

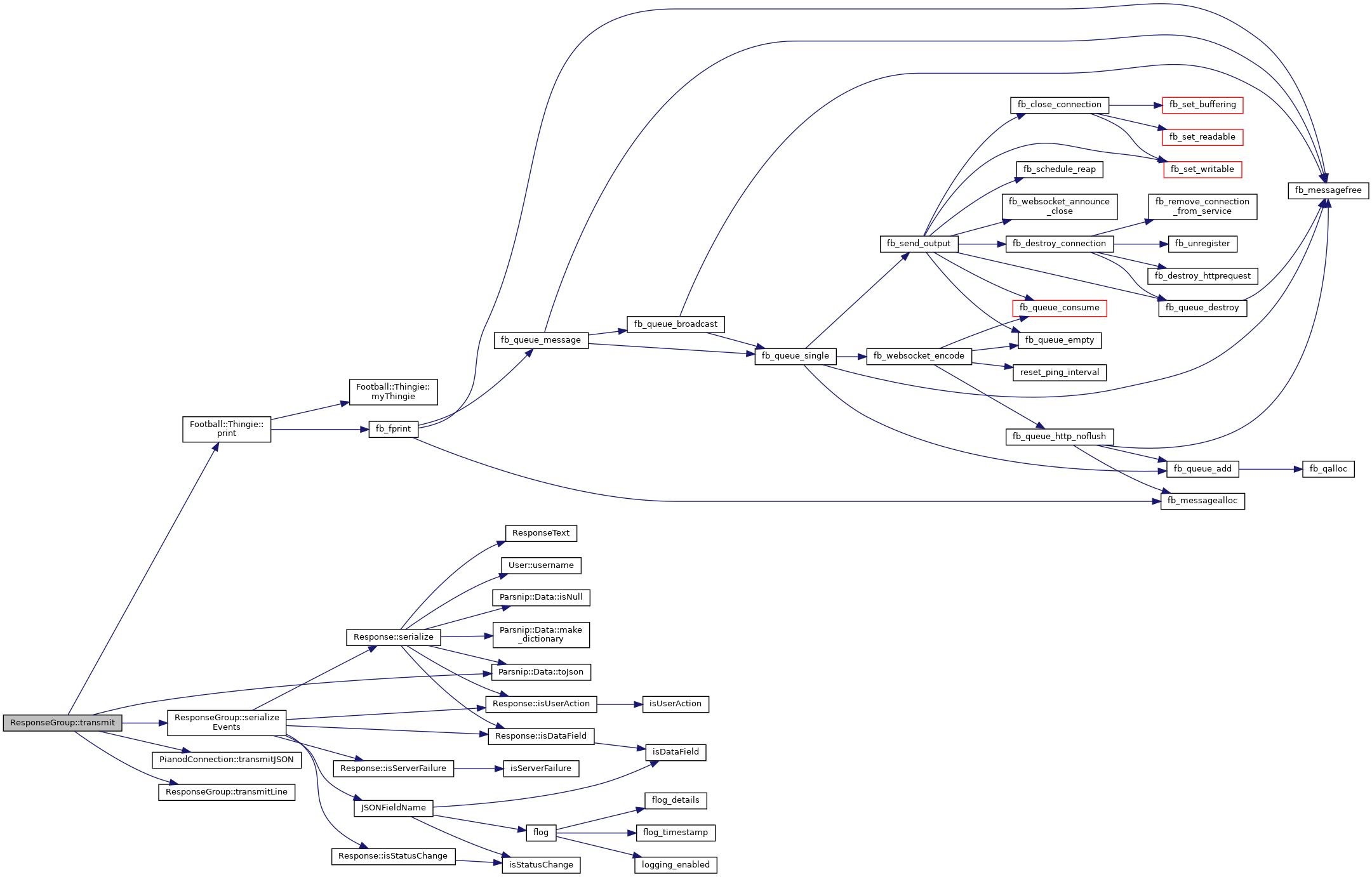

Here is the call graph for this function:

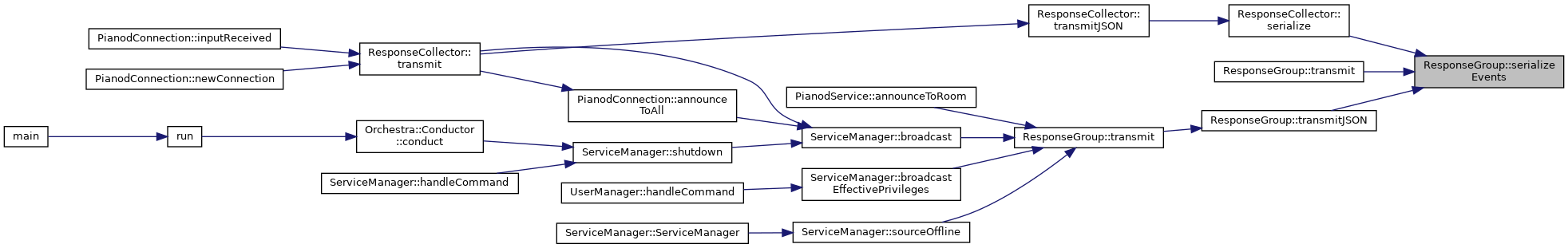

Here is the caller graph for this function:

serializeHomogenousData()

Parsnip::Data ResponseGroup::serializeHomogenousData ( const User *  user ) const

private

Format a homogenous list of responses as a series JSON records.

Returns

A list containing dictionaries, each with their one data item.

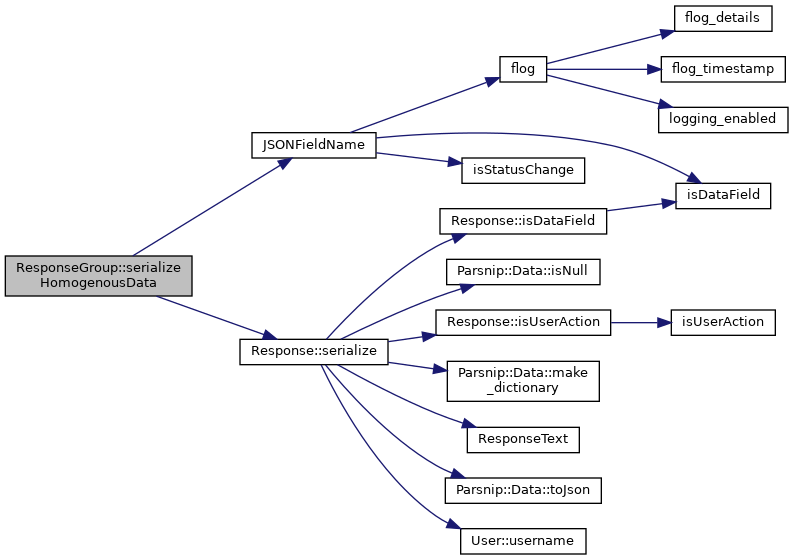

Here is the call graph for this function:

Here is the caller graph for this function:

serializeReply()

Parsnip::Data ResponseGroup::serializeReply ( ) const

private

Format successes or diagnostics for JSON transmission.

Returns

A list containing the responses.

Here is the call graph for this function:

Here is the caller graph for this function:

transmit() [1/2]

void ResponseGroup::transmit

(

class PianodConnection &

destination

)

const

Transmit a group of response messages to a single node using the node's selected protocol.

Parameters

destination

The node to direct the responses to.

Here is the call graph for this function:

transmit() [2/2]

void ResponseGroup::transmit

(

class PianodService &

destination

)

const

Transmit a group of response messages to all nodes on a service, using the appropriate protocol for each node.

Parameters

destination

The service to direct the responses to.

Here is the call graph for this function:

Here is the caller graph for this function:

transmitJSON()

void ResponseGroup::transmitJSON ( class PianodService &  destination ) const

private

Transmit a group of responses JSON connection on a service.

If the responses include the current song, follow up with user-specific ratings and actions.

Parameters

destination

The service to which to send responses.

Here is the call graph for this function:

Here is the caller graph for this function:

transmitLine() [1/2]

void ResponseGroup::transmitLine ( class PianodService &  service ) const

private

Broadcast a group of responses to an entire service.

Parameters

service

The service whose clients to send to.

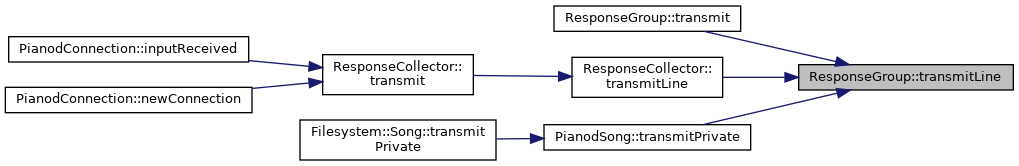

Here is the caller graph for this function:

transmitLine() [2/2]

void ResponseGroup::transmitLine	(	PianodConnection &	there,
		int	offset = Response::TransmitUnaltered
	)		const

Transmit a group of responses to the client.

Parameters

there	The target to send to.
offset	If unspecified, sends messages as-is. Set to TransmitAsDiagnostic to send command error messages as diagnostics.

Friends And Related Function Documentation

ResponseCollector

friend class ResponseCollector

friend

---

The documentation for this class was generated from the following files:

• response.h
• response.cpp
• responsejson.cpp
• responseline.cpp
