Football private declarations. More...

#include <config.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <time.h>
#include <stdbool.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include "fb_public.h"
#include "fb_transport.h"

Include dependency graph for fb_service.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
union	fb_socketaddr_t
	Address of opposing end of a connection. More...

struct	fb_service_t
	Football service state structure. More...

struct	fb_message_t
	Message structure. More...

struct	fb_messagelist_t
	Q list structure. More...

struct	fb_ioqueue_t
	Queue structure. More...

struct	fb_inputbuffer_t
	Connection input structure. More...

struct	fb_http_request_t
	Structure which collects HTTP request information as it is read. More...

struct	fb_connection_t
	Connection state information. More...

struct	fb_iterator_t
	Iterator for connections on a football service. More...

Macros
#define	FB_WHERE(level) __FILE__, __LINE__, __func__, (level)
	Use FB_WHERE to send the log type; this macro includes the file, line and function when NDEBUG is not set. More...

#define	fb_perror(errfunc) fb_log(FB_WHERE (FB_LOG_ERROR), (errfunc ": %s"), strerror (errno))
	Log a message with a form akin to perror. More...

#define	fb_mutex_init(mutex) ((void)0)

#define	fb_mutex_destroy(mutex) ((void)0)

#define	fb_mutex_lock(mutex) ((void)0)

#define	fb_mutex_unlock(mutex) ((void)0)

#define	fb_http_socket(id)

#define	fb_ip6_socket(id)

#define	fb_encrypted_socket(id) ((id) == FB_SOCKET_HTTPS_IP4 \|\| (id) == FB_SOCKET_HTTPS_IP6)

#define	FAR_FUTURE ((time_t) (((time_t) 0x7fffffff) << ((sizeof (time_t) - 4) * 8)))

Typedefs
typedef enum fb_log_types_t	FB_LOG_TYPE

typedef enum fb_socket_type_t	FB_SOCKETTYPE
	Magic numbers used to differentiate parameter types sent to fb_fprintf. More...

typedef enum fb_socket_state_t	FB_SOCKETSTATE
	Connection states. More...

typedef enum fb_socketid_t	FB_SOCKETID

typedef union fb_socketaddr_t	FB_SOCKETADDR
	Address of opposing end of a connection. More...

typedef struct fb_message_t	FB_MESSAGE
	Message structure. More...

typedef struct fb_messagelist_t	FB_MESSAGELIST
	Q list structure. More...

typedef struct fb_ioqueue_t	FB_IOQUEUE
	Queue structure. More...

typedef struct fb_inputbuffer_t	FB_INPUTBUFFER
	Connection input structure. More...

typedef struct fb_http_request_t	FB_HTTPREQUEST
	Structure which collects HTTP request information as it is read. More...

Enumerations
enum	fb_log_types_t { FB_LOG_ERROR = 0 , FB_LOG_WARNING = 0x01 , FB_LOG_PARSER = 0x04 , FB_LOG_IO_TRACE = 0x08 , FB_LOG_CONN_STATUS = 0x10 , FB_LOG_CONN_ERROR = 0x20 , FB_LOG_TLS_STATUS = 0x100 , FB_LOG_TLS_ERROR = 0x200 , FB_LOG_HTTP_STATUS = 0x1000 , FB_LOG_HTTP_ERROR = 0x2000 , FB_LOG_HTTP_TRAFFIC = 0x4000 }

enum	fb_socket_type_t { FB_SOCKTYPE_SERVICE = 0x3692 , FB_SOCKTYPE_CONNECTION = 0x5285 , FB_SOCKTYPE_USER = 0xa9f7 , FB_SOCKTYPE_EVENT = 0xbd53 }
	Magic numbers used to differentiate parameter types sent to fb_fprintf. More...

enum	fb_socket_state_t { FB_SOCKET_STATE_TLS_HANDSHAKE , FB_SOCKET_STATE_GREETING , FB_SOCKET_STATE_GATHERING_HEADER , FB_SOCKET_STATE_OPEN , FB_SOCKET_STATE_FLUSHING , FB_SOCKET_STATE_CLOSING }
	Connection states. More...

enum	fb_socketid_t { FB_SOCKET_LINE_IP4 , FB_SOCKET_LINE_IP6 , FB_SOCKET_HTTP_IP4 , FB_SOCKET_HTTP_IP6 , FB_SOCKET_HTTPS_IP4 , FB_SOCKET_HTTPS_IP6 , FB_SOCKET_COUNT }

Functions
void	fb_free_freelists (void)

FB_MESSAGE *	fb_messagealloc (void)

void	fb_messagefree (FB_MESSAGE *freethis)

FB_MESSAGELIST *	fb_qalloc ()

void	fb_qfree (FB_MESSAGELIST *freethis)

bool	fb_queue_add (FB_IOQUEUE queue, FB_MESSAGE message)

bool	fb_queue_empty (FB_IOQUEUE *q)

void	fb_queue_consume (FB_IOQUEUE *q, size_t consume)

void	fb_queue_destroy (FB_IOQUEUE *q)

void	fb_destroy_service (struct fb_service_t *service)

void	fb_schedule_reap (FB_SERVICE *service)

bool	fb_transfer_by_name (FB_CONNECTION connection, const char name)

void	fb_queue_event (FB_EVENT *event)

void	fb_dispose_event (FB_EVENT *event)

bool	fb_register (int socket, FB_SOCKETTYPE type, void *thing)
	Add a socket to the registry. More...

void	fb_unregister (int socket)
	Remove a socket from the registry. More...

FB_CONNECTION *	fb_accept_connection (FB_SERVICE *service, FB_SOCKETID id)

void	fb_destroy_connection (FB_CONNECTION *connection)

bool	fb_set_input_buffer_size (FB_CONNECTION *connection, size_t size)

bool	fb_recv_input (FB_CONNECTION *connection, ssize_t byte_count)

FB_EVENT *	fb_read_input (FB_EVENT event, FB_CONNECTION connection)

FB_EVENT *	fb_new_connect (FB_EVENT event, FB_SERVICE service)

FB_EVENT *	fb_send_output (FB_EVENT event, FB_CONNECTION connection)

FB_EVENT *	fb_read_websocket_input (FB_EVENT event, FB_CONNECTION connection)

bool	fb_websocket_ping (FB_CONNECTION *connection)

bool	fb_websocket_announce_close (FB_CONNECTION *connection)

bool	fb_websocket_encode (FB_CONNECTION *connection)

void	fb_destroy_httprequest (FB_HTTPREQUEST *request)

void	fb_collect_http_request (FB_EVENT event, FB_HTTPREQUEST request)

void	fb_collect_http_parameter (char line, FB_HTTPREQUEST request)

bool	fb_http_command (const char *command)

FB_EVENT *	fb_execute_http_request (FB_EVENT event, FB_CONNECTION connection)

int	fb_create_argv (const char commandline, char **result)

int	fb_create_argv_from_query_string (const char query_string, char result, char *remainders)

void	fb_destroy_argv (char **argv)

const char *	fb_connection_info (FB_CONNECTION *connection)

void	fb_set_buffering (int socket_fd, bool enable)

void	fb_set_readable (int socket, bool enable)

void	fb_set_writable (int socket, bool enable)

Detailed Description

Football private declarations.

Football socket abstraction layer
Author
Perette Barella

Date
2012-03-03

Copyright
Copyright 2012-2021 Devious Fish. All rights reserved.

Macro Definition Documentation

◆ FAR_FUTURE

#define FAR_FUTURE ((time_t) (((time_t) 0x7fffffff) << ((sizeof (time_t) - 4) * 8)))

◆ fb_encrypted_socket

#define fb_encrypted_socket ( id ) ((id) == FB_SOCKET_HTTPS_IP4 || (id) == FB_SOCKET_HTTPS_IP6)

◆ fb_http_socket

#define fb_http_socket ( id )

Value:

((id) == FB_SOCKET_HTTP_IP4 || (id) == FB_SOCKET_HTTP_IP6 || \

(id) == FB_SOCKET_HTTPS_IP4 || (id) == FB_SOCKET_HTTPS_IP6)

FB_SOCKET_HTTP_IP6

@ FB_SOCKET_HTTP_IP6

Definition: fb_service.h:107

FB_SOCKET_HTTPS_IP4

@ FB_SOCKET_HTTPS_IP4

Definition: fb_service.h:108

FB_SOCKET_HTTPS_IP6

@ FB_SOCKET_HTTPS_IP6

Definition: fb_service.h:109

FB_SOCKET_HTTP_IP4

@ FB_SOCKET_HTTP_IP4

Definition: fb_service.h:106

◆ fb_ip6_socket

#define fb_ip6_socket ( id )

Value:

((id) == FB_SOCKET_LINE_IP6 || (id) == FB_SOCKET_HTTP_IP6 || \

(id) == FB_SOCKET_HTTPS_IP6)

FB_SOCKET_LINE_IP6

@ FB_SOCKET_LINE_IP6

Definition: fb_service.h:105

◆ fb_mutex_destroy

#define fb_mutex_destroy ( mutex ) ((void)0)

◆ fb_mutex_init

#define fb_mutex_init ( mutex ) ((void)0)

◆ fb_mutex_lock

#define fb_mutex_lock ( mutex ) ((void)0)

◆ fb_mutex_unlock

#define fb_mutex_unlock ( mutex ) ((void)0)

◆ fb_perror

#define fb_perror ( errfunc ) fb_log(FB_WHERE (FB_LOG_ERROR), (errfunc ": %s"), strerror (errno))

Log a message with a form akin to perror.

◆ FB_WHERE

#define FB_WHERE ( level ) __FILE__, __LINE__, __func__, (level)

Use FB_WHERE to send the log type; this macro includes the file, line and function when NDEBUG is not set.

Typedef Documentation

◆ FB_HTTPREQUEST

typedef struct fb_http_request_t FB_HTTPREQUEST

Structure which collects HTTP request information as it is read.

◆ FB_INPUTBUFFER

typedef struct fb_inputbuffer_t FB_INPUTBUFFER

Connection input structure.

◆ FB_IOQUEUE

typedef struct fb_ioqueue_t FB_IOQUEUE

Queue structure.

These hold output for a specific connection.

◆ FB_LOG_TYPE

typedef enum fb_log_types_t FB_LOG_TYPE

◆ FB_MESSAGE

typedef struct fb_message_t FB_MESSAGE

Message structure.

May appear in multiple connections' queues.

◆ FB_MESSAGELIST

typedef struct fb_messagelist_t FB_MESSAGELIST

Q list structure.

Per-connection list of its messages.

◆ FB_SOCKETADDR

typedef union fb_socketaddr_t FB_SOCKETADDR

Address of opposing end of a connection.

◆ FB_SOCKETID

typedef enum fb_socketid_t FB_SOCKETID

◆ FB_SOCKETSTATE

typedef enum fb_socket_state_t FB_SOCKETSTATE

Connection states.

◆ FB_SOCKETTYPE

typedef enum fb_socket_type_t FB_SOCKETTYPE

Magic numbers used to differentiate parameter types sent to fb_fprintf.

Enumeration Type Documentation

◆ fb_log_types_t

enum fb_log_types_t

Enumerator
FB_LOG_ERROR
FB_LOG_WARNING
FB_LOG_PARSER
FB_LOG_IO_TRACE
FB_LOG_CONN_STATUS
FB_LOG_CONN_ERROR
FB_LOG_TLS_STATUS
FB_LOG_TLS_ERROR
FB_LOG_HTTP_STATUS
FB_LOG_HTTP_ERROR
FB_LOG_HTTP_TRAFFIC

◆ fb_socket_state_t

enum fb_socket_state_t

Connection states.

Enumerator
FB_SOCKET_STATE_TLS_HANDSHAKE	Connection has not yet completed TLS handshake.
FB_SOCKET_STATE_GREETING	HTTP/TLS connection is awaiting a request.
FB_SOCKET_STATE_GATHERING_HEADER	HTTP/HTTPS request in process, still reading headering.
FB_SOCKET_STATE_OPEN	Line-oriented or WebSocket session in process.
FB_SOCKET_STATE_FLUSHING	Line-oriented or WebSocket session is closing, flushing output.
FB_SOCKET_STATE_CLOSING	Line-oriented or WebSocket connection has finished flushing.

◆ fb_socket_type_t

enum fb_socket_type_t

Magic numbers used to differentiate parameter types sent to fb_fprintf.

Enumerator
FB_SOCKTYPE_SERVICE	Random numbers.
FB_SOCKTYPE_CONNECTION
FB_SOCKTYPE_USER
FB_SOCKTYPE_EVENT

◆ fb_socketid_t

enum fb_socketid_t

Enumerator
FB_SOCKET_LINE_IP4
FB_SOCKET_LINE_IP6
FB_SOCKET_HTTP_IP4
FB_SOCKET_HTTP_IP6
FB_SOCKET_HTTPS_IP4
FB_SOCKET_HTTPS_IP6
FB_SOCKET_COUNT

Function Documentation

◆ fb_accept_connection()

FB_CONNECTION* fb_accept_connection	(	FB_SERVICE *	service,
		FB_SOCKETID	id
	)

Accept a connection.

Parameters

service	The service on which a connection is arriving.
id	Identifies the arrival socket (line, HTTP, TLS, IP4 vs IP6)

Returns: a pointer to a new connection, or NULL on failure.

Here is the call graph for this function:

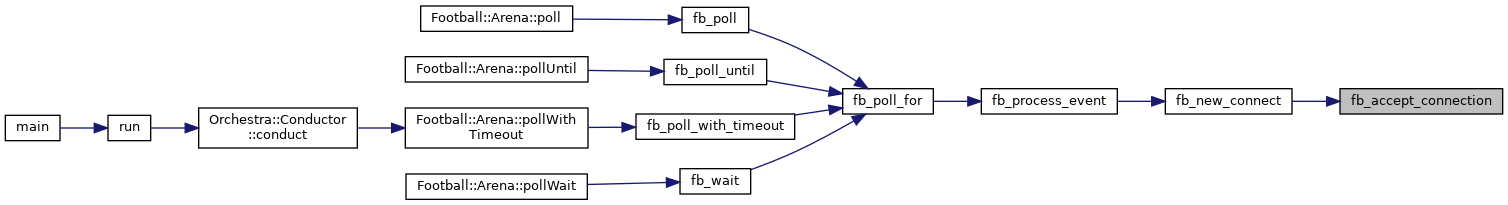

Here is the caller graph for this function:

◆ fb_collect_http_parameter()

void fb_collect_http_parameter	(	char *	line,
		FB_HTTPREQUEST *	request
	)

Collect HTTP method parameters that are relevant.

Parameters

line	the HTTP header line received.
request	the request structure into which details will be stored.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_collect_http_request()

void fb_collect_http_request	(	FB_EVENT *	event,
		FB_HTTPREQUEST *	request
	)

Collect the relevant bits of 'get', 'head' or other HTTP method.

Parameters

event	an event, complete with argv structure.
request	HTTP request structure into which details will be placed.

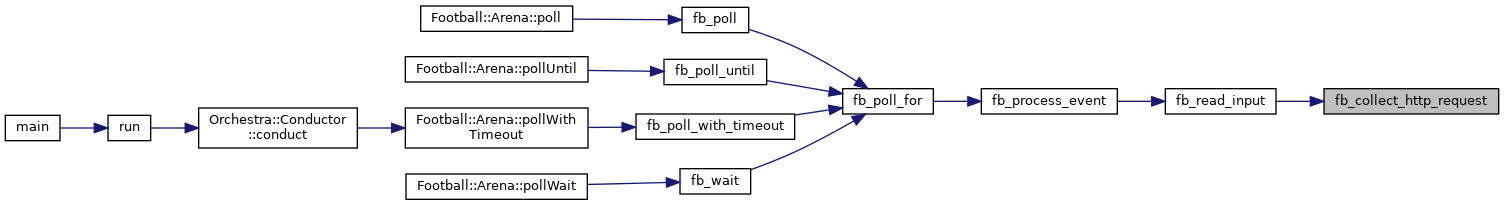

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_connection_info()

const char* fb_connection_info ( FB_CONNECTION * connection )

Return a a connection's opposing end as a string.

Parameters

connection the connection to get the string of.

Returns: a string with the info, or a stand-in value.

Here is the caller graph for this function:

◆ fb_create_argv()

int fb_create_argv	(	const char *	commandline,
		char ***	result
	)

Create an argv-style array. A command line with nothing on it results in 0 and a pointer to an array with one null.

Parameters

commandline	The command to split up. This original string remains unaltered.
result	The place to put the argv array.

Returns: The number of populated terms in the argv array. On error, returns a negative number and a null pointer.

Here is the caller graph for this function:

◆ fb_create_argv_from_query_string()

int fb_create_argv_from_query_string	(	const char *	query_string,
		char ***	result_names,
		char ***	result_values
	)

Create arrays of parameter names and values from an HTTP query parameter string. An empty query string results in 0 and pointers arrays with one null.

Parameters

query_string	The command to split up. This original string remains unaltered.
result_names	The place to put the parameter name array reference.
result_values	The place to put the parameter value array reference.

Returns: The number of populated terms in the parameter array. On error, returns a negative number and a null pointer.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_destroy_argv()

void fb_destroy_argv ( char ** argv )

Free up resources used by an argv array.

Parameters

argv	The array to release.

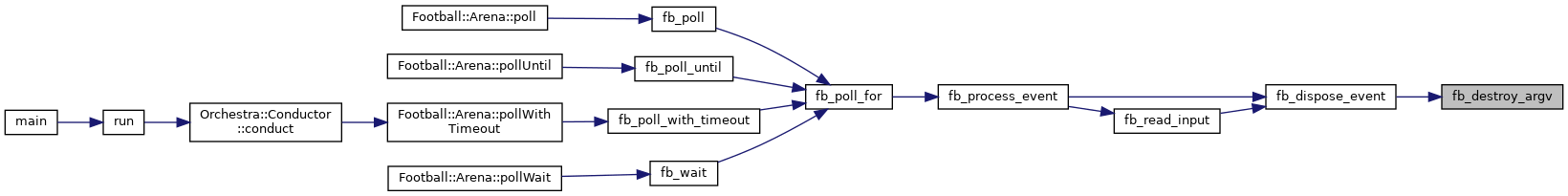

Here is the caller graph for this function:

◆ fb_destroy_connection()

void fb_destroy_connection ( FB_CONNECTION * connection )

Close and destroy a connection.

Returns: Nothing.

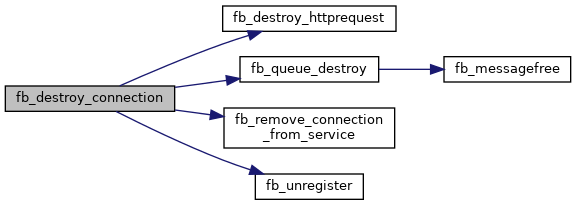

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_destroy_httprequest()

void fb_destroy_httprequest ( FB_HTTPREQUEST * request )

Reset a request structure. Frees dynamically allocated elements and clears structure.

Parameters

request The request structure to reset.

Here is the caller graph for this function:

◆ fb_destroy_service()

void fb_destroy_service ( FB_SERVICE * service )

Destroy a service's resources. Abruptly closes any remaining connections, frees them, closes listener sockets and frees service.

Parameters

service the service to terminate.

Returns: Nothing.

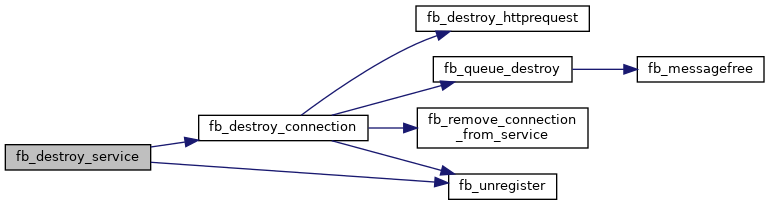

Here is the call graph for this function:

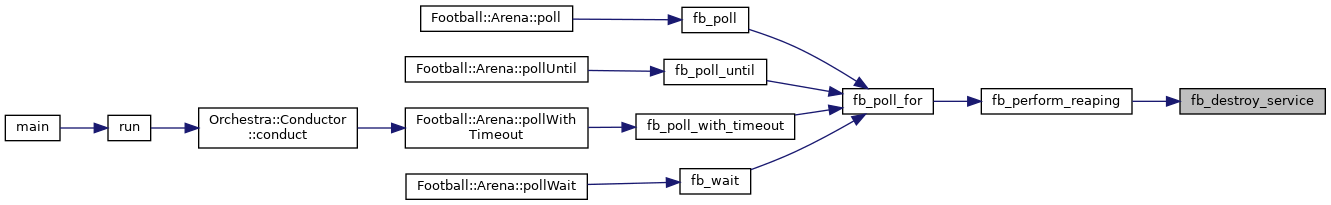

Here is the caller graph for this function:

◆ fb_dispose_event()

void fb_dispose_event ( FB_EVENT * event )

Destroy an event and free its resources. Events are all statically allocated, so we never free them in the current implementation. However, dispose frees the dynamically allocated elements and clears out the structure.

Parameters

event the event to free

Here is the call graph for this function:

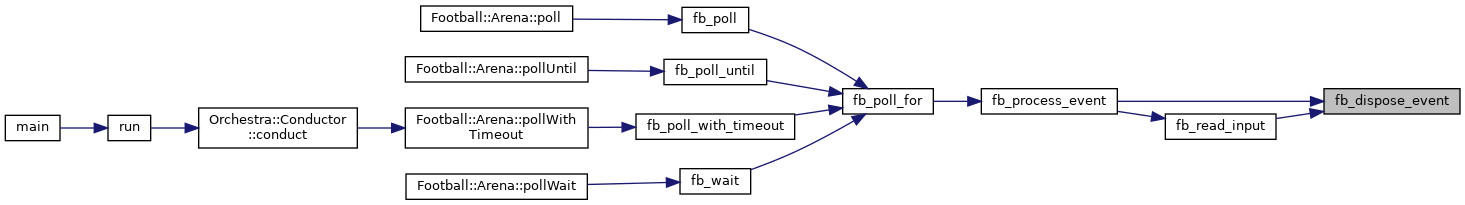

Here is the caller graph for this function:

◆ fb_execute_http_request()

FB_EVENT* fb_execute_http_request	(	FB_EVENT *	event,
		FB_CONNECTION *	connection
	)

Interpret the collected HTTP request. Return an HTTP error if the request is invalid. If it is a WebSocket request, initiate a WebSocket session. Otherwise serve the request and reset the connection.

Parameters

event	a partially filled event applicable to this connection.
connection	the connection being served.

Returns: An FB_EVENT_CONNECT event if a WebSocket session is initiated, NULL otherwise.

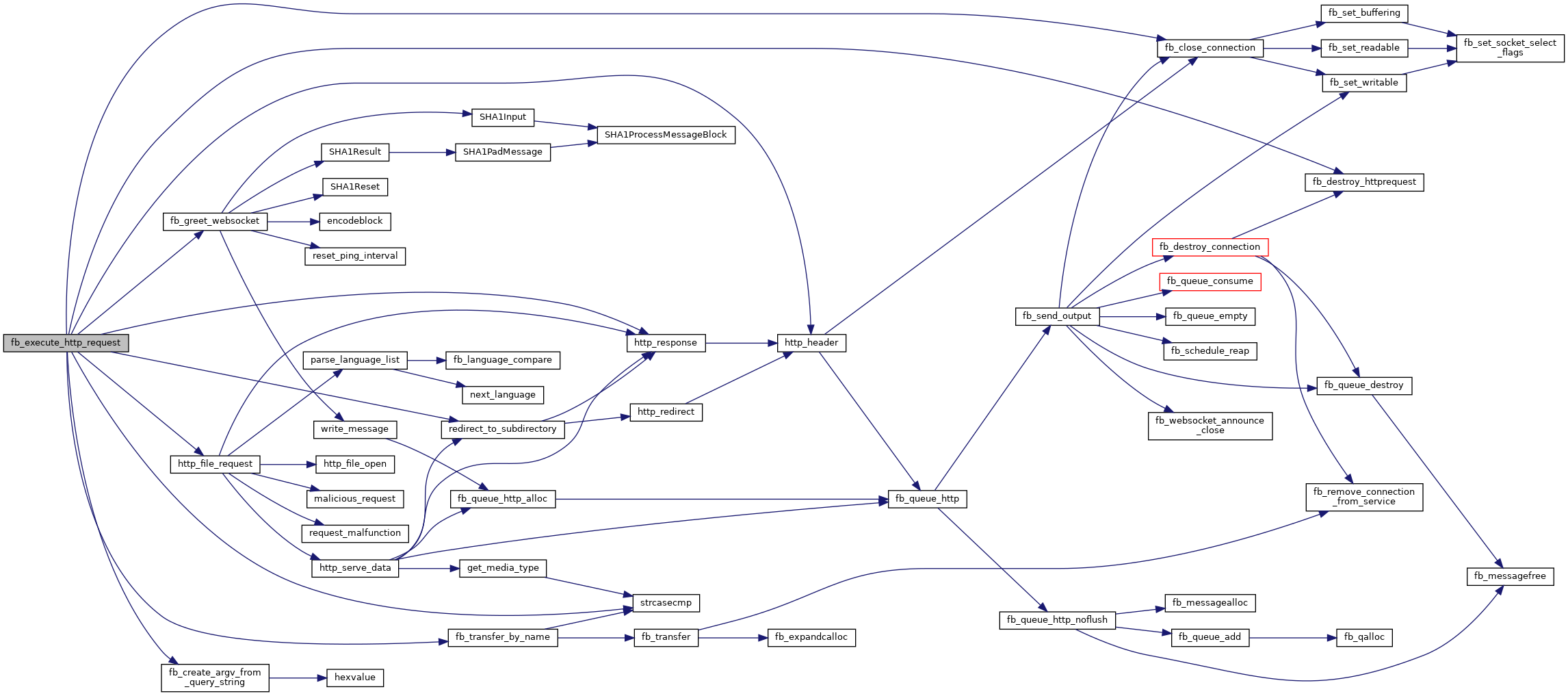

Here is the call graph for this function:

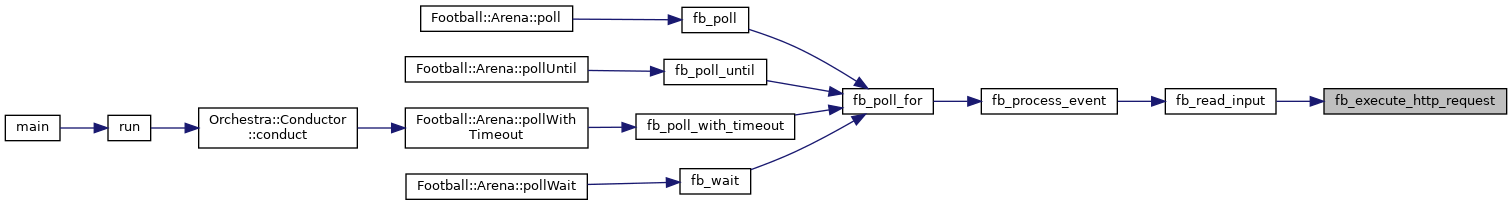

Here is the caller graph for this function:

◆ fb_free_freelists()

void fb_free_freelists ( void )

Free the free message lists

Here is the caller graph for this function:

◆ fb_http_command()

bool fb_http_command ( const char * command )

Determine if a request is an HTTP one.

Parameters

command the HTTP request (GET, HEAD, etc.)

Returns: true if command is an HTTP request, false otherwise.

Here is the call graph for this function:

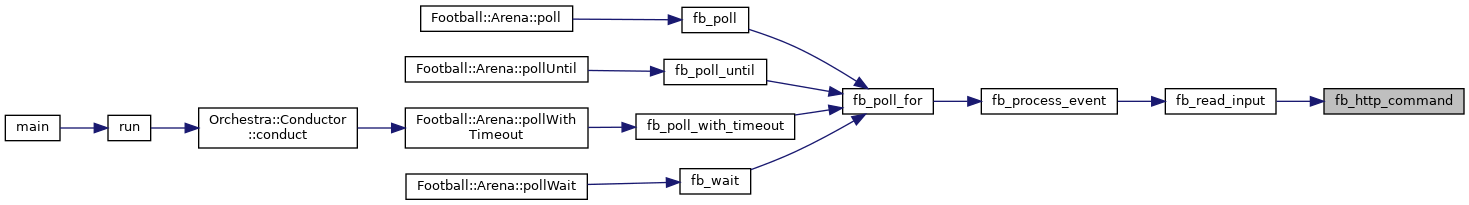

Here is the caller graph for this function:

◆ fb_messagealloc()

FB_MESSAGE* fb_messagealloc ( void )

Allocate a message block structure. Get it off the free list if its available, otherwise malloc a new one.

Returns: the message block, or NULL on failure.

Here is the caller graph for this function:

◆ fb_messagefree()

void fb_messagefree ( FB_MESSAGE * freethis )

"Free" a message block by putting it on the free list.

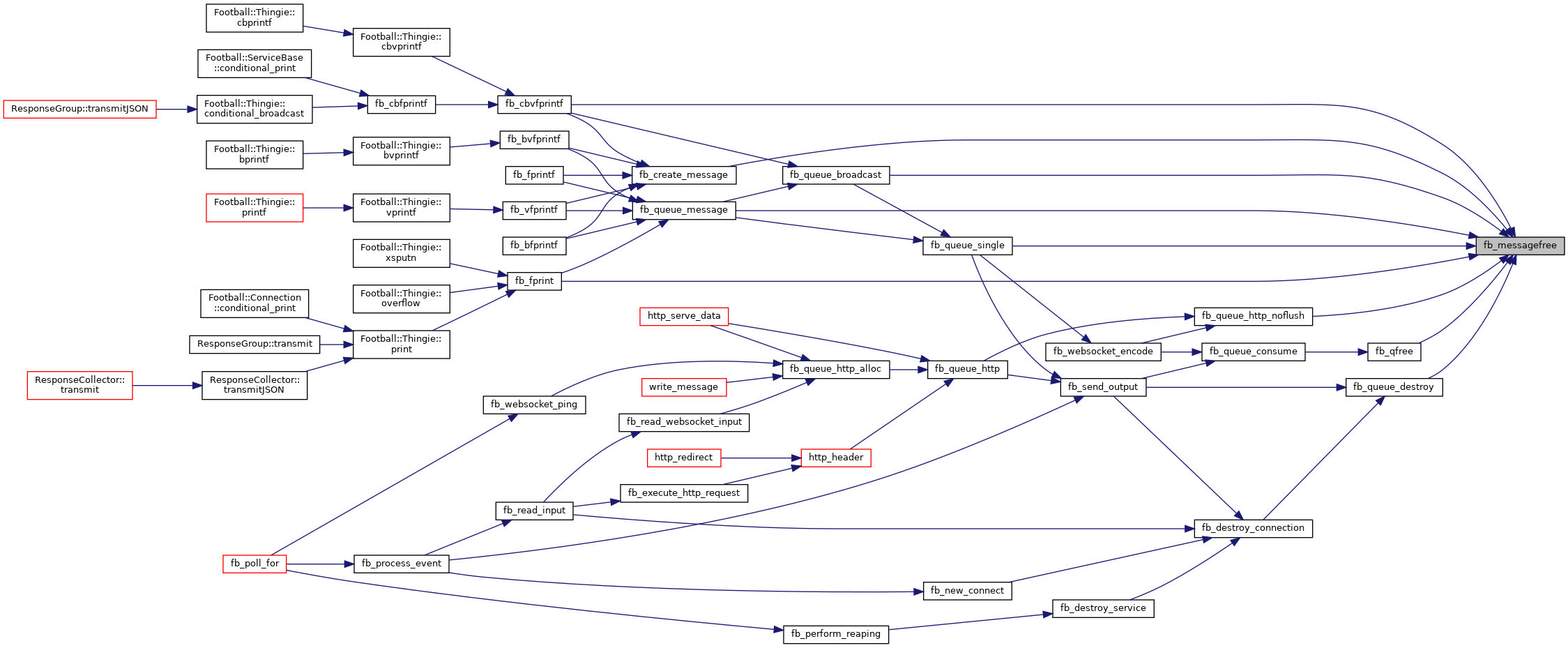

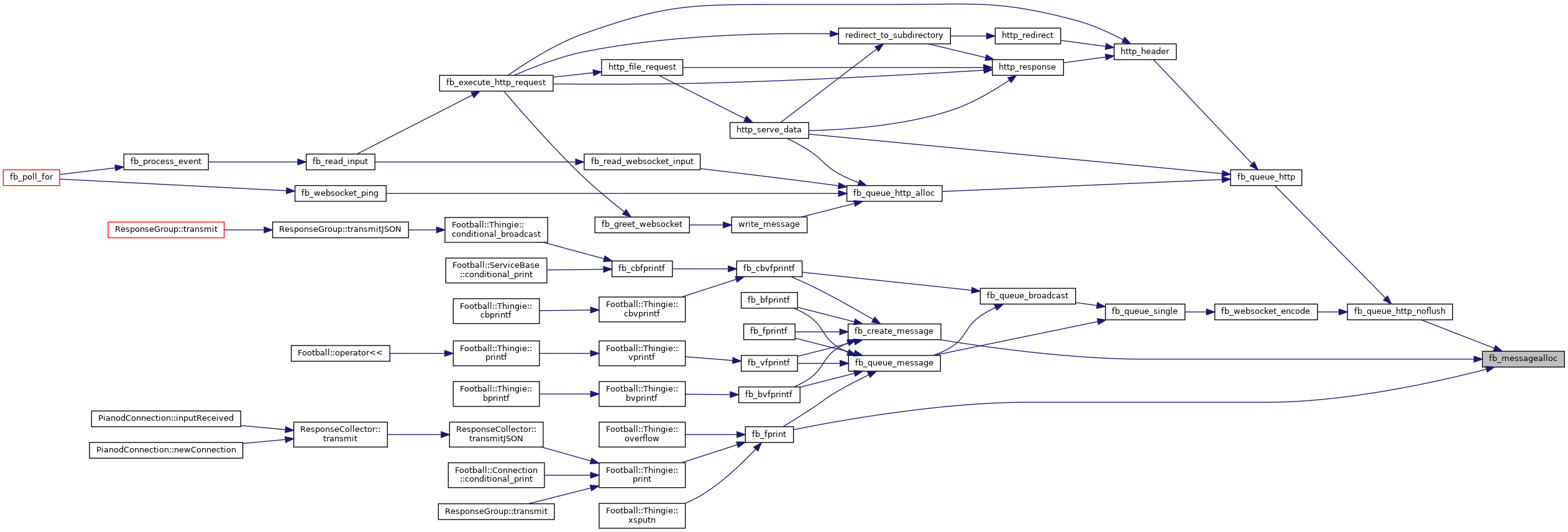

Here is the caller graph for this function:

◆ fb_new_connect()

FB_EVENT* fb_new_connect	(	FB_EVENT *	event,
		FB_SERVICE *	service
	)

Accept a new connection and return an event announcing it if applicable.

Parameters

event	a partially filled event applicable to the new connection.
service	the service on which the connection is arriving.

Returns: FB_EVENT_CONNECTED for successful line-oriented connections, NULL otherwise.

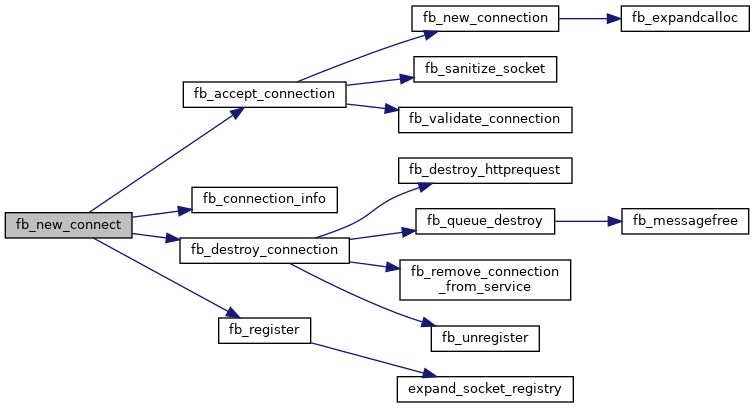

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_qalloc()

FB_MESSAGELIST* fb_qalloc ( )

Here is the caller graph for this function:

◆ fb_qfree()

void fb_qfree ( FB_MESSAGELIST * freethis )

"Free" a single message by putting it on the free list.

Here is the call graph for this function:

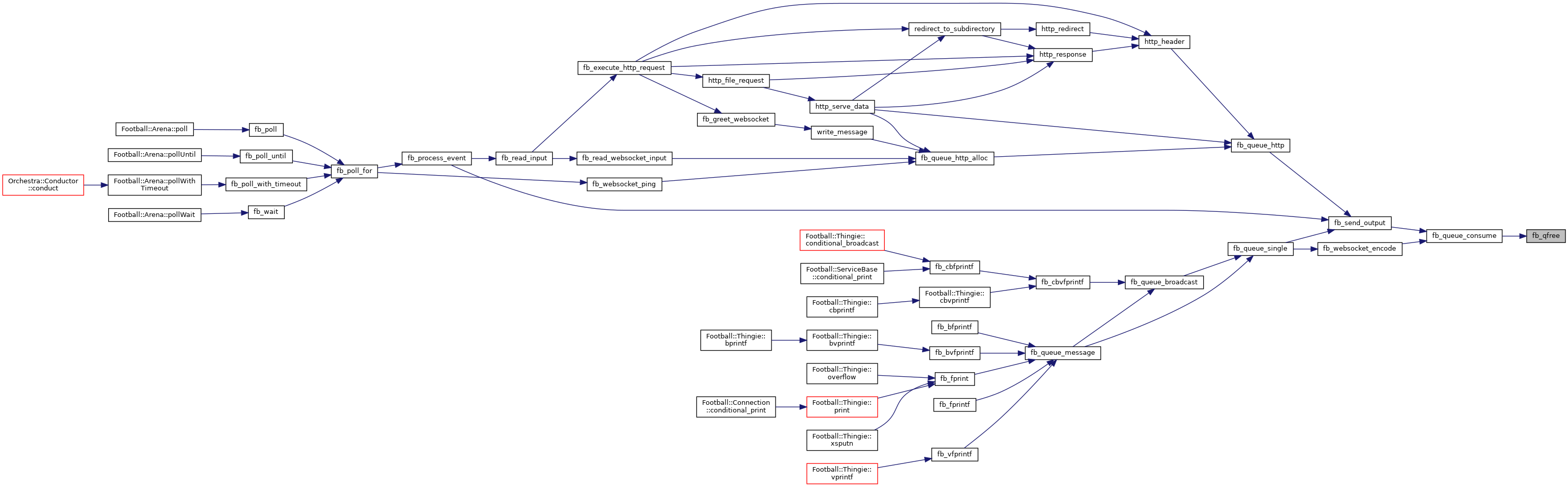

Here is the caller graph for this function:

◆ fb_queue_add()

bool fb_queue_add	(	FB_IOQUEUE *	queue,
		FB_MESSAGE *	message
	)

Add a message to a queue. Does not adjust message block use counts.

Parameters

queue	the queue to add to.
message	the message to add to the queue.

Returns: true on success, false on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_queue_consume()

void fb_queue_consume	(	FB_IOQUEUE *	q,
		size_t	consume
	)

Consume bytes at the front of the queue. Bytes consumed must not exceed the remaining bytes in the front message block.

Parameters

q	the queue
consume	The number of bytes to consume.

Here is the call graph for this function:

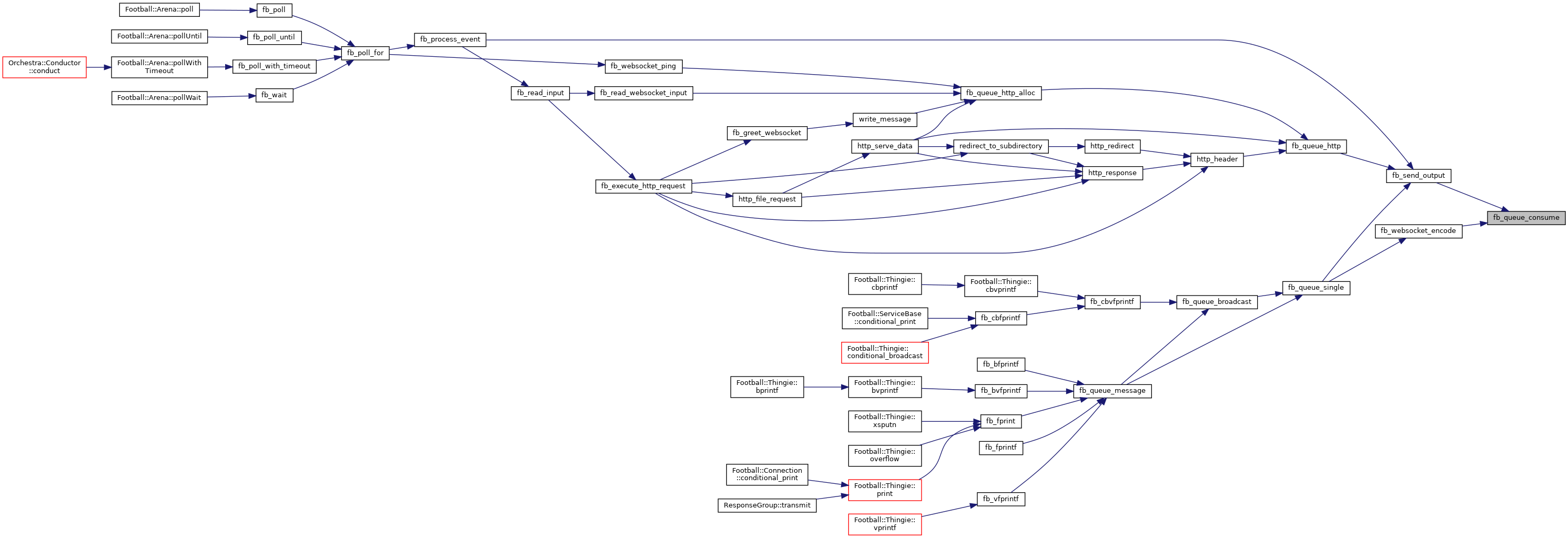

Here is the caller graph for this function:

◆ fb_queue_destroy()

void fb_queue_destroy ( FB_IOQUEUE * q )

Trash everything in a queue.

Parameters

q	the queue to free.

Here is the call graph for this function:

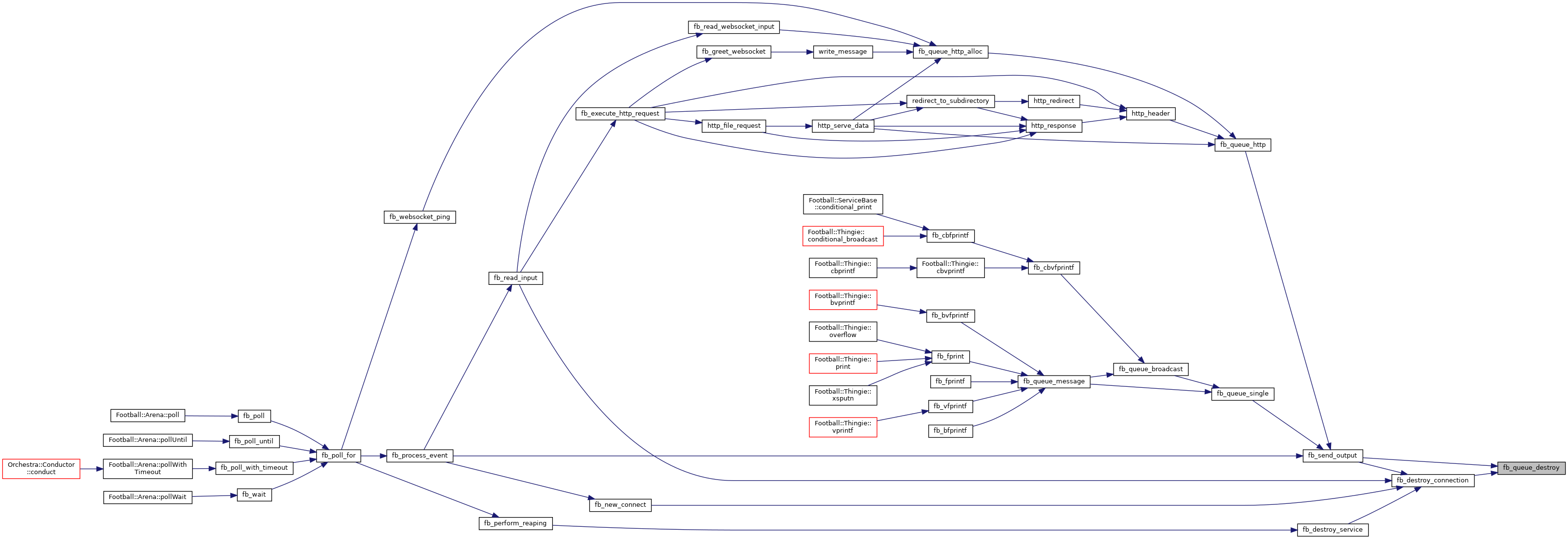

Here is the caller graph for this function:

◆ fb_queue_empty()

bool fb_queue_empty ( FB_IOQUEUE * q )

Check if a queue empty is empty.

Returns: true if the queue is empty.

Here is the caller graph for this function:

◆ fb_queue_event()

void fb_queue_event ( FB_EVENT * event )

Queue an event. Only used for fallback mode on HTTP port, when we need to deliver a connection arrival and then the command, so size is limited to 1.

Parameters

event the event to queue

Here is the caller graph for this function:

◆ fb_read_input()

FB_EVENT* fb_read_input	(	FB_EVENT *	ev,
		FB_CONNECTION *	connection
	)

Read input based on protocol and state. If applicable, returns an event for the input.

FB_EVENT_INPUT is returned when there is input
FB_EVENT_CONNECT is returned on greeting or WebSocket establishment
Parameters

ev a partially-filled event applicable to this input

connection the connection from which input is read

Returns
an event (if applicable), or NULL.

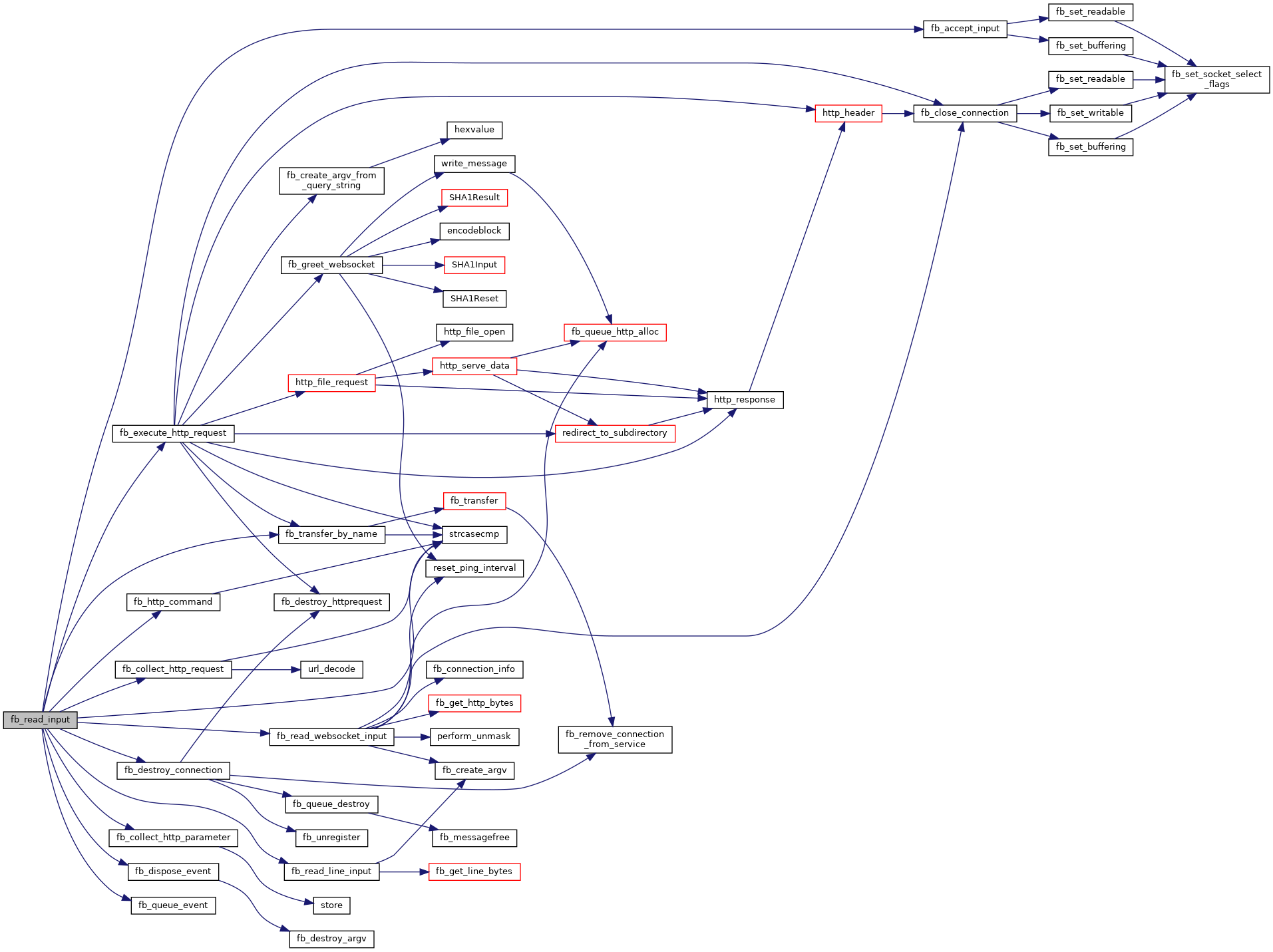

Here is the call graph for this function:

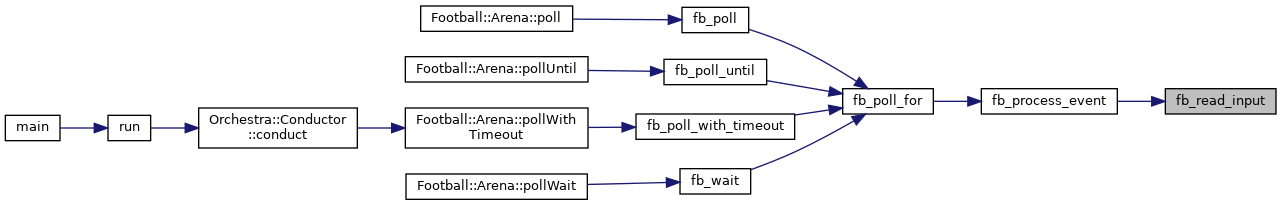

Here is the caller graph for this function:

◆ fb_read_websocket_input()

FB_EVENT* fb_read_websocket_input	(	FB_EVENT *	event,
		FB_CONNECTION *	connection
	)

Read data from WebSocket connection. Reads a WebSocket packet and decodes it, and returns an event for the payload.

Parameters

event	a partially filled event applicable to the connection.
connection	the connection to read from.

Returns: an FB_EVENT_INPUT for the message received, or NULL if the packet is incomplete.

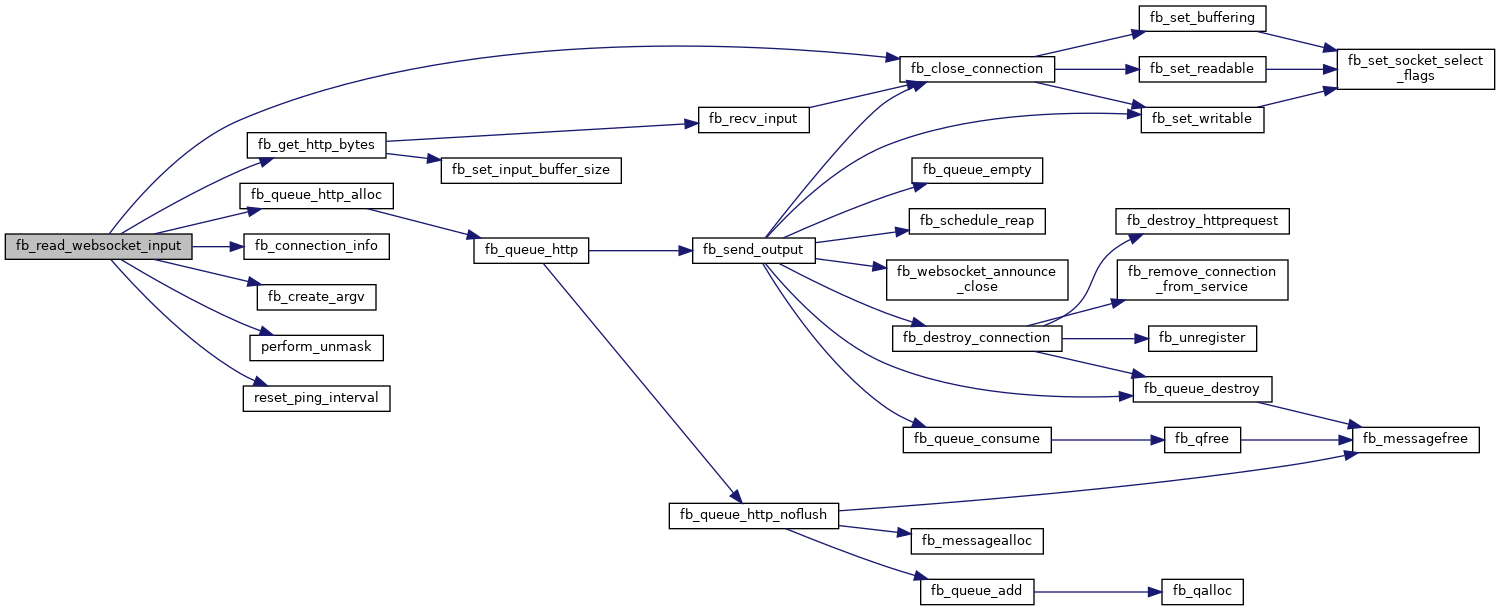

Here is the call graph for this function:

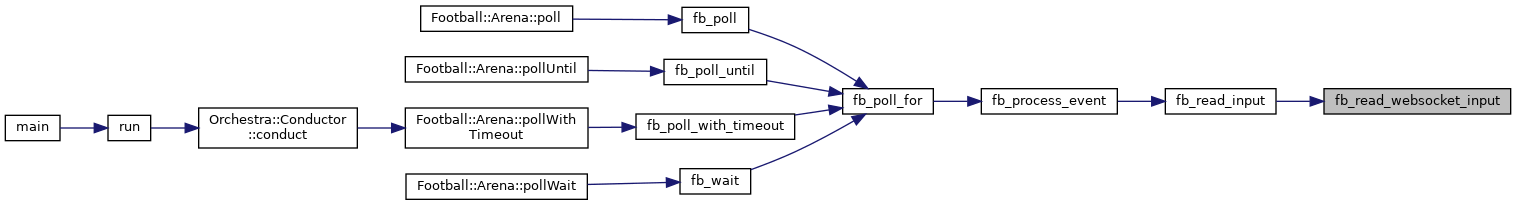

Here is the caller graph for this function:

◆ fb_recv_input()

bool fb_recv_input	(	FB_CONNECTION *	connection,
		ssize_t	byte_count
	)

Read some bytes directly from a socket or via TLS if encrypted. Handle connection closing and errors.

Parameters

connection	the connection to read input from.
byte_count	the number of bytes to read

Returns: true if the byte count is met, false otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_register()

bool fb_register	(	int	socket_fd,
		FB_SOCKETTYPE	type,
		void *	thing
	)

Add a socket to the registry.

Parameters

socket_fd	The file descriptor of the socket being added.
type	Type of socket (service, connection, user...)
thing	Pointer of type indicated by 'type'.

Returns: true on success, false on failure

Here is the call graph for this function:

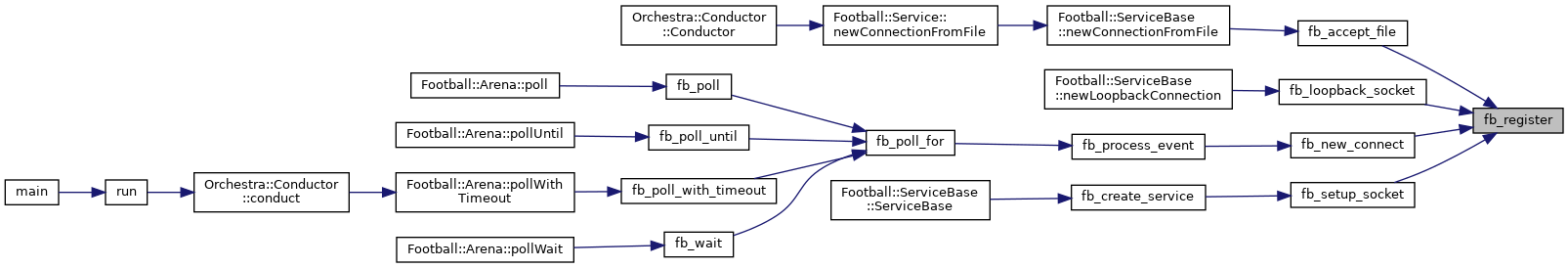

Here is the caller graph for this function:

◆ fb_schedule_reap()

void fb_schedule_reap ( FB_SERVICE * service )

Schedule a service for reaping when it has no connections left.

Here is the caller graph for this function:

◆ fb_send_output()

FB_EVENT* fb_send_output	(	FB_EVENT *	event,
		FB_CONNECTION *	connection
	)

Write output to a connection from the queue. Events are generated for connection closure only; there are none for writing.

If the socket is in a closing state, when the buffer is empty, close the connection.

Parameters

event	A partially complete event record, or NULL. If NULL, events are delayed (along with moving state toward closure) until a later time, when an event can be returned for those state changes.
connection	The connection whose queued data is to be sent.

Returns: FB_EVENT_CLOSE or NULL

Here is the call graph for this function:

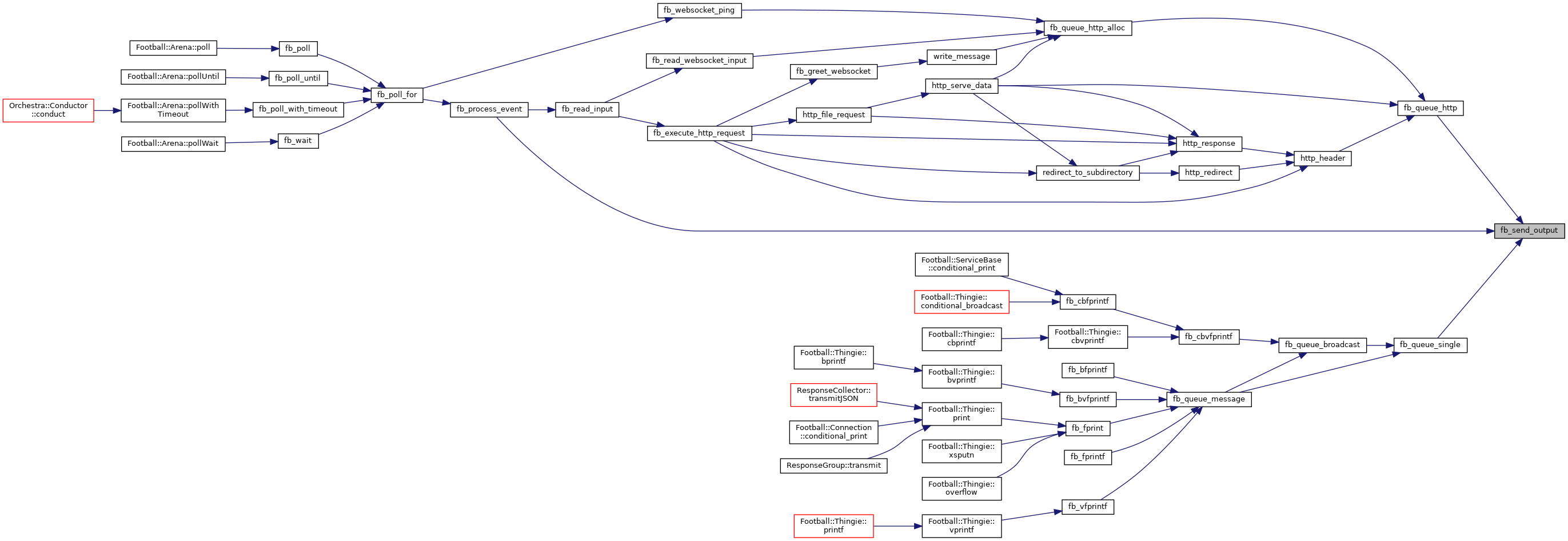

Here is the caller graph for this function:

◆ fb_set_buffering()

void fb_set_buffering	(	int	socket_fd,
		bool	enable
	)

Enable/disable writing on a socket. This is used to remember TLS data buffering.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true if TLS is buffering, false if it is not.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_set_input_buffer_size()

bool fb_set_input_buffer_size	(	FB_CONNECTION *	connection,
		size_t	size
	)

Expand the input buffer to a specified size.

Parameters

connection	The connection whose buffer size is being set.
size	the desired size.

Returns: true on success, false on failure.

Here is the caller graph for this function:

◆ fb_set_readable()

void fb_set_readable	(	int	socket_fd,
		bool	enable
	)

Enable/disable reading on a socket.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true to enable reads from the socket, false to disable

Here is the call graph for this function:

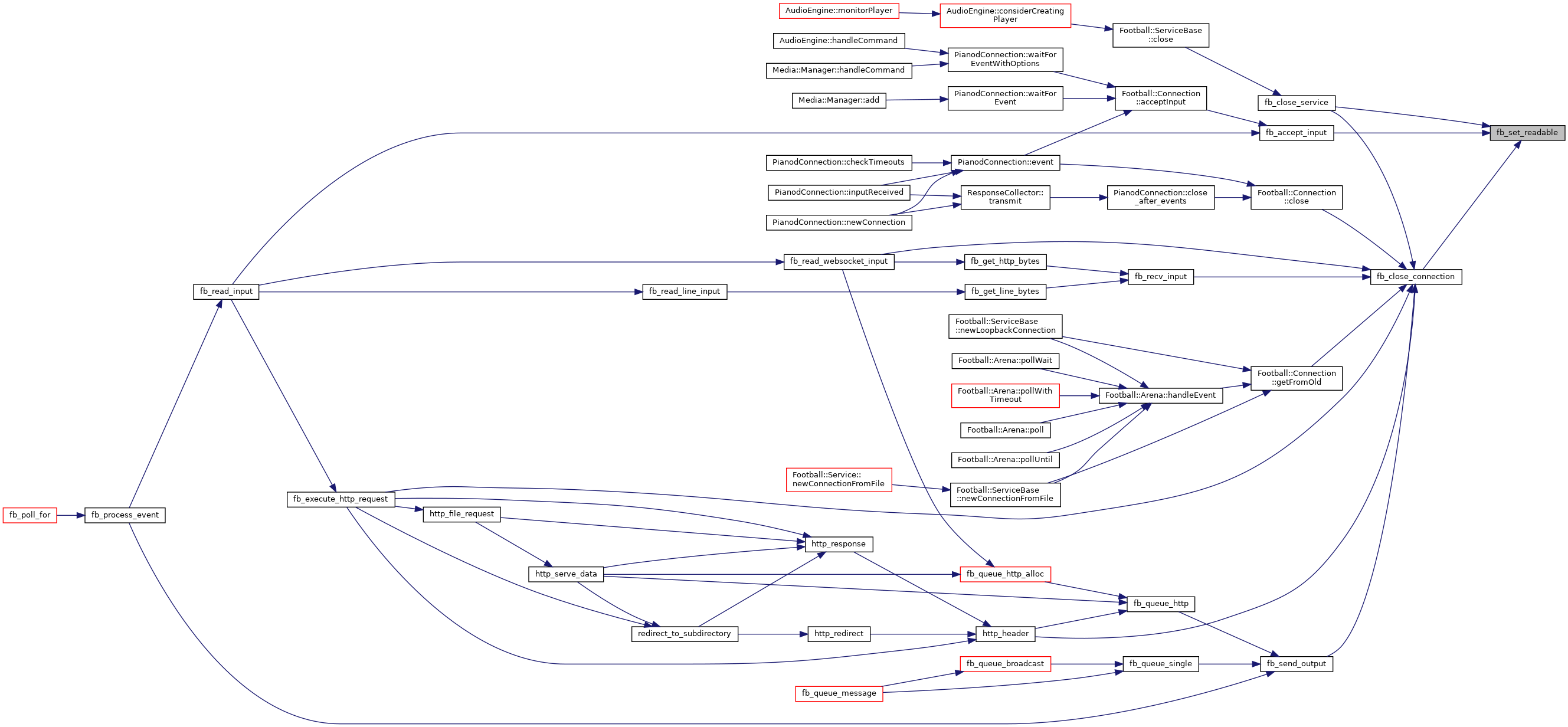

Here is the caller graph for this function:

◆ fb_set_writable()

void fb_set_writable	(	int	socket_fd,
		bool	enable
	)

Enable/disable writing on a socket. This is used within Football, enabled when fresh data is queued for a socket and disabled when the buffer is empty.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true to enable write-polling on the socket

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_transfer_by_name()

bool fb_transfer_by_name	(	FB_CONNECTION *	connection,
		const char *	name
	)

Transfer a connection to a related service.

Parameters

connection	The connection to transfer.
name	The name of the service to reassign it to.

Here is the call graph for this function:

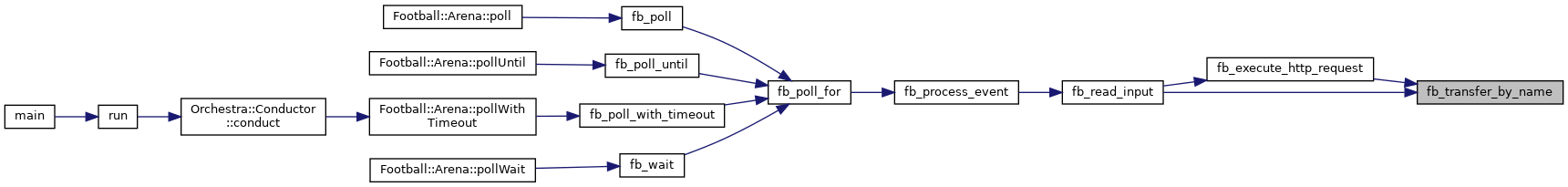

Here is the caller graph for this function:

◆ fb_unregister()

void fb_unregister ( int socket_fd )

Remove a socket from the registry.

Always succeeds, unless there's a bug.

Parameters

socket_fd the file descriptor to unregister

Here is the caller graph for this function:

◆ fb_websocket_announce_close()

bool fb_websocket_announce_close ( FB_CONNECTION * connection )

Send a WebSocket close packet. This should be called as last thing prior to closing the connection.

Parameters

connection The connection to write the close to.

Returns: true on success, false on failure.

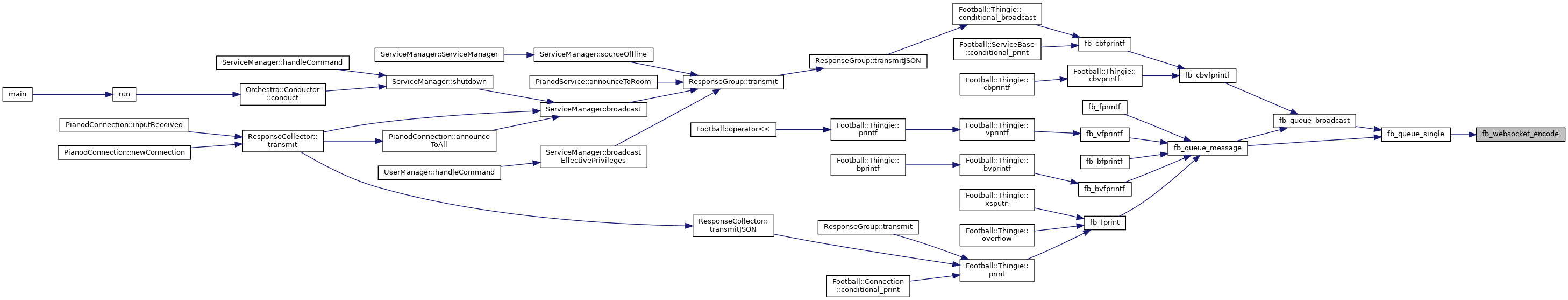

Here is the caller graph for this function:

◆ fb_websocket_encode()

bool fb_websocket_encode ( FB_CONNECTION * connection )

Build WebSocket packets from output. Checks if there's a complete packet (line) in the assembly queue. When there is, assemble a WebSocket packet and put it in the output queue.

Parameters

connection The connection to check.

Returns: true on success, false on failure.

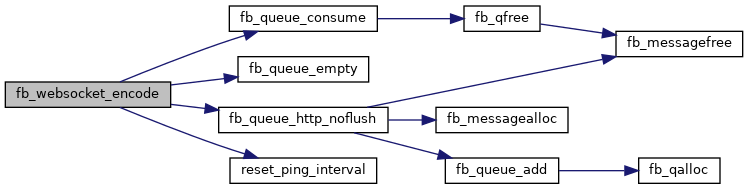

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fb_websocket_ping()

bool fb_websocket_ping ( FB_CONNECTION * connection )

Send a WebSocket ping packet. Some browsers have timeouts, so we need to send pings as keep-alives.

Parameters

connection The connection to check.

Returns: true on success, false on failure.

Here is the call graph for this function:

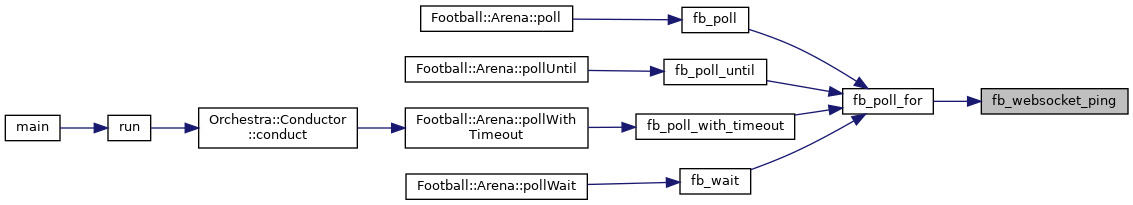

Here is the caller graph for this function:

ev	a partially-filled event applicable to this input
connection	the connection from which input is read

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ FAR_FUTURE

◆ fb_encrypted_socket

◆ fb_http_socket

◆ fb_ip6_socket

◆ fb_mutex_destroy

◆ fb_mutex_init

◆ fb_mutex_lock

◆ fb_mutex_unlock

◆ fb_perror

◆ FB_WHERE

Typedef Documentation

◆ FB_HTTPREQUEST

◆ FB_INPUTBUFFER

◆ FB_IOQUEUE

◆ FB_LOG_TYPE

◆ FB_MESSAGE

◆ FB_MESSAGELIST

◆ FB_SOCKETADDR

◆ FB_SOCKETID

◆ FB_SOCKETSTATE

◆ FB_SOCKETTYPE

Enumeration Type Documentation

◆ fb_log_types_t

◆ fb_socket_state_t

◆ fb_socket_type_t

◆ fb_socketid_t

Function Documentation

◆ fb_accept_connection()

◆ fb_collect_http_parameter()

◆ fb_collect_http_request()

◆ fb_connection_info()

◆ fb_create_argv()

◆ fb_create_argv_from_query_string()

◆ fb_destroy_argv()

◆ fb_destroy_connection()

◆ fb_destroy_httprequest()

◆ fb_destroy_service()

◆ fb_dispose_event()

◆ fb_execute_http_request()

◆ fb_free_freelists()

◆ fb_http_command()

◆ fb_messagealloc()

◆ fb_messagefree()

◆ fb_new_connect()

◆ fb_qalloc()

◆ fb_qfree()

◆ fb_queue_add()

◆ fb_queue_consume()

◆ fb_queue_destroy()

◆ fb_queue_empty()

◆ fb_queue_event()

◆ fb_read_input()

◆ fb_read_websocket_input()

◆ fb_recv_input()

◆ fb_register()

◆ fb_schedule_reap()

◆ fb_send_output()

◆ fb_set_buffering()

◆ fb_set_input_buffer_size()

◆ fb_set_readable()

◆ fb_set_writable()

◆ fb_transfer_by_name()

◆ fb_unregister()

◆ fb_websocket_announce_close()

◆ fb_websocket_encode()

◆ fb_websocket_ping()
