fb_event.c File Reference

Football I/O event handlers. More...

#include <config.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <stdarg.h>
#include <ctype.h>
#include <errno.h>
#include <assert.h>
#include <sys/types.h>
#include <stdbool.h>
#include "fb_service.h"

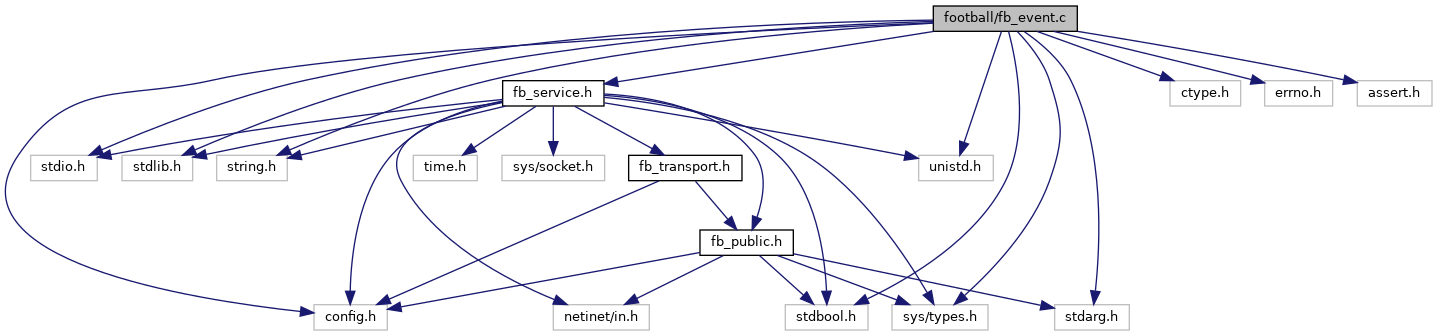

Include dependency graph for fb_event.c:

Macros
#define	_BSD_SOURCE   /* snprintf() */
#define	_DEFAULT_SOURCE
#define	_POSIX_C_SOURCE   200112L

Functions
static FB_MESSAGE *	fb_create_message (const char *format, va_list parameters)
static ssize_t	fb_queue_single (FB_CONNECTION *connection, FB_MESSAGE *message)
static ssize_t	fb_queue_broadcast (FB_SERVICE *service, FB_MESSAGE *message, bool(*callback)(FB_CONNECTION *))
ssize_t	fb_queue_message (void *thing, FB_MESSAGE *message, bool broadcast)
ssize_t	fb_fprint (void *thing, const char *bytes, ssize_t length)
	Adds an unformatted message to the output queue. More...
ssize_t	fb_fprintf (void *thing, const char *format,...)
	Add messages to output queues in various forms and styles. More...
ssize_t	fb_vfprintf (void *thing, const char *format, va_list parameters)
ssize_t	fb_bfprintf (void *thing, const char *format,...)
ssize_t	fb_bvfprintf (void *thing, const char *format, va_list parameters)
ssize_t	fb_cbfprintf (void *thing, bool(*callback)(FB_CONNECTION *), const char *format,...)
ssize_t	fb_cbvfprintf (void *thing, bool(*callback)(FB_CONNECTION *), const char *format, va_list parameters)
FB_EVENT *	fb_send_output (FB_EVENT *event, FB_CONNECTION *connection)
bool	fb_set_input_buffer_size (FB_CONNECTION *connection, size_t size)
bool	fb_recv_input (FB_CONNECTION *connection, ssize_t byte_count)
static char *	fb_get_line_bytes (FB_CONNECTION *connection, size_t *length)
FB_EVENT *	fb_read_line_input (FB_EVENT *event, FB_CONNECTION *connection)
FB_EVENT *	fb_read_input (FB_EVENT *ev, FB_CONNECTION *connection)
FB_EVENT *	fb_new_connect (FB_EVENT *event, FB_SERVICE *service)

Detailed Description

Football I/O event handlers.

• Football socket abstraction layer

  Author

  Perette Barella

  Date

  2012-03-03

  Copyright

  Copyright 2012-2021 Devious Fish. All rights reserved.

Macro Definition Documentation

_BSD_SOURCE

#define _BSD_SOURCE   /* snprintf() */

_DEFAULT_SOURCE

#define _DEFAULT_SOURCE

_POSIX_C_SOURCE

#define _POSIX_C_SOURCE   200112L

Function Documentation

fb_bfprintf()

ssize_t fb_bfprintf	(	void *	thing,
		const char *	format,
			...
	)

See also

fb_fprintf

Here is the call graph for this function:

fb_bvfprintf()

ssize_t fb_bvfprintf	(	void *	thing,
		const char *	format,
		va_list	parameters
	)

See also

fb_fprintf

Here is the call graph for this function:

Here is the caller graph for this function:

fb_cbfprintf()

ssize_t fb_cbfprintf	(	void *	thing,
		bool(*)(FB_CONNECTION *)	callback,
		const char *	format,
			...
	)

See also

fb_fprintf

Here is the call graph for this function:

Here is the caller graph for this function:

fb_cbvfprintf()

ssize_t fb_cbvfprintf	(	void *	thing,
		bool(*)(FB_CONNECTION *)	callback,
		const char *	format,
		va_list	parameters
	)

See also

fb_fprintf

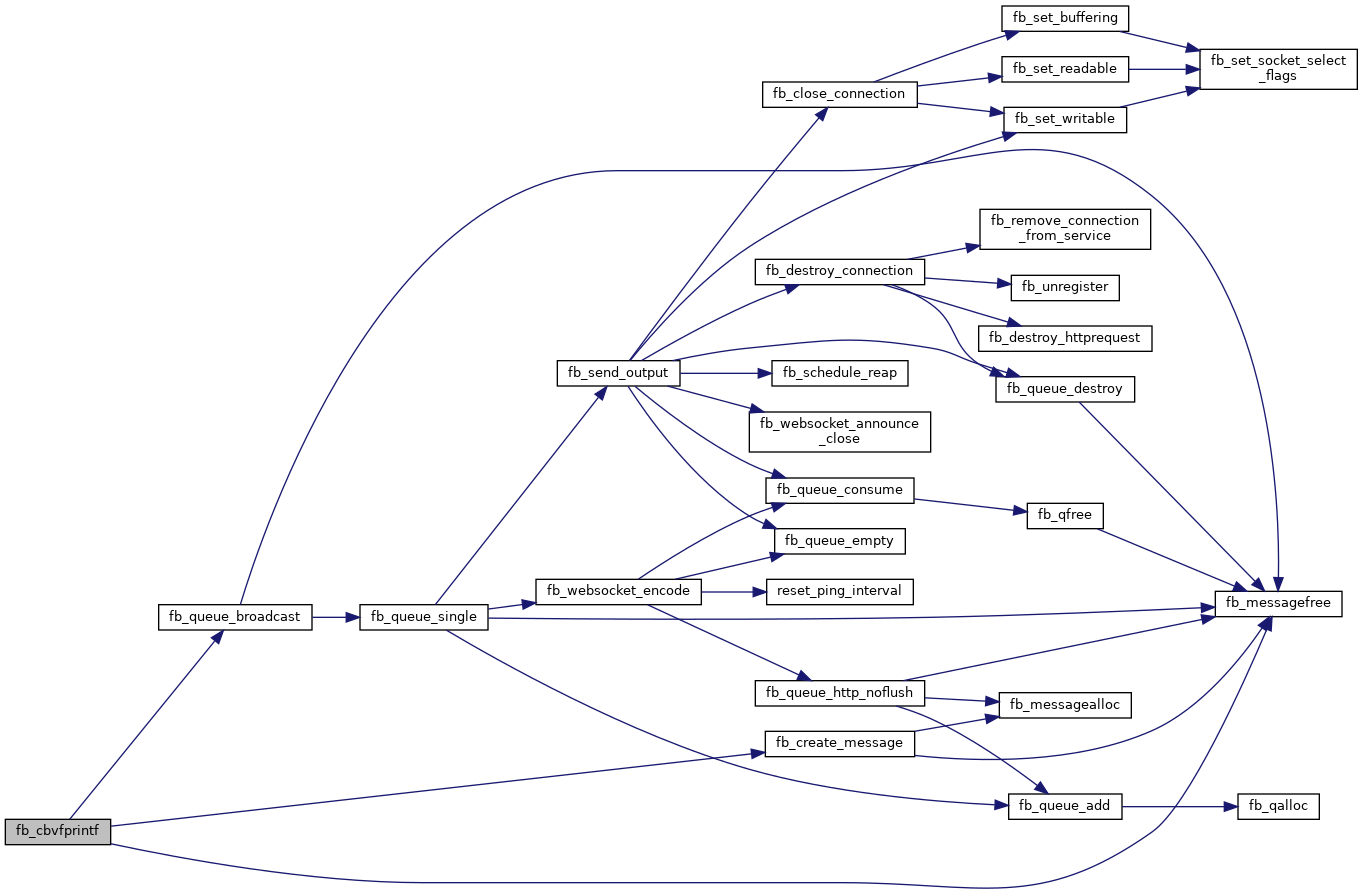

Here is the call graph for this function:

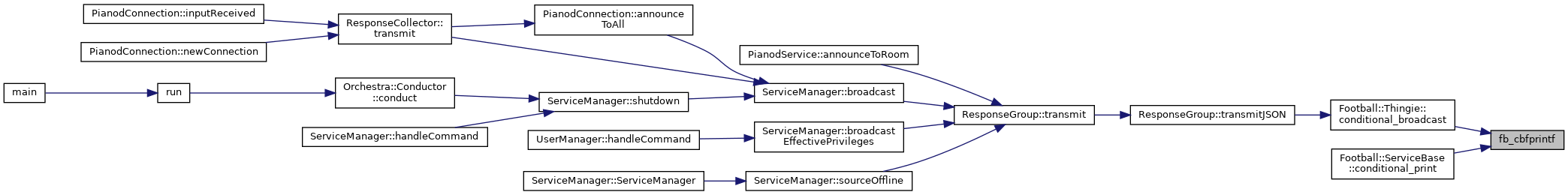

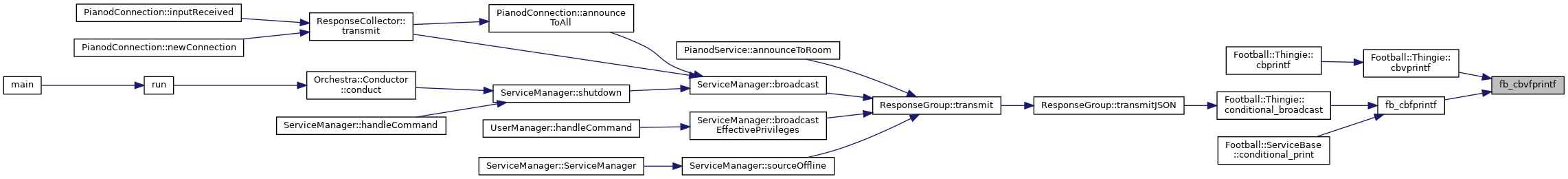

Here is the caller graph for this function:

fb_create_message()

static FB_MESSAGE* fb_create_message ( const char *  format, va_list  parameters  )

static

Create and populate a new message block.

Parameters

format	a printf-style format string
parameters	parameters to the format string

Here is the call graph for this function:

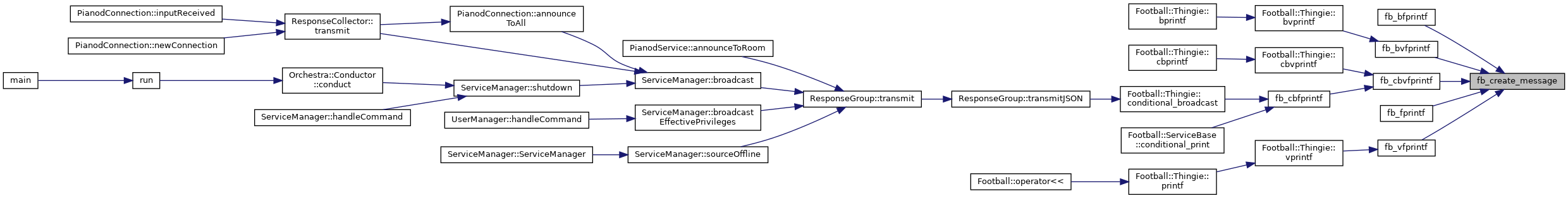

Here is the caller graph for this function:

fb_fprint()

ssize_t fb_fprint	(	void *	thing,
		const char *	bytes,
		ssize_t	length
	)

Adds an unformatted message to the output queue.

Parameters

thing	the destined service, connection or event.
bytes	the bytes to transmit.
length	number of bytes in the message.

Returns

-1 on error, number of bytes written on success or partial success.

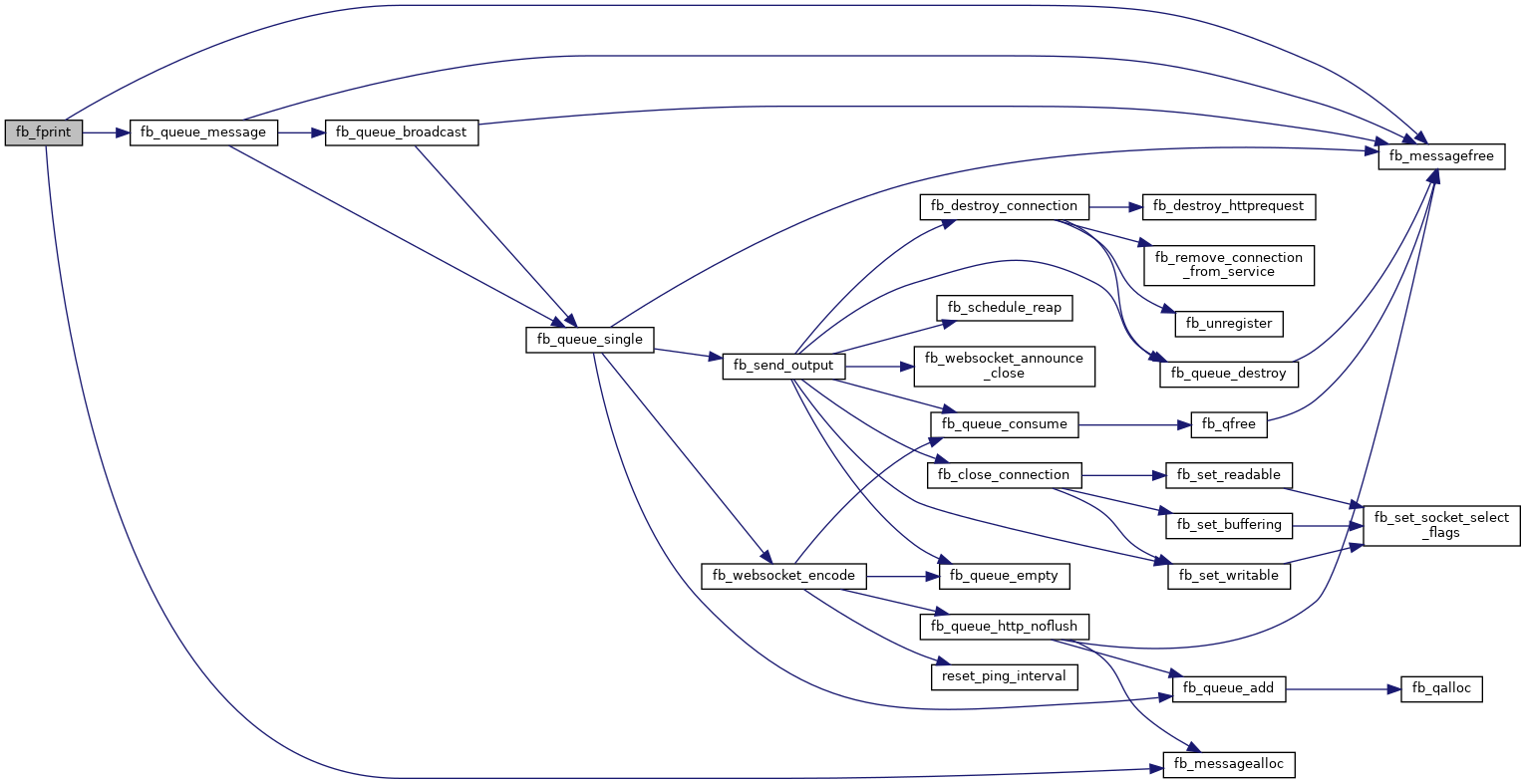

Here is the call graph for this function:

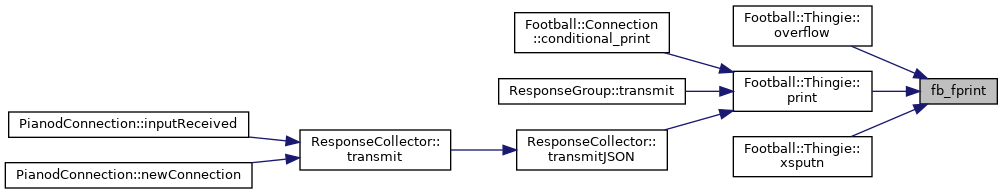

Here is the caller graph for this function:

fb_fprintf()

ssize_t fb_fprintf	(	void *	thing,
		const char *	format,
			...
	)

Add messages to output queues in various forms and styles.

All forms take an opaque type and determine if it's a connection or service, so you can write code once and deal with both single and broadcast messages.

• 'b' variants broadcast, given either a connection or service. Services always broadcast, regardless of service.
• 'cb' variants broadcast only to those connections identified buy the supplied callback function returning true.
• 'v' accepts a pointer to the format arguments.

  Parameters

  thing	the destined service, connection or event.
  format	a printf format string, with values to follow.

  Returns

  -1 on error, number of bytes written on success or partial success.

Here is the call graph for this function:

fb_get_line_bytes()

static char* fb_get_line_bytes ( FB_CONNECTION *  connection, size_t *  length  )

static

Read line-oriented input until encountering a newline. If there isn't a newline, the read input is kept in the connection's input buffer between invocations.

Parameters

connection	the connection to read from.
length	the number of bytes in the completed input

Returns

a pointer to the input, or NULL if it is not complete yet.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_new_connect()

FB_EVENT* fb_new_connect	(	FB_EVENT *	event,
		FB_SERVICE *	service
	)

Accept a new connection and return an event announcing it if applicable.

Parameters

event	a partially filled event applicable to the new connection.
service	the service on which the connection is arriving.

Returns

FB_EVENT_CONNECTED for successful line-oriented connections, NULL otherwise.

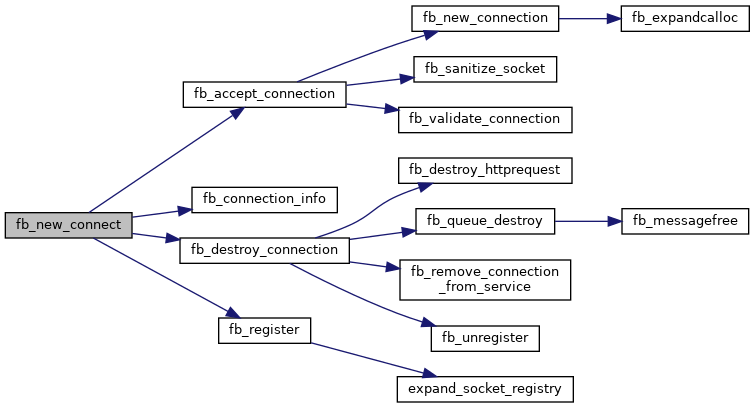

Here is the call graph for this function:

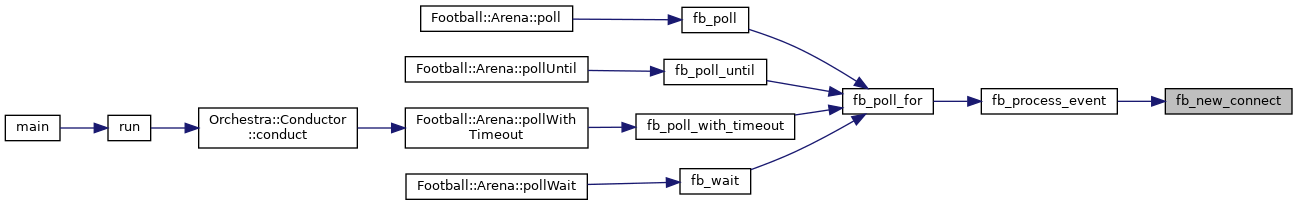

Here is the caller graph for this function:

fb_queue_broadcast()

static ssize_t fb_queue_broadcast ( FB_SERVICE *  service, FB_MESSAGE *  message, bool(*)(FB_CONNECTION *)  callback  )

static

Put a message into all a service's queues.

Parameters

service	the service to which the message will be sent.
message	the message to send.
callback	If NULL, broadcast to all connections. Otherwise, broadcast only if the specified callback function returns true.

Returns

length on success (queued to all connections successfully). On failure or partial failure, return -1.

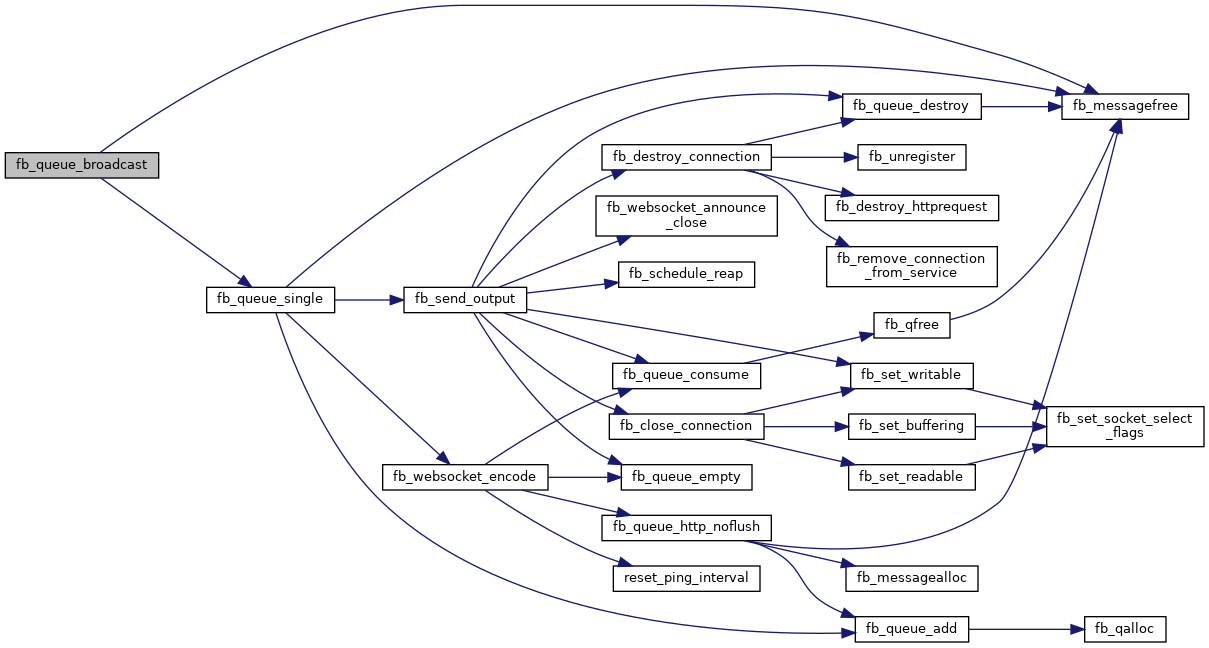

Here is the call graph for this function:

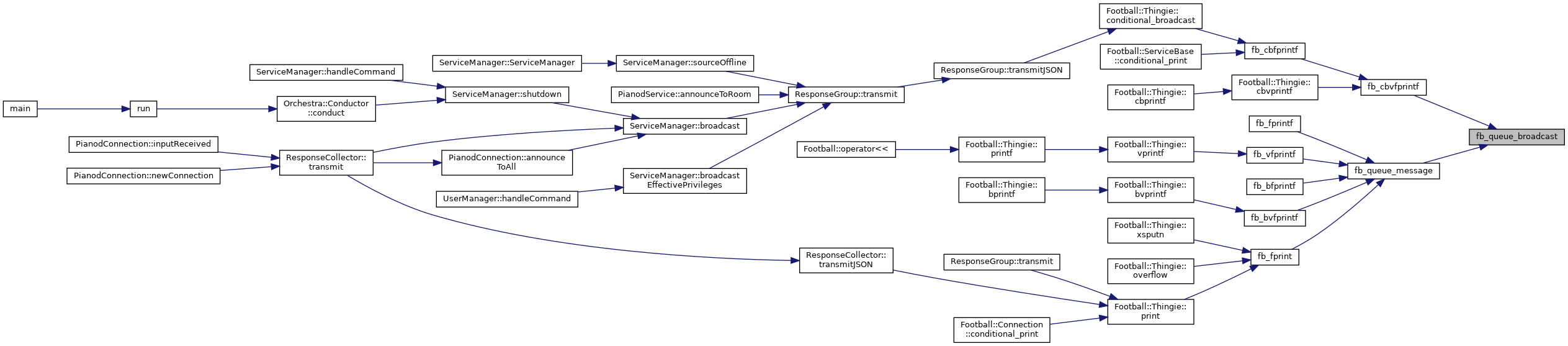

Here is the caller graph for this function:

fb_queue_message()

ssize_t fb_queue_message	(	void *	thing,
		FB_MESSAGE *	message,
		bool	broadcast
	)

Add a message message to a service, connection, or event.

Parameters

thing	The service, connection or event to which message is sent.
message	The message to send.
broadcast	True if the message should be sent to all connections. Broadcast is inherently true if 'thing' is a service.

Returns

the length of the message, or -1 on error, as per stdio. In case of only partial success... Success.

Here is the call graph for this function:

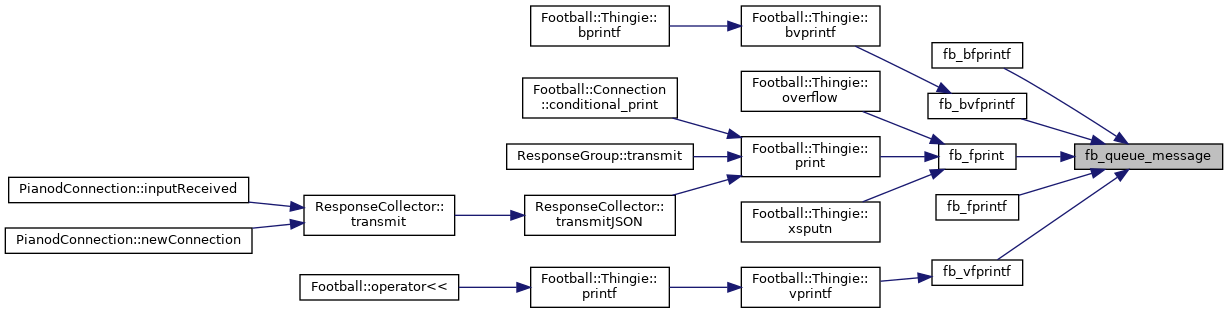

Here is the caller graph for this function:

fb_queue_single()

static ssize_t fb_queue_single ( FB_CONNECTION *  connection, FB_MESSAGE *  message  )

static

Put a message into a connection's output queue.

Parameters

connection	the connection to which the message is to be sent.
message	a message to send.

Returns

length of message queued on success, or -1 on failure.

Add the message to the queue

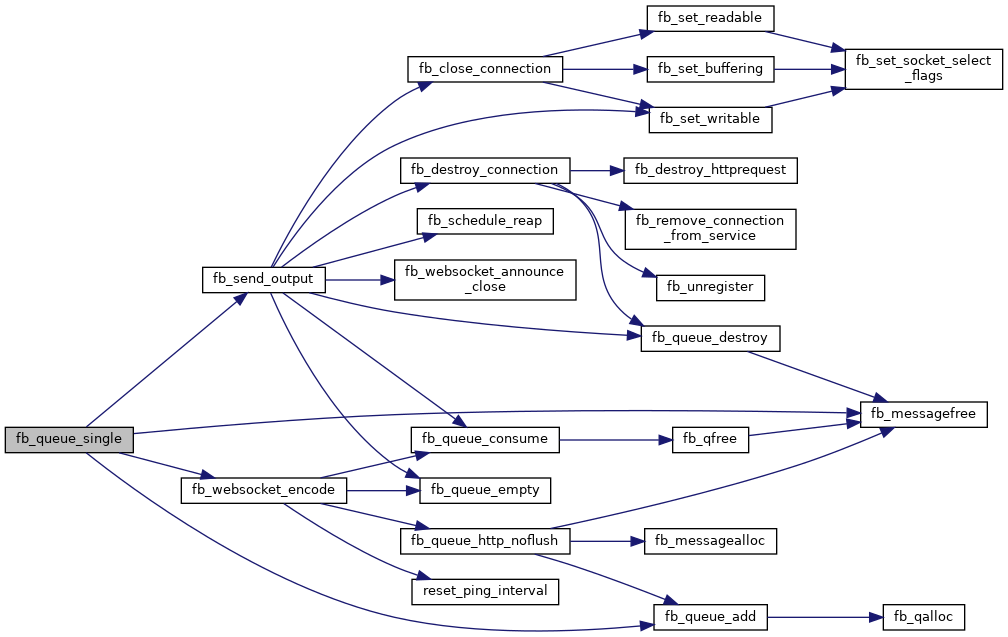

Here is the call graph for this function:

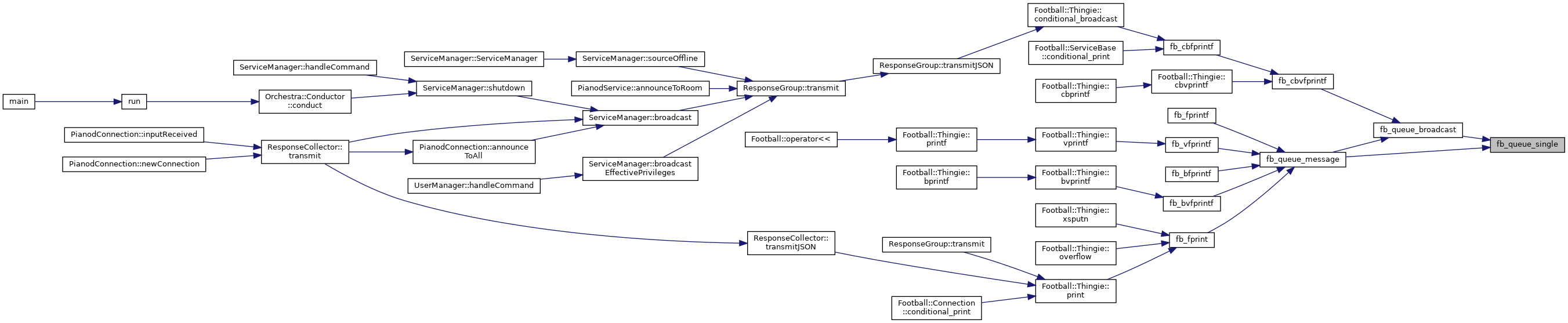

Here is the caller graph for this function:

fb_read_input()

FB_EVENT* fb_read_input	(	FB_EVENT *	ev,
		FB_CONNECTION *	connection
	)

Read input based on protocol and state. If applicable, returns an event for the input.

• FB_EVENT_INPUT is returned when there is input
• FB_EVENT_CONNECT is returned on greeting or WebSocket establishment

  Parameters

  ev	a partially-filled event applicable to this input
  connection	the connection from which input is read

  Returns

  an event (if applicable), or NULL.

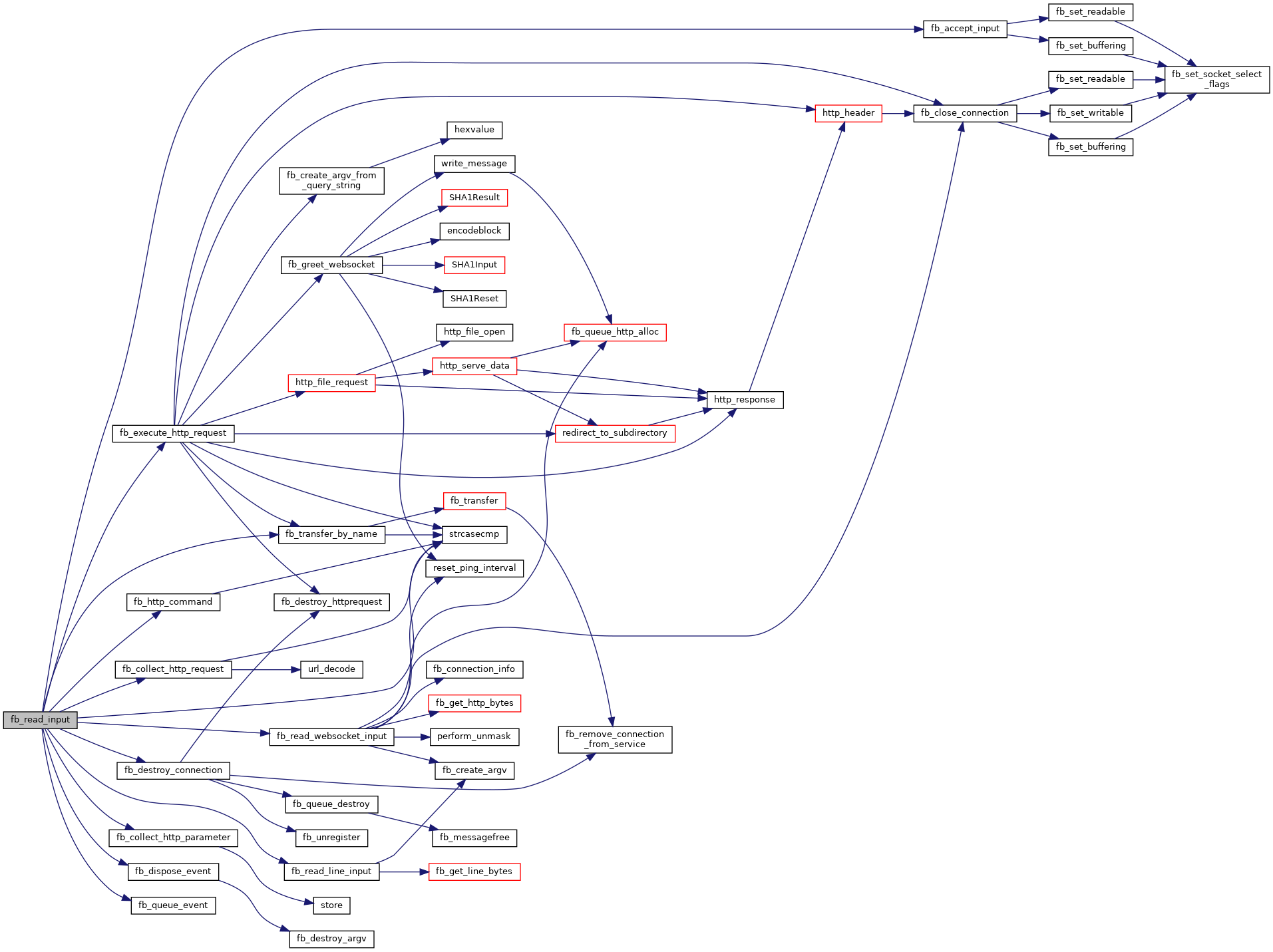

Here is the call graph for this function:

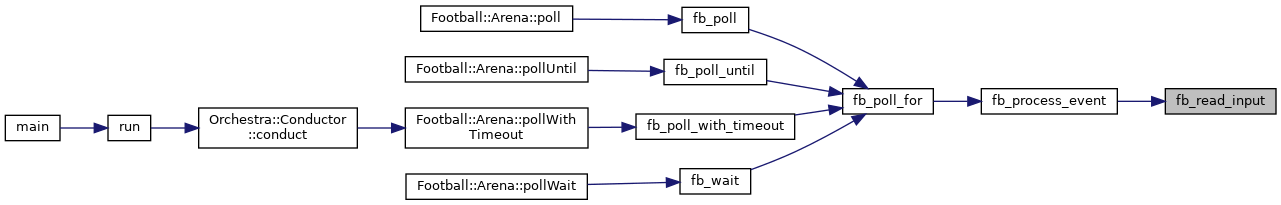

Here is the caller graph for this function:

fb_read_line_input()

FB_EVENT* fb_read_line_input	(	FB_EVENT *	event,
		FB_CONNECTION *	connection
	)

Read input from a connection, return it as an event. The event has the raw command in 'command'. The event has a broken up command in 'argv'. On failure, 'argv' may be null.

Parameters

event	a partially filled event applicable to the connection.
connection	the connection from which input is read

Returns

An FB_EVENT_INPUT event, or input is incomplete.

Here is the call graph for this function:

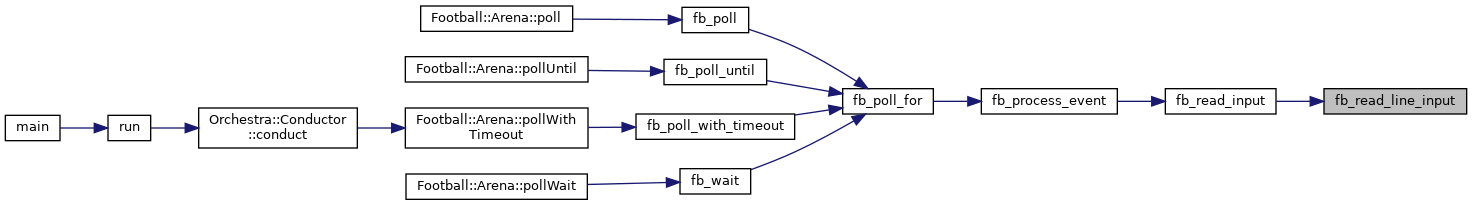

Here is the caller graph for this function:

fb_recv_input()

bool fb_recv_input	(	FB_CONNECTION *	connection,
		ssize_t	byte_count
	)

Read some bytes directly from a socket or via TLS if encrypted. Handle connection closing and errors.

Parameters

connection	the connection to read input from.
byte_count	the number of bytes to read

Returns

true if the byte count is met, false otherwise.

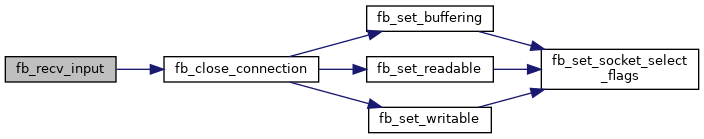

Here is the call graph for this function:

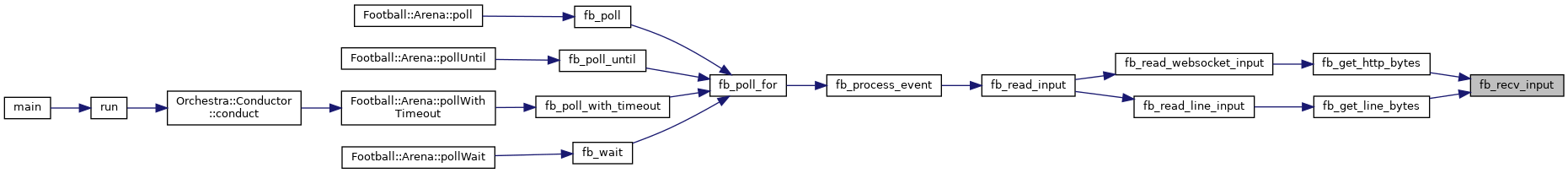

Here is the caller graph for this function:

fb_send_output()

FB_EVENT* fb_send_output	(	FB_EVENT *	event,
		FB_CONNECTION *	connection
	)

Write output to a connection from the queue. Events are generated for connection closure only; there are none for writing.

If the socket is in a closing state, when the buffer is empty, close the connection.

Parameters

event	A partially complete event record, or NULL. If NULL, events are delayed (along with moving state toward closure) until a later time, when an event can be returned for those state changes.
connection	The connection whose queued data is to be sent.

Returns

FB_EVENT_CLOSE or NULL

Here is the call graph for this function:

Here is the caller graph for this function:

fb_set_input_buffer_size()

bool fb_set_input_buffer_size	(	FB_CONNECTION *	connection,
		size_t	size
	)

Expand the input buffer to a specified size.

Parameters

connection	The connection whose buffer size is being set.
size	the desired size.

Returns

true on success, false on failure.

Here is the caller graph for this function:

fb_vfprintf()

ssize_t fb_vfprintf	(	void *	thing,
		const char *	format,
		va_list	parameters
	)

See also

fb_fprintf

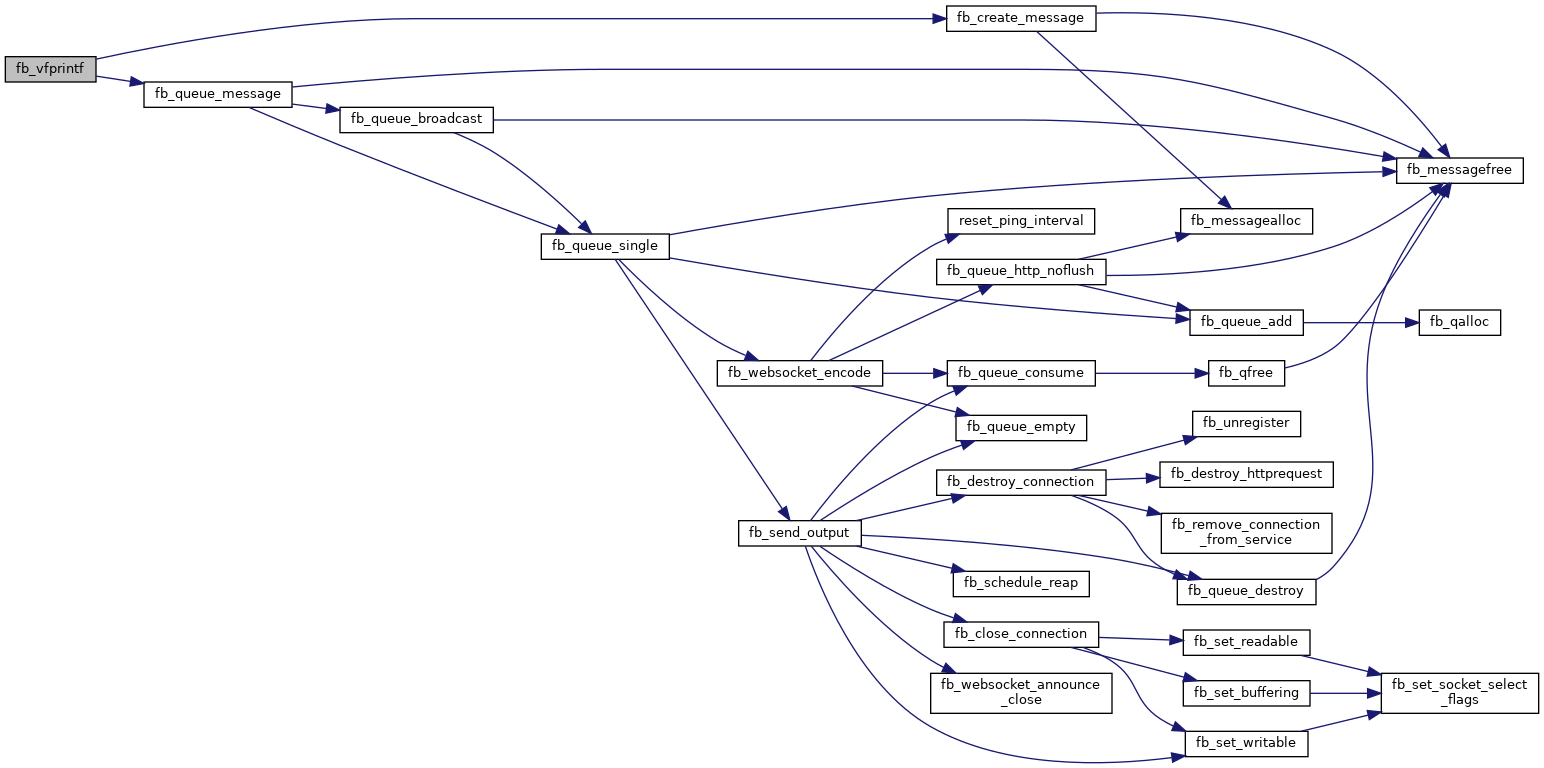

Here is the call graph for this function:

Here is the caller graph for this function:
