ServiceManager Class Reference

Contains and manages all the services/rooms. More...

#include <servicemanager.h>

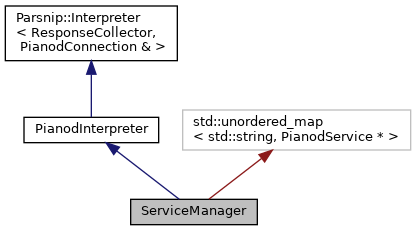

Inheritance diagram for ServiceManager:

Collaboration diagram for ServiceManager:

Public Member Functions
virtual const Parsnip::Parser::Definitions &	getParserDefinitions () override
	Retrieve the parser definitions handled by the interpreter. More...
	ServiceManager ()
virtual	~ServiceManager ()
float	periodic (void)
	Perform periodic duties, and determine when next ones are due. More...
void	shutdown (bool immediate)
	Request all services (rooms) close so pianod can shutdown. More...
bool	flush (void)
	Persist data before shutdown. More...
void	event (WaitEvent::Type type, const void *detail=nullptr, RESPONSE_CODE message=S_OK)
	Distribute an event to connections waiting on it. More...
void	event (WaitEvent::Type type, RESPONSE_CODE message=S_OK)
void	broadcastUserActions (bool v)
	Enable or disable announcing user actions to all connections. More...
bool	broadcastingActions (void)
	Check whether user actions are announced to all connections. More...
void	broadcast (const ResponseGroup &messages)
	Send a message to every user on all services/rooms. More...
void	broadcast (const ResponseGroup &messages, User *target)
	Send a message to one user on all services/rooms. More...
void	broadcastEffectivePrivileges ()
	Broadcast privileges to all users. More...
void	broadcastEffectivePrivileges (User *target)
	Broadcast privileges to a user. More...
PianodService *	createRoom (const std::string &name, const AudioSettings &audio, FB_SERVICE_OPTIONS &options)
	Add a room name/service pair to our list. More...
void	removeRoom (PianodService *service)
	Remove a room. More...
bool	userIsOnline (const User *user)
	Determine if a user is authenticated an connected in any room. More...
Public Member Functions inherited from PianodInterpreter
virtual void	registerInterpreter (PianodDispatcher &dispatcher)
	Register the interpreter with a dispatcher. More...
const HelpList	getHelp (const std::vector< std::string > &search, std::set< std::string > *option_parsers)
	Search the interpreter's definitions for any definitions matching search criteria. More...

Static Public Member Functions
static const Parsnip::Parser::Definitions &	parser_definitions ()
static const PianodSchema::CommandIds &	json_request_names (PianodSchema &schema)
	Retrieve names for our JSON requests, and make schema revisions. More...
Static Public Member Functions inherited from PianodInterpreter
static bool	optionIs (const Parsnip::Data &options, const char *name, const char *expected)
	Check if a string value exists and is case-blind equal to a particular value. More...
template<typename ValueType , typename LookupType >
static ValueType	optionalValue (const Parsnip::Data &options, const char *name, const LookupType &lookup, const ValueType default_value)
	Retrieve the ID of a string value. More...

Public Attributes
bool	broadcast_user_actions = false

Private Member Functions
virtual bool	authorizedCommand (Parsnip::Parser::CommandId command, PianodConnection &conn) override
	Check whether a command is authorized. More...
virtual ResponseCollector	handleCommand (Parsnip::Parser::CommandId command, const Parsnip::Data &options, PianodConnection &conn) override
	Command handler. More...
void	sendSourceReadyEvents (const Media::Source *const source, RESPONSE_CODE result)
	Send events to those waiting on source ready, either a specific source, any source, or all sources. More...
void	sourceReady (const Media::Source *const src)
	Prepare for a new source by alerting auto engines of it. More...
void	sourceOffline (const Media::Source *const src)
	Handle a source going offline by removing it from use. More...
void	sourceRemoved (const Media::Source *const src)
	Handle a source being deleted. More...

Private Attributes
const Parsnip::ParserRef	master_parser
	A single parser shared by all rooms. More...
const PianodSchemaRef	master_schema
	A single schema shared by all rooms. More...
PianodService *	master_service = nullptr
	The initial room/service. More...
bool	shutdown_pending = false
	Set when shutdown initiated. More...
time_t	startup_time = time (nullptr)
	Time the service manager was instantiated. More...

Additional Inherited Members
Public Types inherited from PianodInterpreter
using	HelpList = PianodDispatcher::HelpList
Protected Types inherited from PianodInterpreter
using	StringVector = std::vector< std::string >
Static Protected Attributes inherited from PianodInterpreter
static const Parsnip::Data	EmptyDictionary {Parsnip::Data::Dictionary}
	An empty dictionary, often used as a default with Parsnip::Data::getOr. More...
static const StringVector	EmptyStringVector
	An empty string vector, often used as a default with Parsnip::Data::getOr. More...

Detailed Description

Contains and manages all the services/rooms.

Constructor & Destructor Documentation

ServiceManager()

ServiceManager::ServiceManager

(

)

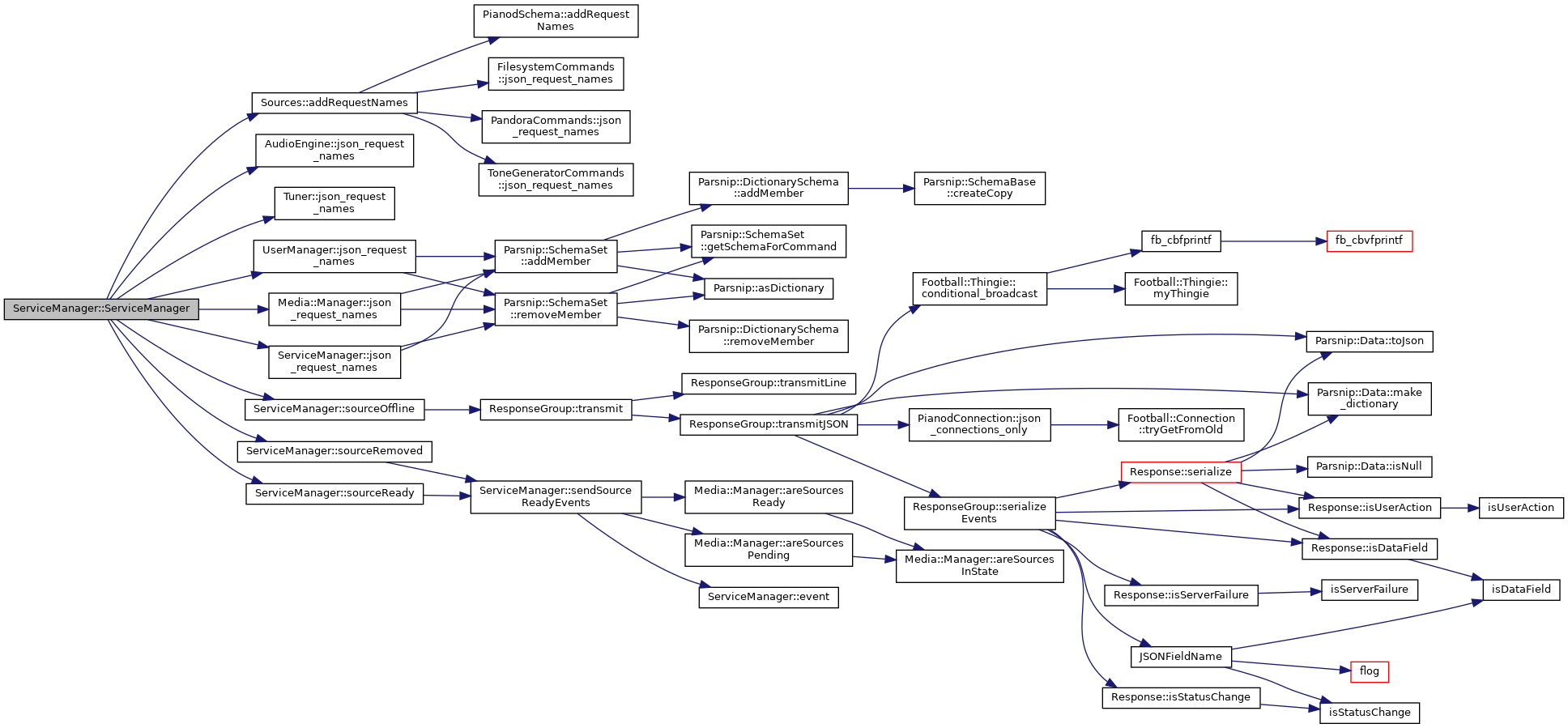

Here is the call graph for this function:

~ServiceManager()

ServiceManager::~ServiceManager ( )

virtual

Member Function Documentation

authorizedCommand()

bool ServiceManager::authorizedCommand ( Parsnip::Parser::CommandId  command_id, PianodConnection &  context  )

overrideprivatevirtual

Check whether a command is authorized.

Parameters

command_id	The command requesting execution.
context	Connection details, including authentication state and privileges.

Returns

True if allowed, false otherwise.

Implements PianodInterpreter.

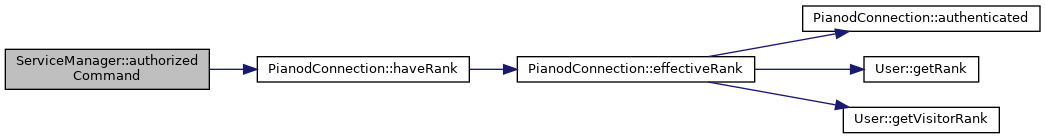

Here is the call graph for this function:

broadcast() [1/2]

void ServiceManager::broadcast

(

const ResponseGroup &

messages

)

Send a message to every user on all services/rooms.

Parameters

messages

The message(s) to broadcast.

Here is the call graph for this function:

Here is the caller graph for this function:

broadcast() [2/2]

void ServiceManager::broadcast	(	const ResponseGroup &	messages,
		User *	target
	)

Send a message to one user on all services/rooms.

Parameters

messages	The messages to broadcast.
target	The user to send the message to. If nullptr, broadcasts to visitors.

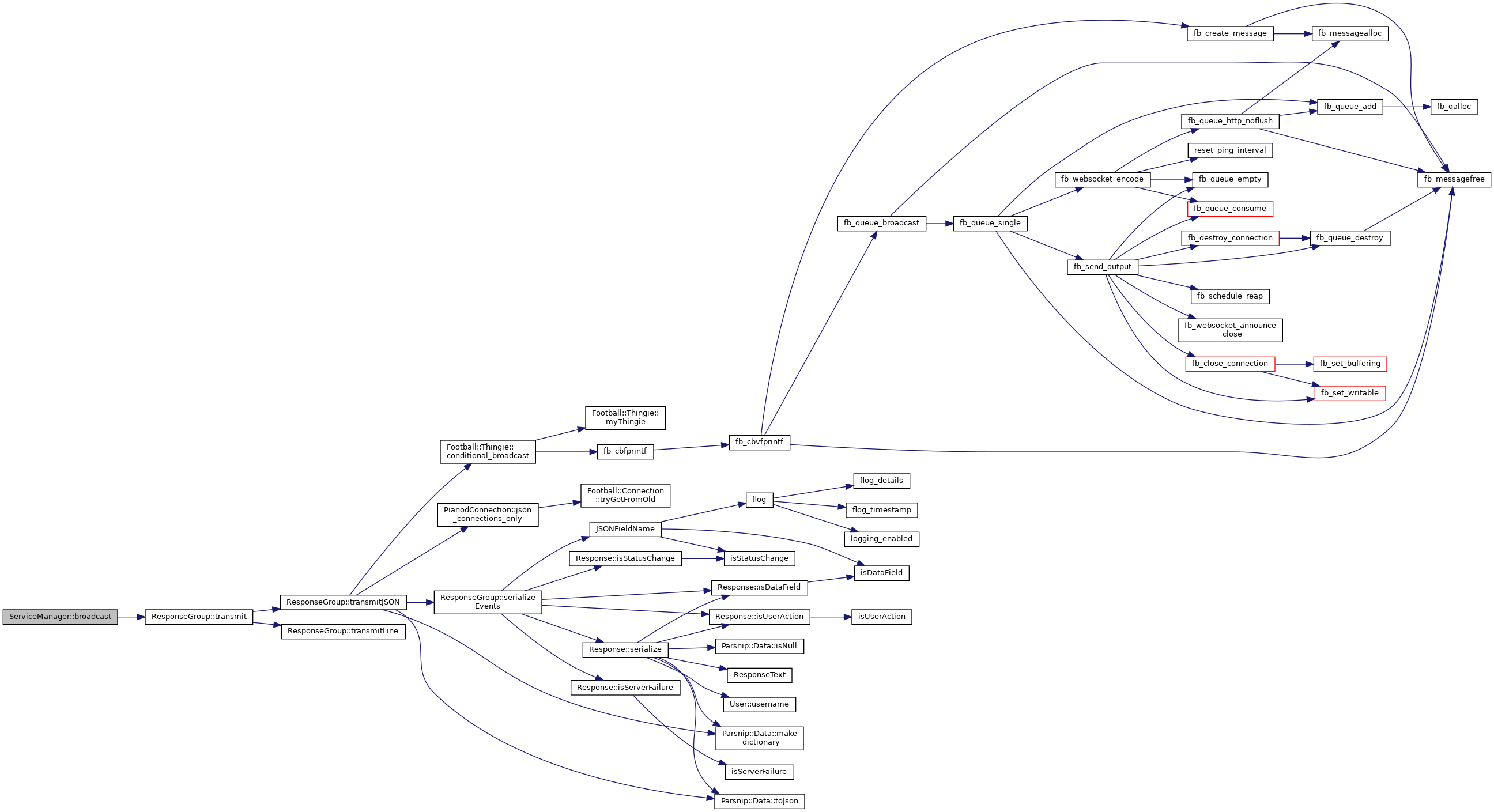

Here is the call graph for this function:

broadcastEffectivePrivileges() [1/2]

void ServiceManager::broadcastEffectivePrivileges

(

)

Broadcast privileges to all users.

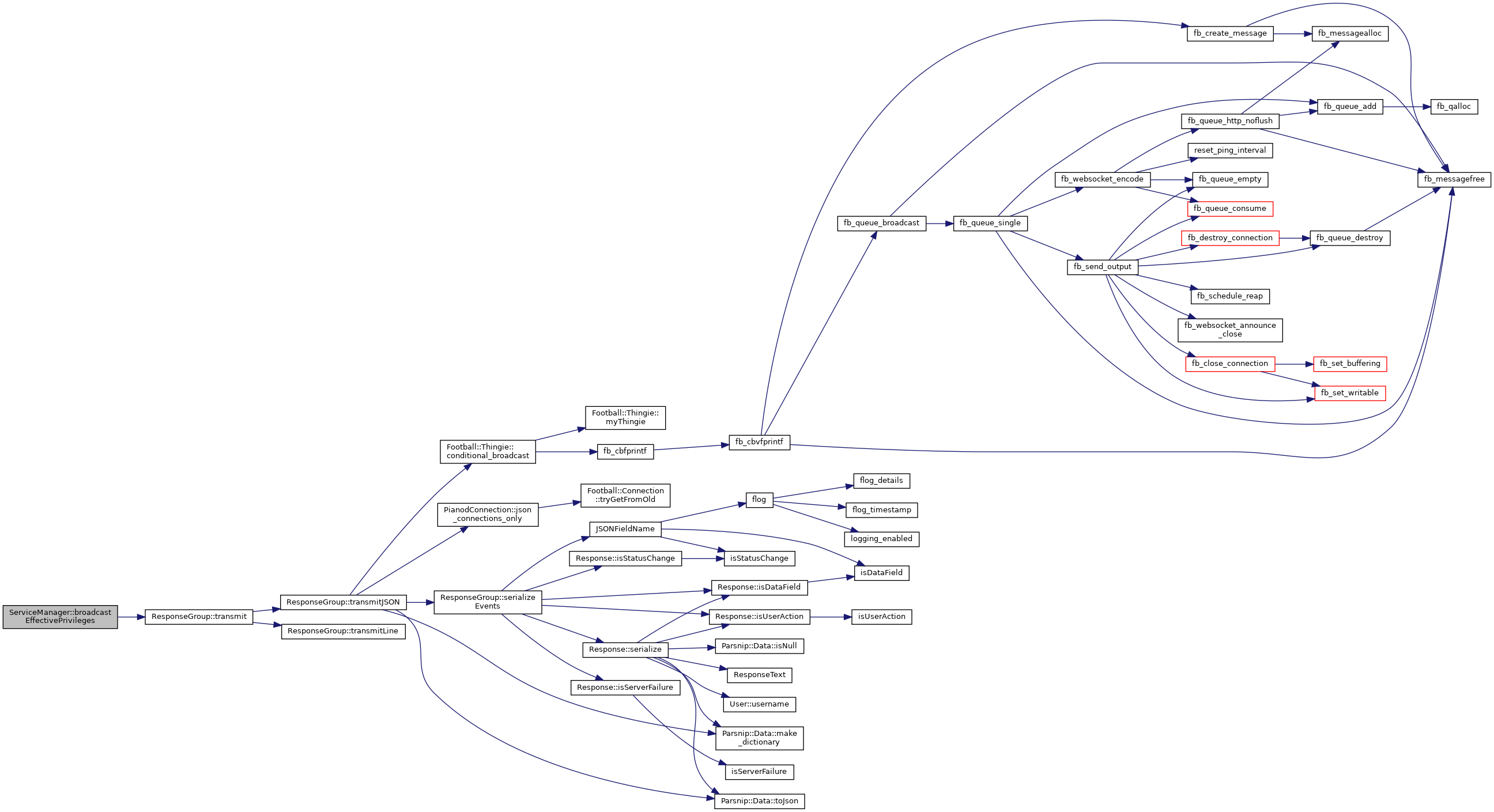

Here is the call graph for this function:

Here is the caller graph for this function:

broadcastEffectivePrivileges() [2/2]

void ServiceManager::broadcastEffectivePrivileges

(

User *

target

)

Broadcast privileges to a user.

Parameters

target

The target user, or NULL to target visitors.

Here is the call graph for this function:

broadcastingActions()

bool ServiceManager::broadcastingActions ( void  )

inline

Check whether user actions are announced to all connections.

Returns

True if enabled, false if not.

Here is the caller graph for this function:

broadcastUserActions()

void ServiceManager::broadcastUserActions ( bool  v )

inline

Enable or disable announcing user actions to all connections.

Parameters

v	True to enable, false to disable.

Here is the caller graph for this function:

createRoom()

PianodService * ServiceManager::createRoom	(	const std::string &	name,
		const AudioSettings &	audio,
		FB_SERVICE_OPTIONS &	options
	)

Add a room name/service pair to our list.

Parameters

name	The name of the room, so users can select it.
audio	Audio settings (presumably a certain audio out) for the room.
options	Football options for the room's service. Each room gets a separate service.

Here is the caller graph for this function:

event() [1/2]

void ServiceManager::event	(	WaitEvent::Type	type,
		const void *	detail = nullptr,
		RESPONSE_CODE	reply = S_OK
	)

Distribute an event to connections waiting on it.

Parameters

type	The type of event.
detail	Pointer representing a specific event instance.
reply	Status code to report to connections waiting for the event.

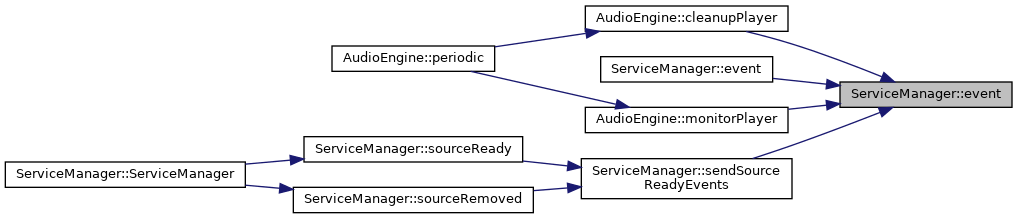

Here is the caller graph for this function:

event() [2/2]

void ServiceManager::event ( WaitEvent::Type  type, RESPONSE_CODE  message = S_OK  )

inline

See also

event (3 parameter version).

Here is the call graph for this function:

flush()

bool ServiceManager::flush

(

void

)

Persist data before shutdown.

Here is the call graph for this function:

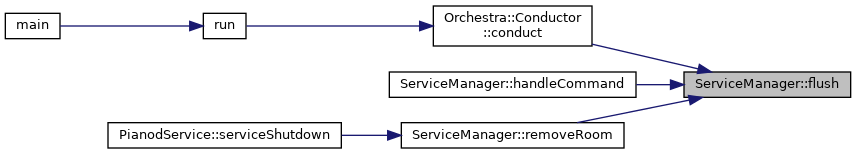

Here is the caller graph for this function:

getParserDefinitions()

const Parsnip::Parser::Definitions & ServiceManager::getParserDefinitions ( )

overridevirtual

Retrieve the parser definitions handled by the interpreter.

Returns

Parser definitions.

Implements PianodInterpreter.

Here is the call graph for this function:

handleCommand()

ResponseCollector ServiceManager::handleCommand ( Parsnip::Parser::CommandId  command_id, const Parsnip::Data &  parameters, PianodConnection &  context  )

overrideprivatevirtual

Command handler.

Parameters

command_id	Command to execute.
parameters	Command parameters.
context	Connection details, including authentication state and privileges.

Returns

Data or success/failure indications.

Exceptions

CommandError

or other exception if an error occurs.

Implements PianodInterpreter.

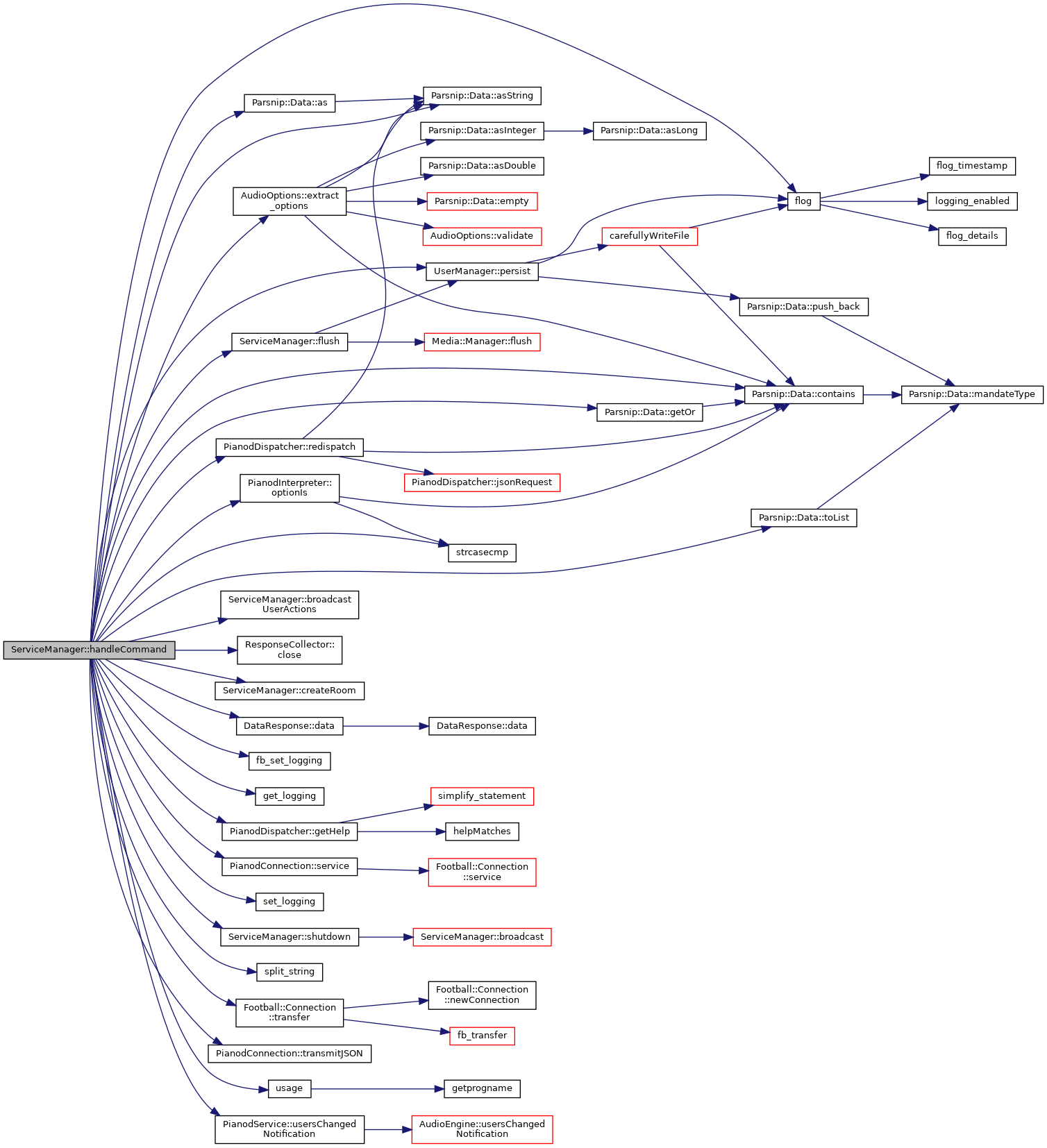

Here is the call graph for this function:

json_request_names()

const PianodSchema::CommandIds & ServiceManager::json_request_names ( PianodSchema &  schema )

static

Retrieve names for our JSON requests, and make schema revisions.

Parameters

schema

The schemaset containing our requests.

Returns

Request name to command ID mappings.

Here is the call graph for this function:

Here is the caller graph for this function:

parser_definitions()

const Parsnip::Parser::Definitions & ServiceManager::parser_definitions ( void  )

static

Here is the caller graph for this function:

periodic()

float ServiceManager::periodic

(

void

)

Perform periodic duties, and determine when next ones are due.

All sources, the audio engines (rooms) and users are invoked, allowing them to perform periodic duties (freeing resources, persisting data, background tasks).

Here is the call graph for this function:

Here is the caller graph for this function:

removeRoom()

void ServiceManager::removeRoom

(

PianodService *

service

)

Remove a room.

Triggers a flush when the last room is removed. This is a callback function, invoked when Football calls the serviceShutdown() method.

Parameters

service

The room to remove.

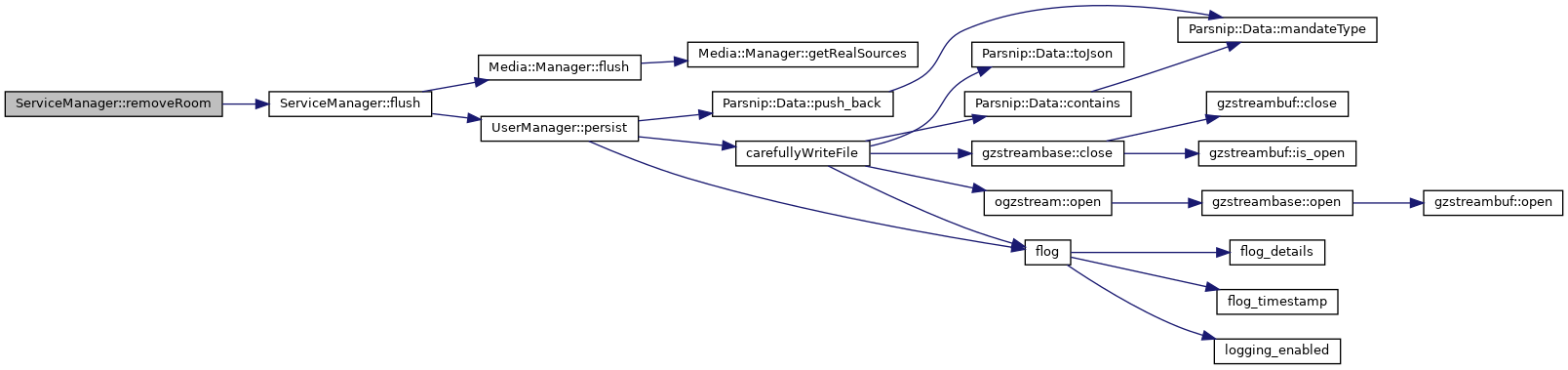

Here is the call graph for this function:

Here is the caller graph for this function:

sendSourceReadyEvents()

void ServiceManager::sendSourceReadyEvents ( const Media::Source *const  source, RESPONSE_CODE  result  )

private

Send events to those waiting on source ready, either a specific source, any source, or all sources.

Parameters

source	The source that is transitioning from pending to ready or dead.
result	The status of the source's transition.

Here is the call graph for this function:

Here is the caller graph for this function:

shutdown()

void ServiceManager::shutdown

(

bool

immediate

)

Request all services (rooms) close so pianod can shutdown.

Parameters

immediate

If true, aborts playback in all rooms.

Here is the call graph for this function:

Here is the caller graph for this function:

sourceOffline()

void ServiceManager::sourceOffline ( const Media::Source *const  source )

private

Handle a source going offline by removing it from use.

Unlike invalidating sources, however, historical and queue references remain.

Here is the call graph for this function:

Here is the caller graph for this function:

sourceReady()

void ServiceManager::sourceReady ( const Media::Source *const  src )

private

Prepare for a new source by alerting auto engines of it.

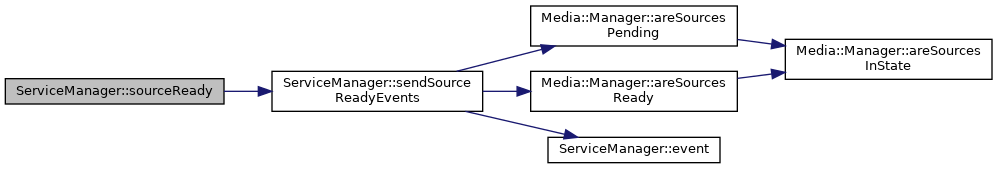

Here is the call graph for this function:

Here is the caller graph for this function:

sourceRemoved()

void ServiceManager::sourceRemoved ( const Media::Source *const  src )

private

Handle a source being deleted.

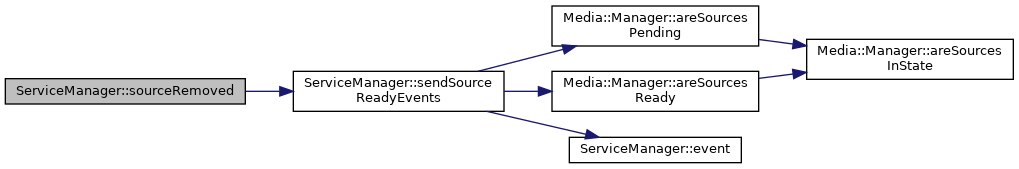

Here is the call graph for this function:

Here is the caller graph for this function:

userIsOnline()

bool ServiceManager::userIsOnline

(

const User *

user

)

Determine if a user is authenticated an connected in any room.

Parameters

user	The user to look for.

Returns

True if the user is online, false otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

broadcast_user_actions

bool ServiceManager::broadcast_user_actions = false

master_parser

const Parsnip::ParserRef ServiceManager::master_parser

private

A single parser shared by all rooms.

master_schema

const PianodSchemaRef ServiceManager::master_schema

private

A single schema shared by all rooms.

master_service

PianodService* ServiceManager::master_service = nullptr

private

The initial room/service.

shutdown_pending

bool ServiceManager::shutdown_pending = false

private

Set when shutdown initiated.

startup_time

time_t ServiceManager::startup_time = time (nullptr)

private

Time the service manager was instantiated.

---

The documentation for this class was generated from the following files:

• servicemanager.h
• servicemanager.cpp
