ffmpeg audio player More...

#include <ffmpegplayer.h>

Inheritance diagram for Audio::LavPlayer:

[legend]

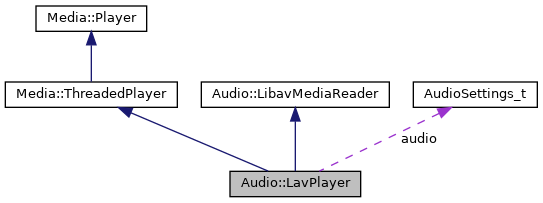

Collaboration diagram for Audio::LavPlayer:

[legend]

Public Member Functions
	LavPlayer (const AudioSettings &AudioSettings, const std::string &media_url, float audio_gain=0)
	Play a media file or URL using ffmpeg. More...

Public Member Functions inherited from Media::ThreadedPlayer
	ThreadedPlayer (void)

virtual	~ThreadedPlayer (void)

Public Member Functions inherited from Media::Player
virtual	~Player (void)

virtual float	playRemaining (void) const
	Seconds left in playback, or a negative number if unknown. More...

bool	ready (void) const
	Indicate if player has finished initializing. More...

bool	playbackComplete (void) const
	Indicate if playback is complete and ready for cleanup. More...

virtual time_t	getPauseTimeout (void)
	When paused, get the time at which the song will expire. More...

Public Member Functions inherited from Audio::LibavMediaReader
	LibavMediaReader (const std::string &media_url, int timeout=15)
	Base abstract class for reading a media file or URL using ffmpeg. More...

virtual	~LibavMediaReader (void)

Private Member Functions
bool	playPacket (AVFrame frame, AVCodecContext codec, AVPacket *packet)

RESPONSE_CODE	playStream (AVFormatContext format, AVCodecContext codec, const int audio_stream)

virtual void	setGain (float gain) override

virtual void	setVolume (float volume) override
	Adjust volume in decibels. More...

virtual State	currentState (void) const override

virtual float	trackDuration (void) const override
	Length of track in seconds, or a negative number if unknown. More...

virtual float	playPoint (void) const override
	Seconds from start, or a negative value if unknown. More...

virtual RESPONSE_CODE	playerThread (void) override

virtual void	pausing (void) override
	Called when the playback thread is pausing. More...

virtual void	resuming (void) override
	Called when the playback thread is resuming playback. More...

Private Attributes
AudioSettings	audio
	Output settings. More...

float	gain = 0
	Replay gain from track. More...

volatile float	duration = -1
	Length of song, in seconds. More...

volatile float	playpoint = 0
	Current point in song, in seconds. More...

volatile Media::Player::State	state = Initializing

std::unique_ptr< Audio::LavAdapter >	output

Additional Inherited Members
Public Types inherited from Media::Player
enum	State { DoesNotExist , Initializing , Cueing , Playing , Done }

Static Public Member Functions inherited from Media::Player
static Media::Player *	getPlayer (const AudioSettings &settings, const std::string &media_url, float initial_gain)
	Get the a media player currently compiled in the code. More...

Protected Member Functions inherited from Media::ThreadedPlayer
bool	checkForPauseOrQuit (void)

Protected Member Functions inherited from Audio::LibavMediaReader
int	initializeStream (std::unique_ptr< AVCodecContext, CodecDeleter > &codec_context)
	Prepare a ffmpeg source for playing its audio stream. More...

void	processReplayGain (AVReplayGain *gain, int size)
	Process a replaygain packet by extracting the track gain, or if not found then then the album gain. More...

Protected Attributes inherited from Audio::LibavMediaReader
const std::string	url
	Media URL or filename. More...

bool	is_network = false
	True if media is network streaming. More...

AVFormatContext *	transport = nullptr

Detailed Description

ffmpeg audio player

Constructor & Destructor Documentation

◆ LavPlayer()

Audio::LavPlayer::LavPlayer	(	const AudioSettings &	AudioSettings,
		const std::string &	media_url,
		float	audio_gain = `0`
	)

Play a media file or URL using ffmpeg.

Parameters

AudioSettings	Describe the output device.
media_url	The filename or URL of the media.
audio_gain	Gain to apply when playing file, in decibels. If ReplayGain is encountered during playback, that is preferred over this value.

Member Function Documentation

◆ currentState()

Media::Player::State Audio::LavPlayer::currentState ( void ) const

overrideprivatevirtual

Implements Media::Player.

◆ pausing()

void Audio::LavPlayer::pausing ( void )

overrideprivatevirtual

Called when the playback thread is pausing.

Reimplemented from Media::ThreadedPlayer.

◆ playerThread()

RESPONSE_CODE Audio::LavPlayer::playerThread ( void )

overrideprivatevirtual

Implements Media::ThreadedPlayer.

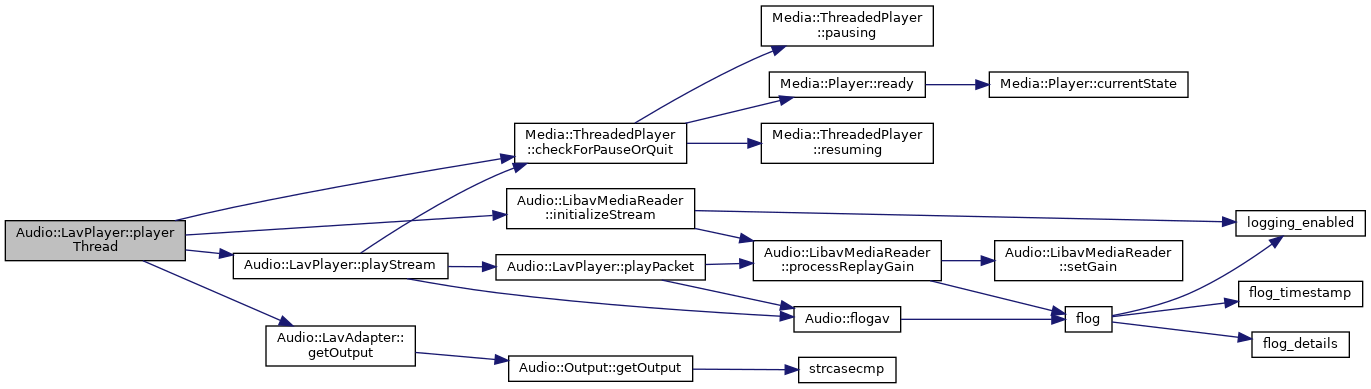

Here is the call graph for this function:

◆ playPacket()

bool Audio::LavPlayer::playPacket	(	AVFrame *	frame,
		AVCodecContext *	codec,
		AVPacket *	packet
	)

private

Decode and play an audio frame from ffmpeg.

Parameters

frame	One frame from the media stream.
codec	The codec state for decoding the stream.
packet	A packet from the stream, undecoded.

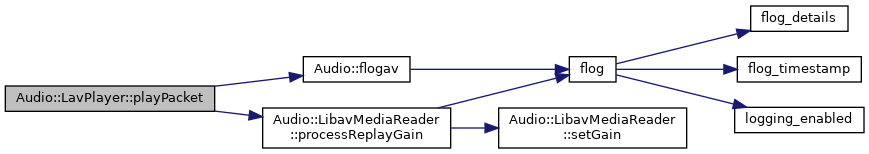

Here is the call graph for this function:

Here is the caller graph for this function:

◆ playPoint()

float Audio::LavPlayer::playPoint ( void ) const

overrideprivatevirtual

Seconds from start, or a negative value if unknown.

Implements Media::Player.

◆ playStream()

RESPONSE_CODE Audio::LavPlayer::playStream	(	AVFormatContext *	format,
		AVCodecContext *	codec,
		const int	audio_stream
	)

private

Play a media stream from ffmpeg.

Parameters

format	The multiplexed media thing.
codec	The codec context for the audio stream.
audio_stream	The index of the audio stream.

Returns: Pianod S_OK or a F_* error code.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resuming()

void Audio::LavPlayer::resuming ( void )

overrideprivatevirtual

Called when the playback thread is resuming playback.

Reimplemented from Media::ThreadedPlayer.

◆ setGain()

void Audio::LavPlayer::setGain ( float gain )

overrideprivatevirtual

Implements Audio::LibavMediaReader.

Here is the call graph for this function:

◆ setVolume()

void Audio::LavPlayer::setVolume ( float volume )

overrideprivatevirtual

Adjust volume in decibels.

Implements Media::Player.

◆ trackDuration()

float Audio::LavPlayer::trackDuration ( void ) const

overrideprivatevirtual

Length of track in seconds, or a negative number if unknown.

Implements Media::Player.

Member Data Documentation

◆ audio

AudioSettings Audio::LavPlayer::audio

private

Output settings.

◆ duration

volatile float Audio::LavPlayer::duration = -1

private

Length of song, in seconds.

◆ gain

float Audio::LavPlayer::gain = 0

private

Replay gain from track.

◆ output

std::unique_ptr<Audio::LavAdapter> Audio::LavPlayer::output

private

◆ playpoint

volatile float Audio::LavPlayer::playpoint = 0

private

Current point in song, in seconds.

◆ state

volatile Media::Player::State Audio::LavPlayer::state = Initializing

private

The documentation for this class was generated from the following files:

mediaunits/audio/ffmpegplayer.h
mediaunits/audio/ffmpegplayer.cpp
