Class for reading media streams via gstreamer. More...

Inheritance diagram for Audio::GstreamerMediaReader:

[legend]

Collaboration diagram for Audio::GstreamerMediaReader:

Public Member Functions
	GstreamerMediaReader (const std::string &media_url, int timeout=15)
	Base abstract class for reading a media file or URL using gstreamer. More...

Public Member Functions inherited from Audio::GstreamerDoublePipeline
	GstreamerDoublePipeline ()=default

virtual	~GstreamerDoublePipeline ()=default

Public Member Functions inherited from Audio::GstreamerSimplePipeline
	GstreamerSimplePipeline ()

virtual	~GstreamerSimplePipeline ()

Protected Attributes
const bool	is_network = false
	True if media is network streaming. More...

const std::string	url
	Media URL or filename. More...

Protected Attributes inherited from Audio::GstreamerSimplePipeline
GstElement *	pipeline
	Filter graph for elements. More...

GstElement *	chain_start = nullptr
	First item pushed on the stream after setup. More...

GstElement *	pipeline_last = nullptr
	Last item pushed on the stream. More...

std::recursive_mutex	state_mutex

std::unique_ptr< GstreamerAudioException >	pipeline_exception
	Asynchronous exception. More...

Private Attributes
GstElement *	media_source = nullptr
	Source element. Reads file or network. More...

GstElement *	decoder = nullptr
	Autoplugger, which in turn wires up an audio decoder. More...

Additional Inherited Members
Protected Member Functions inherited from Audio::GstreamerDoublePipeline
void	push (GstElement *item)
	Push an output element into the filter graph. More...

void	pushSource (GstElement *item)
	Wire an element to the end of the source pipeline/filter graph. More...

Protected Member Functions inherited from Audio::GstreamerSimplePipeline
void	add (GstElement *element)

void	throwDeferredException (const GstreamerAudioException &exception, bool asynchronously=false) const
	"Throw" an exception from an asyncrhonous player thread. More...

void	throwAsyncException (const GstreamerAudioException &exception)

void	push (GstElement *item)
	Wire an item to the pipeline/filter graph. More...

GstElement *	createElement (const char *name, const std::string &overrides="")
	Create a gstreamer element and add it to the pipeline/bin, unwired. More...

GstState	currentPipelineState () const
	Query the pipeline's current state. More...

void	setPipelineState (GstState state)
	Set the pipeline's state. More...

Detailed Description

Class for reading media streams via gstreamer.

Constructor & Destructor Documentation

Audio::GstreamerMediaReader::GstreamerMediaReader	(	const std::string &	media_url,
		int	timeout = `15`
	)

Base abstract class for reading a media file or URL using gstreamer.

Parameters

media_url	The filename or URL of the media.
timeout	The timeout for reading the media stream, in seconds.

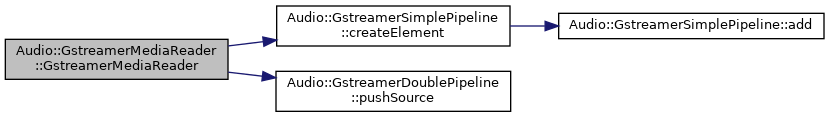

Here is the call graph for this function:

GstElement* Audio::GstreamerMediaReader::decoder = nullptr

private

Autoplugger, which in turn wires up an audio decoder.

const bool Audio::GstreamerMediaReader::is_network = false

protected

True if media is network streaming.

GstElement* Audio::GstreamerMediaReader::media_source = nullptr

private

Source element. Reads file or network.

const std::string Audio::GstreamerMediaReader::url

protected

Media URL or filename.

The documentation for this class was generated from the following files:
