Audio::GstreamerSimplePipeline Class Reference

Base class for gstreamer pipelines. More...

#include <gstreamplayer.h>

Inheritance diagram for Audio::GstreamerSimplePipeline:

Public Member Functions
	GstreamerSimplePipeline ()
virtual	~GstreamerSimplePipeline ()

Protected Member Functions
void	add (GstElement *element)
void	throwDeferredException (const GstreamerAudioException &exception, bool asynchronously=false) const
	"Throw" an exception from an asyncrhonous player thread. More...
void	throwAsyncException (const GstreamerAudioException &exception)
void	push (GstElement *item)
	Wire an item to the pipeline/filter graph. More...
GstElement *	createElement (const char *name, const std::string &overrides="")
	Create a gstreamer element and add it to the pipeline/bin, unwired. More...
GstState	currentPipelineState () const
	Query the pipeline's current state. More...
void	setPipelineState (GstState state)
	Set the pipeline's state. More...

Protected Attributes
GstElement *	pipeline
	Filter graph for elements. More...
GstElement *	chain_start = nullptr
	First item pushed on the stream after setup. More...
GstElement *	pipeline_last = nullptr
	Last item pushed on the stream. More...
std::recursive_mutex	state_mutex
std::unique_ptr< GstreamerAudioException >	pipeline_exception
	Asynchronous exception. More...

Detailed Description

Base class for gstreamer pipelines.

Constructor & Destructor Documentation

GstreamerSimplePipeline()

Audio::GstreamerSimplePipeline::GstreamerSimplePipeline

(

)

~GstreamerSimplePipeline()

Audio::GstreamerSimplePipeline::~GstreamerSimplePipeline ( )

virtual

Here is the call graph for this function:

Member Function Documentation

add()

void Audio::GstreamerSimplePipeline::add ( GstElement *  element )

protected

Here is the caller graph for this function:

createElement()

GstElement * Audio::GstreamerSimplePipeline::createElement ( const char *  name, const std::string &  overrides = ""  )

protected

Create a gstreamer element and add it to the pipeline/bin, unwired.

Parameters

name	The name of the element.
overrides	A user-specified alternate element to use.

Returns

Reference with constructed element.

Exceptions

GstreamerAudioException

if the element creation fails.

Here is the call graph for this function:

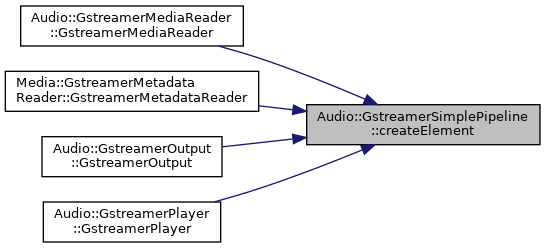

Here is the caller graph for this function:

currentPipelineState()

GstState Audio::GstreamerSimplePipeline::currentPipelineState ( ) const

protected

Query the pipeline's current state.

Here is the call graph for this function:

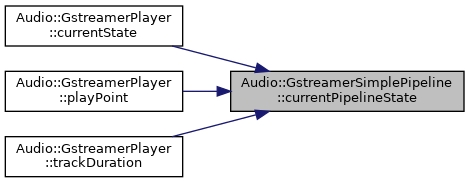

Here is the caller graph for this function:

push()

void Audio::GstreamerSimplePipeline::push ( GstElement *  item )

protected

Wire an item to the pipeline/filter graph.

Items are wired in the order they are pushed.

Parameters

item	The item to insert into to the pipeline.

Exceptions

AudioException

if the item can't be linked.

Here is the caller graph for this function:

setPipelineState()

void Audio::GstreamerSimplePipeline::setPipelineState ( GstState  state )

protected

Set the pipeline's state.

We need locking at this point, because the state may be set by a bus message or the pianod main thread. This creates a race condition where an error shuts it down, then pianod requests playback start/resume.

Furthermore, hammering state changes causes Gstreamer to become deranged and deadlock waiting on a condition variable. To avoid this, give the prior state transition a chance to complete.

But as a bonus, some elements only get to READY state; perhaps they need stream data to move on, but we're done and need to tear them down and move on. Whatever, the case, we occasionally need to go ahead with a state change, even if the last one is unfinished. Hence, we have a 1-second timeout for the last state change to finish, before proceeding recklessly with a state change.

Parameters

state

The new state.

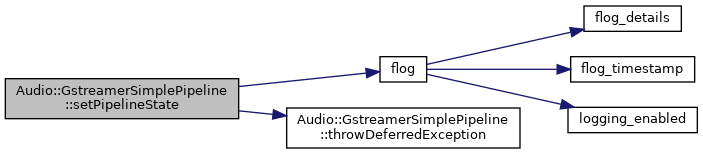

Here is the call graph for this function:

Here is the caller graph for this function:

throwAsyncException()

void Audio::GstreamerSimplePipeline::throwAsyncException ( const GstreamerAudioException &  exception )

inlineprotected

Here is the call graph for this function:

throwDeferredException()

void Audio::GstreamerSimplePipeline::throwDeferredException ( const GstreamerAudioException &  exception, bool  asynchronously = false  ) const

protected

"Throw" an exception from an asyncrhonous player thread.

This stores a copy of the exception for throwing later, when getting the thread's completion status.

Here is the caller graph for this function:

Member Data Documentation

chain_start

GstElement* Audio::GstreamerSimplePipeline::chain_start = nullptr

protected

First item pushed on the stream after setup.

pipeline

GstElement* Audio::GstreamerSimplePipeline::pipeline

protected

Filter graph for elements.

pipeline_exception

std::unique_ptr<GstreamerAudioException> Audio::GstreamerSimplePipeline::pipeline_exception

mutableprotected

Asynchronous exception.

pipeline_last

GstElement* Audio::GstreamerSimplePipeline::pipeline_last = nullptr

protected

Last item pushed on the stream.

state_mutex

std::recursive_mutex Audio::GstreamerSimplePipeline::state_mutex

mutableprotected

---

The documentation for this class was generated from the following files:

• mediaunits/audio/gstreamplayer.h
• mediaunits/audio/gstreamplayer.cpp
