Play media or a stream using gstreamer. More...

#include <gstreamplayer.h>

Inheritance diagram for Audio::GstreamerPlayer:

[legend]

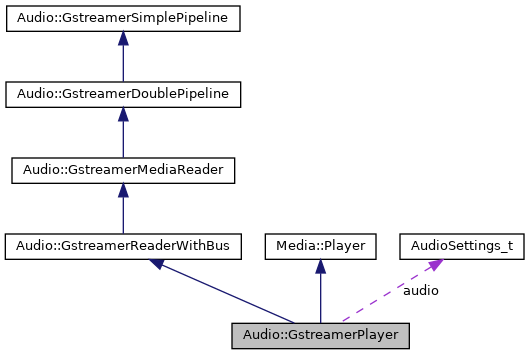

Collaboration diagram for Audio::GstreamerPlayer:

[legend]

Public Member Functions
	GstreamerPlayer (const AudioSettings &audio_settings, const std::string &media_url, float initial_audio_gain)
	Play a media file or URL using gstreamer. More...

virtual	~GstreamerPlayer ()

Public Member Functions inherited from Audio::GstreamerReaderWithBus
	GstreamerReaderWithBus (const std::string &media_url, int timeout)

virtual	~GstreamerReaderWithBus ()

Public Member Functions inherited from Audio::GstreamerMediaReader
	GstreamerMediaReader (const std::string &media_url, int timeout=15)
	Base abstract class for reading a media file or URL using gstreamer. More...

Public Member Functions inherited from Audio::GstreamerDoublePipeline
	GstreamerDoublePipeline ()=default

virtual	~GstreamerDoublePipeline ()=default

Public Member Functions inherited from Audio::GstreamerSimplePipeline
	GstreamerSimplePipeline ()

virtual	~GstreamerSimplePipeline ()

Public Member Functions inherited from Media::Player
virtual	~Player (void)

virtual float	playRemaining (void) const
	Seconds left in playback, or a negative number if unknown. More...

bool	ready (void) const
	Indicate if player has finished initializing. More...

bool	playbackComplete (void) const
	Indicate if playback is complete and ready for cleanup. More...

virtual time_t	getPauseTimeout (void)
	When paused, get the time at which the song will expire. More...

Private Member Functions
virtual void	pause (void) override
	Pause playback. If already paused, do nothing. More...

virtual void	abort (void) override
	Don't play the rest of the song. More...

virtual void	cue (void) override
	Starts thread in paused mode. More...

virtual void	play (void) override
	Start playback or resume playback if paused. If already playing, continue. More...

virtual RESPONSE_CODE	completionStatus (void) override

virtual void	setVolume (float volume) override
	Adjust volume in decibels. More...

virtual State	currentState (void) const override

virtual float	trackDuration (void) const override
	Length of track in seconds, or a negative number if unknown. More...

virtual float	playPoint (void) const override
	Seconds from start, or a negative value if unknown. More...

Private Attributes
AudioSettings	audio
	Output settings. More...

GstElement *	replay_gainer = nullptr
	Apply replay gain as necessary. More...

GstElement *	volume_filter = nullptr
	Make volume adjustments. More...

GstElement *	format_converter = nullptr
	Convert audio to required format for output. More...

GstElement *	output_device = nullptr
	Send audio to somewhere. More...

Additional Inherited Members
Public Types inherited from Media::Player
enum	State { DoesNotExist , Initializing , Cueing , Playing , Done }

Static Public Member Functions inherited from Media::Player
static Media::Player *	getPlayer (const AudioSettings &settings, const std::string &media_url, float initial_gain)
	Get the a media player currently compiled in the code. More...

Protected Member Functions inherited from Audio::GstreamerReaderWithBus
virtual bool	notification (GstMessage *message)

Protected Member Functions inherited from Audio::GstreamerDoublePipeline
void	push (GstElement *item)
	Push an output element into the filter graph. More...

void	pushSource (GstElement *item)
	Wire an element to the end of the source pipeline/filter graph. More...

Protected Member Functions inherited from Audio::GstreamerSimplePipeline
void	add (GstElement *element)

void	throwDeferredException (const GstreamerAudioException &exception, bool asynchronously=false) const
	"Throw" an exception from an asyncrhonous player thread. More...

void	throwAsyncException (const GstreamerAudioException &exception)

void	push (GstElement *item)
	Wire an item to the pipeline/filter graph. More...

GstElement *	createElement (const char *name, const std::string &overrides="")
	Create a gstreamer element and add it to the pipeline/bin, unwired. More...

GstState	currentPipelineState () const
	Query the pipeline's current state. More...

void	setPipelineState (GstState state)
	Set the pipeline's state. More...

Protected Attributes inherited from Audio::GstreamerMediaReader
const bool	is_network = false
	True if media is network streaming. More...

const std::string	url
	Media URL or filename. More...

Protected Attributes inherited from Audio::GstreamerSimplePipeline
GstElement *	pipeline
	Filter graph for elements. More...

GstElement *	chain_start = nullptr
	First item pushed on the stream after setup. More...

GstElement *	pipeline_last = nullptr
	Last item pushed on the stream. More...

std::recursive_mutex	state_mutex

std::unique_ptr< GstreamerAudioException >	pipeline_exception
	Asynchronous exception. More...

Detailed Description

Play media or a stream using gstreamer.

Constructor & Destructor Documentation

◆ GstreamerPlayer()

Audio::GstreamerPlayer::GstreamerPlayer	(	const AudioSettings &	audio_settings,
		const std::string &	media_url,
		float	initial_audio_gain
	)

Play a media file or URL using gstreamer.

Parameters

audio_settings	Describe the output device.
media_url	The filename or URL of the media.
initial_audio_gain	Gain to apply when playing file, in decibels. If ReplayGain is encountered during playback, that is preferred over this value.

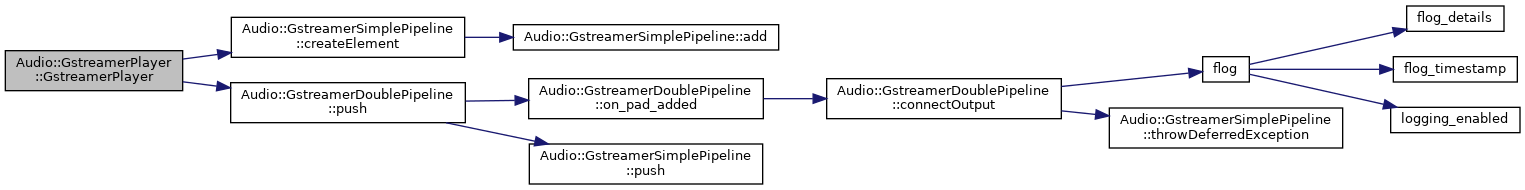

Here is the call graph for this function:
