Media source, source parameters and player interfaces. More...

Namespaces
	Key

Classes
class	Manager
	The Media::Manager contains a collection of all sources. More...

class	SourceParameters
	Source parameter manager. More...

class	Initializer
	Initialize the media engines; uninitialize on destruction. More...

class	Player
	Base class for playing audio from some source. More...

class	ThreadedPlayer
	Base class for audio players that are spawned to a new thread. More...

struct	Statistics
	Statistics on media played from the sources. More...

class	Source
	Base class that wraps any audio source, such as Pandora, Spotify, or local music. More...

class	SplitId
	Mechanism to split MusicThingie IDs into source identifier, type and inner ID. More...

class	LavMetadataReader
	Read media stream metadata via ffmpeg. More...

class	GstreamerMetadataReader
	Read media stream metadata via gstreamer. More...

class	MediaException
	An exception thrown by metadata readers when metadata cannot be extracted. More...

class	Metadata

class	OSXMetadataReader
	A class to extract metadata from media files using AVFoundation. More...

class	TaglibReader
	A class to extract metadata from media files using Taglib. More...

class	PlayerWrapper
	The Player class is abstract, and is implemented several different ways (ffmpeg, gstreamer, AVFoundation...). More...

Typedefs
using	SourcePtr = std::unique_ptr< Source >

Enumerations
enum class	ProxyMode { None , Donor , Recipient }
	How a source participates in track-source substitutions;. More...

enum class	PersistenceMode { Temporary , Loaded , Remember , Restore }

enum class	SelectionMethod { Song , Album , Artist , Playlist , Random }
	The manner in which shuffling is performed. More...

enum class	Key { Unknown , Artist , Album , Title , Genre , Comment , Year , Track , Disc }

Functions
void	reportLibrariesAndVersions (int verbose)
	Report media libraries in use and their versions. More...

static const GValue *	retrieveTag (const GstTagList tag_list, const gchar tag, GType type)
	Retrieve a value out of the tag list. More...

static void	retrieveTag (const GstTagList list, const gchar tag, float *value)
	Extract a floating point value from the tag list. More...

static void	retrieveUintTag (const GstTagList list, const gchar tag, int *value)
	Extract an unsigned integer value from the tag list. More...

static void	retrieveYearTag (const GstTagList list, const gchar tag, int *value)
	Extract the year from the tag list. More...

static void	retrieveDurationTag (const GstTagList list, const gchar tag, float *value)
	Extract a string value from the tag list. More...

static void	retrieveTag (const GstTagList list, const gchar tag, std::string *value)
	Extract a string value from the tag list. More...

constexpr int32_t	KeyCode (int32_t a, int32_t b, int32_t c, int32_t d)

static Key	saneKey (const NSString keySpace, const NSObject key, const NSObject *commonKey)

static std::string	getTagByName (const TagLib::FileRef &file, const char *tagname)
	Acquire a metadata field by name. More...

static float	getFileGain (const TagLib::FileRef &file)

Variables
LookupTable< Media::ProxyMode >	ProxyWords

LookupTable< Media::PersistenceMode >	PersistenceWords

static const char *	media_formats []

Detailed Description

Media source, source parameters and player interfaces.

Typedef Documentation

◆ SourcePtr

using Media::SourcePtr = typedef std::unique_ptr<Source>

Enumeration Type Documentation

◆ Key

enum Media::Key

strong

Enumerator
Unknown
Artist
Album
Title
Genre
Comment
Year
Track
Disc

◆ PersistenceMode

enum Media::PersistenceMode

strong

Enumerator
Temporary	Provided from command line, store neither settings nor indexes.
Loaded	Values loaded from stored data, do not update settings but do update indexes.
Remember	Store it, store indexes, but manually restore only.
Restore	Store it, store indexes, and automatically restore on startup.

◆ ProxyMode

enum Media::ProxyMode

strong

How a source participates in track-source substitutions;.

Enumerator
None	Source does not participate.
Donor	Source provides substitute tracks.
Recipient	Source wants its tracks replaced when possible.

◆ SelectionMethod

enum Media::SelectionMethod

strong

The manner in which shuffling is performed.

Enumerator
Song	Songs are picked randomly from the union of applicable playlists.
Album	An entire album is picked randomly from a playlist.
Artist	An artist is picked randomly, then a few of their songs are picked.
Playlist	A playlist is picked randomly, then a few of its songs randomly.
Random	One of the above methods is randomly chosen.

Function Documentation

◆ getFileGain()

static float Media::getFileGain ( const TagLib::FileRef & file )

static

Extract replay gain. libavformat does this sometime, but since there are so many standards to choose from (ID3, APE, iTunes, some others) it doesn't over them all. Here we cover the iTunes case, which libavformat & gstreamer ignore.

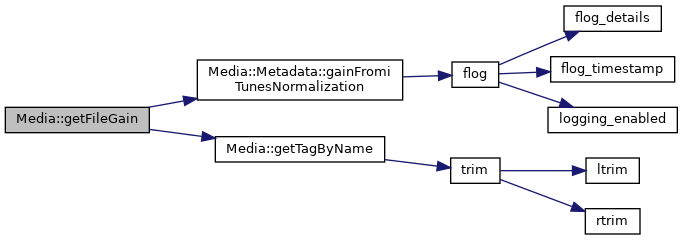

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getTagByName()

static std::string Media::getTagByName	(	const TagLib::FileRef &	file,
		const char *	tagname
	)

static

Acquire a metadata field by name.

Parameters

file	A taglib file handle.
tagname	The metadata field name.

Returns: The data found, or an empty string.

Here is the call graph for this function:

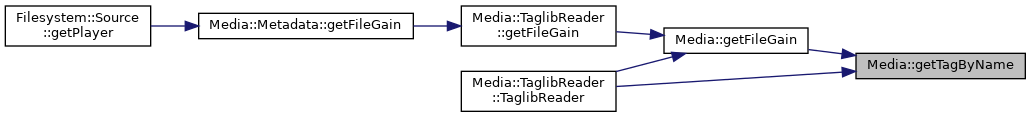

Here is the caller graph for this function:

◆ KeyCode()

constexpr int32_t Media::KeyCode	(	int32_t	a,
		int32_t	b,
		int32_t	c,
		int32_t	d
	)

constexpr

Here is the caller graph for this function:

◆ reportLibrariesAndVersions()

void Media::reportLibrariesAndVersions ( int verbose )

Report media libraries in use and their versions.

Parameters

verbose If >0, include additional details.

Here is the caller graph for this function:

◆ retrieveDurationTag()

static void Media::retrieveDurationTag	(	const GstTagList *	list,
		const gchar *	tag,
		float *	value
	)

static

Extract a string value from the tag list.

Parameters

list	A dictionary of tags and values.
tag	The tag whose value to retrieve.
value	The variable to retrieve into.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ retrieveTag() [1/3]

static void Media::retrieveTag	(	const GstTagList *	list,
		const gchar *	tag,
		float *	value
	)

static

Extract a floating point value from the tag list.

Parameters

list	A dictionary of tags and values.
tag	The tag whose value to retrieve.
value	The variable to retrieve into.

Here is the call graph for this function:

◆ retrieveTag() [2/3]

static void Media::retrieveTag	(	const GstTagList *	list,
		const gchar *	tag,
		std::string *	value
	)

static

Extract a string value from the tag list.

Parameters

list	A dictionary of tags and values.
tag	The tag whose value to retrieve.
value	The variable to retrieve into.

Here is the call graph for this function:

◆ retrieveTag() [3/3]

static const GValue* Media::retrieveTag	(	const GstTagList *	tag_list,
		const gchar *	tag,
		GType	type
	)

static

Retrieve a value out of the tag list.

Parameters

tag_list	The tag collection to extract a value from.
tag	The tag whose value to retrieve.
type	The expected datatype of the tag's value.

Returns: If found an the expected type, the value, otherwise null.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ retrieveUintTag()

static void Media::retrieveUintTag	(	const GstTagList *	list,
		const gchar *	tag,
		int *	value
	)

static

Extract an unsigned integer value from the tag list.

Parameters

list	A dictionary of tags and values.
tag	The tag whose value to retrieve.
value	The variable to retrieve into.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ retrieveYearTag()

static void Media::retrieveYearTag	(	const GstTagList *	list,
		const gchar *	tag,
		int *	value
	)

static

Extract the year from the tag list.

Parameters

list	A dictionary of tags and values.
tag	The tag whose value to retrieve.
value	The variable to retrieve into.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saneKey()

static Key Media::saneKey	(	const NSString *	keySpace,
		const NSObject *	key,
		const NSObject *	commonKey
	)

static

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ media_formats

const char* Media::media_formats[]

static

Initial value:

= {
        ".mp3",
        ".m4a",
        ".flac",
        ".wav",
        ".mp4a",
        ".wma",
        ".snd",
        ".aiff",
        ".aac",
        ".ogg",
        ".mpa",
        ".alac",
        nullptr
    }

◆ PersistenceWords

LookupTable<Media::PersistenceMode> Media::PersistenceWords

Initial value:

{
        { "none",       PersistenceMode::Temporary },
        { "remember",   PersistenceMode::Remember },
        { "restore",    PersistenceMode::Restore }
    }

◆ ProxyWords

LookupTable<Media::ProxyMode> Media::ProxyWords

Initial value:

{
        { "none",      ProxyMode::None },
        { "donor",     ProxyMode::Donor },
        { "recipient", ProxyMode::Recipient }
    }
