fb_socketmgr.c File Reference

Football socket management and dispatching. More...

#include <config.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <errno.h>
#include <time.h>
#include <stdint.h>
#include <sys/types.h>
#include <sys/select.h>
#include <assert.h>
#include "fb_service.h"

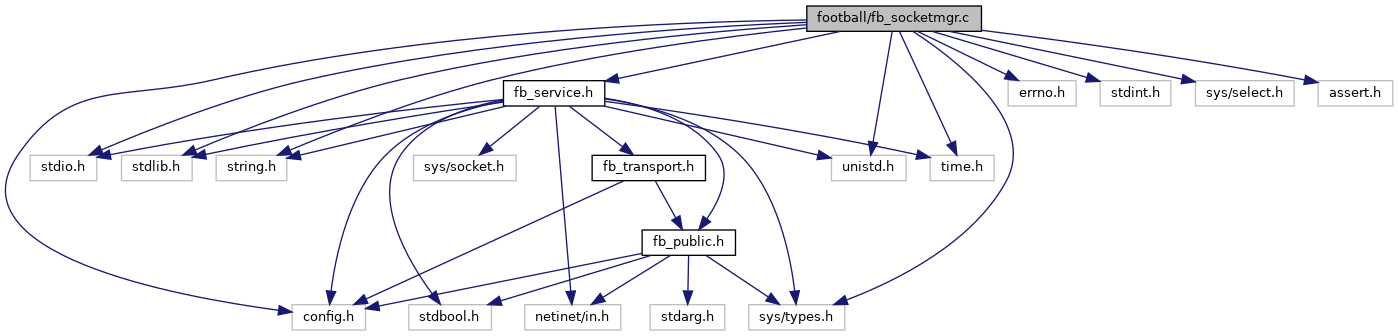

Include dependency graph for fb_socketmgr.c:

Classes
struct	socket_data_t

Macros
#define	_BSD_SOURCE   /* strdup() */
#define	_DARWIN_C_SOURCE   /* strdup() on OS X */
#define	_DEFAULT_SOURCE
#define	FD_COPY(from, to)   memmove(to, from, sizeof(*(from)))
#define	fb_lock_socketmanager_mutex()   true

Typedefs
typedef struct socket_data_t	FB_SOCKET_DATA
typedef enum select_action_t	ACTION

Enumerations
enum	select_action_t {   ACTION_READING , ACTION_WRITING , ACTION_FAULTING , ACTION_BUFFERING ,   ACTION_COUNT , ACTION_SELECT_COUNT = 3 }

Functions
void	fb_schedule_reap (FB_SERVICE *service)
void	fb_queue_event (FB_EVENT *event)
void	fb_dispose_event (FB_EVENT *event)
void	fb_interrupt (void)
	Return an FB_EVENT_INTERRUPTED on current or next poll. More...
static bool	expand_socket_registry (int required_size)
bool	fb_register (int socket_fd, FB_SOCKETTYPE type, void *thing)
	Add a socket to the registry. More...
void	fb_unregister (int socket_fd)
	Remove a socket from the registry. More...
void	fb_set_socket_select_flags (int socket_fd, ACTION group, bool enable)
void	fb_set_buffering (int socket_fd, bool enable)
void	fb_set_writable (int socket_fd, bool enable)
void	fb_set_readable (int socket_fd, bool enable)
void	fb_accept_input (FB_CONNECTION *connection, bool input)
	Public interface to enable/disable reading on a connection. More...
FB_EVENT *	fb_process_event (int socket_fd, ACTION action)
static FB_EVENT *	fb_perform_reaping ()
static void	subtract_from_timeval (struct timeval *minuend, const struct timeval *subtrahend)
static FB_EVENT *	fb_poll_for (struct timeval *timeout)
FB_EVENT *	fb_poll (void)
	Quick poll with no waiting. More...
FB_EVENT *	fb_poll_with_timeout (double timeout)
	Poll with a duration. More...
FB_EVENT *	fb_wait (void)
	Poll indefinitely. More...
FB_EVENT *	fb_poll_until (time_t untilwhen)
	Poll with a timeout at a specific time. More...

Variables
static FB_SERVICE *	reapq = NULL
static FB_SOCKET_DATA **	sockets
	Index by socket number to service/connection/etc. More...
static int	maxsockets = 0
static int	activesockets = 0
static fd_set	select_state [ACTION_COUNT]
	What we'll use on the next select() More...
static fd_set	last_state [ACTION_SELECT_COUNT]
	What came back on the last select() More...
static FB_EVENT *	queued_event = NULL
	Pending event (NULL if none, or single event. More...
static bool	tls_currently_buffering
	Set when TLS has stuff in its buffers. More...
static volatile bool	interrupt_pending = false
	Return EVENT_INTERRUPTED on EINTR. More...

Detailed Description

Football socket management and dispatching.

• Football socket abstraction layer

  Author

  Perette Barella

  Date

  2012-03-03

  Copyright

  Copyright 2012-2021 Devious Fish. All rights reserved.

Macro Definition Documentation

_BSD_SOURCE

#define _BSD_SOURCE   /* strdup() */

_DARWIN_C_SOURCE

#define _DARWIN_C_SOURCE   /* strdup() on OS X */

_DEFAULT_SOURCE

#define _DEFAULT_SOURCE

fb_lock_socketmanager_mutex

#define fb_lock_socketmanager_mutex

(

)

true

FD_COPY

#define FD_COPY	(		from,
			to
	)		memmove(to, from, sizeof(*(from)))

Typedef Documentation

ACTION

typedef enum select_action_t ACTION

FB_SOCKET_DATA

typedef struct socket_data_t FB_SOCKET_DATA

Enumeration Type Documentation

select_action_t

enum select_action_t

Enumerator
ACTION_READING
ACTION_WRITING
ACTION_FAULTING
ACTION_BUFFERING
ACTION_COUNT
ACTION_SELECT_COUNT

Function Documentation

expand_socket_registry()

static bool expand_socket_registry ( int  required_size )

static

Increase the registry to accommodate more sockets.

Parameters

required_size

The minimum size required. This function may choose to go larger.

Returns

True on success, false on failure.

Here is the caller graph for this function:

fb_accept_input()

void fb_accept_input	(	FB_CONNECTION *	connection,
		bool	input
	)

Public interface to enable/disable reading on a connection.

Parameters

connection	- the connection to adjust.
input	true to enable reading, false to disable.

Here is the call graph for this function:

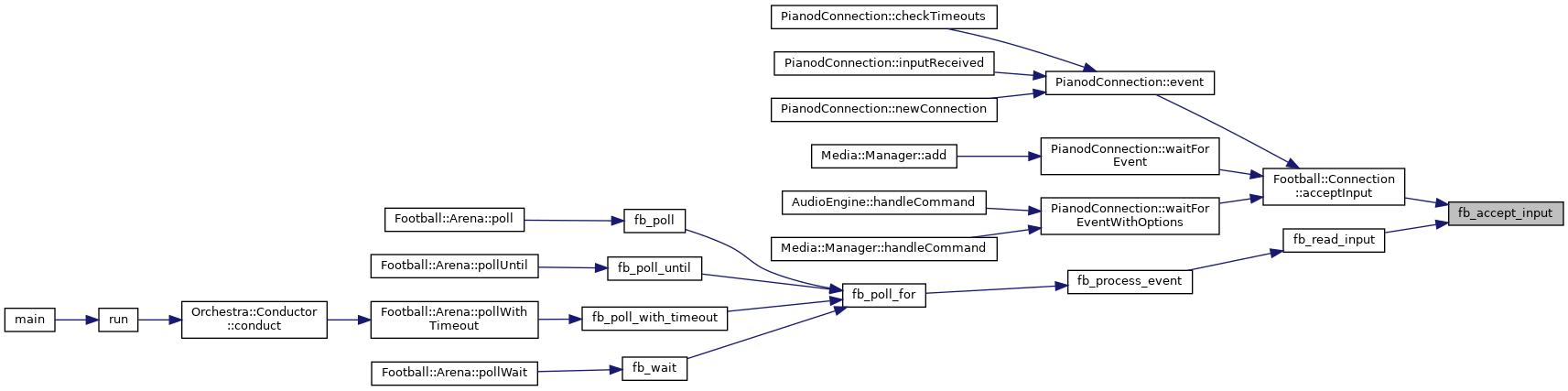

Here is the caller graph for this function:

fb_dispose_event()

void fb_dispose_event

(

FB_EVENT *

event

)

Destroy an event and free its resources. Events are all statically allocated, so we never free them in the current implementation. However, dispose frees the dynamically allocated elements and clears out the structure.

Parameters

event

the event to free

Here is the call graph for this function:

Here is the caller graph for this function:

fb_interrupt()

void fb_interrupt

(

void

)

Return an FB_EVENT_INTERRUPTED on current or next poll.

Here is the caller graph for this function:

fb_perform_reaping()

static FB_EVENT* fb_perform_reaping ( )

static

Remove items from the reap queue. Defer parent services until all children are dead.

Returns

an event structure, or NULL; neither is an error.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_poll()

FB_EVENT* fb_poll

(

void

)

Quick poll with no waiting.

Returns

An event.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_poll_for()

static FB_EVENT* fb_poll_for ( struct timeval *  timeout )

static

Poll the stuff in the registry. This is the worker function; the four exposed functions with various timeout mechanisms follow.

Parameters

timeout

Duration to poll, or NULL for indefinite wait.

Returns

an event structure, or NULL on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_poll_until()

FB_EVENT* fb_poll_until

(

time_t

untilwhen

)

Poll with a timeout at a specific time.

Parameters

untilwhen

Time at which timeout should occur.

Returns

An event.

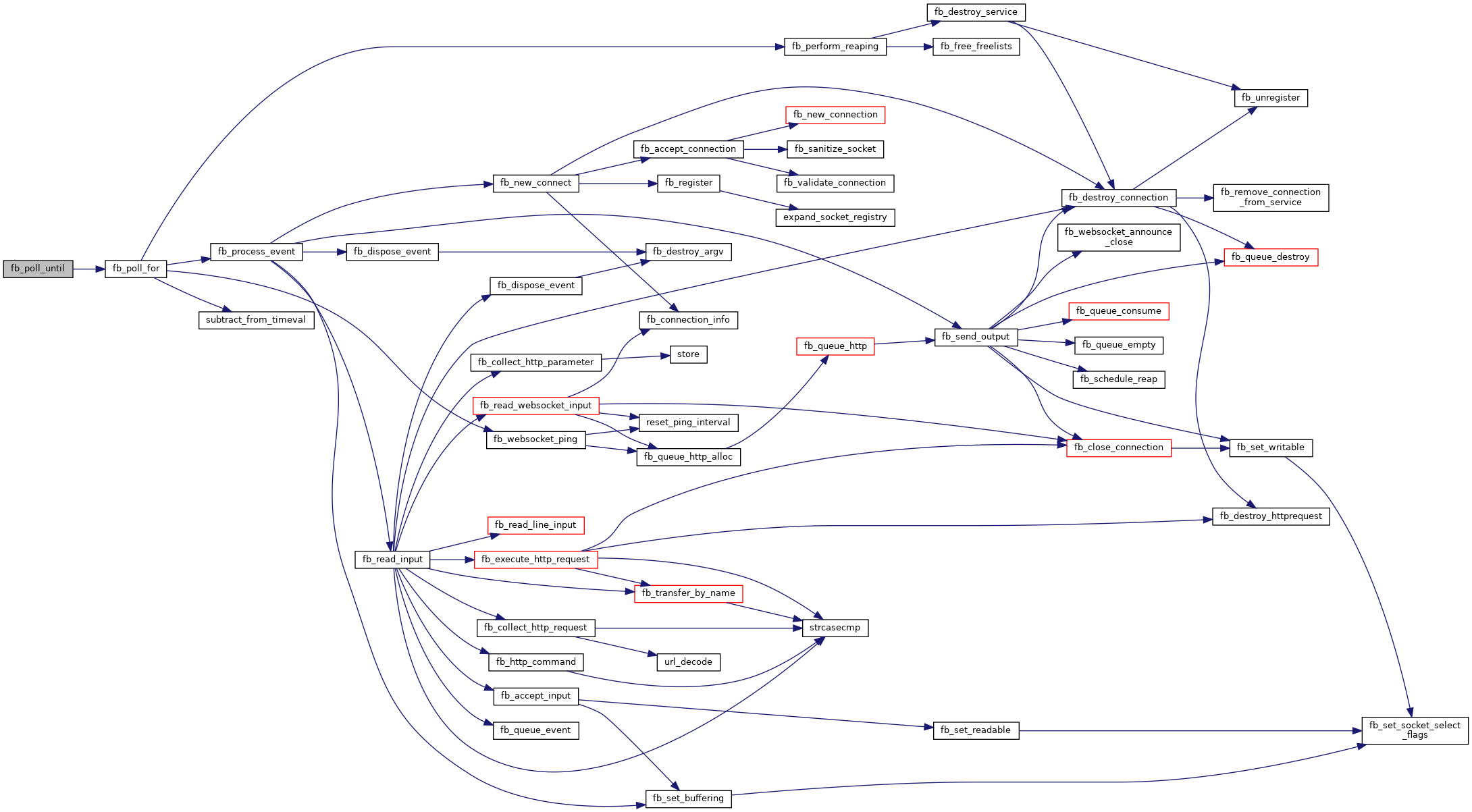

Here is the call graph for this function:

Here is the caller graph for this function:

fb_poll_with_timeout()

FB_EVENT* fb_poll_with_timeout

(

double

timeout

)

Poll with a duration.

Parameters

timeout

in seconds.

Returns

An event.

Here is the call graph for this function:

Here is the caller graph for this function:

fb_process_event()

FB_EVENT* fb_process_event	(	int	socket_fd,
		ACTION	action
	)

Called by the poll routine, this function takes a socket and an action and processes it, either inline or by calling another function to do the work.

Parameters

socket_fd	file descriptor of a socket that is ready/wants attention.
action	indicates if socket is ready for reading, writing, etc.

Returns

an event, when appropriate.
If things are handled completely internally, returns NULL.

Here is the call graph for this function:

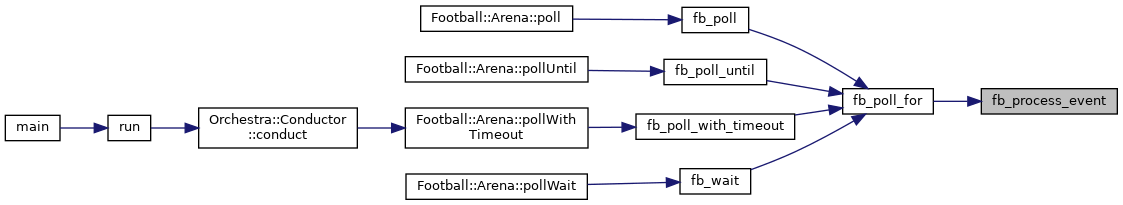

Here is the caller graph for this function:

fb_queue_event()

void fb_queue_event

(

FB_EVENT *

event

)

Queue an event. Only used for fallback mode on HTTP port, when we need to deliver a connection arrival and then the command, so size is limited to 1.

Parameters

event

the event to queue

Here is the caller graph for this function:

fb_register()

bool fb_register	(	int	socket_fd,
		FB_SOCKETTYPE	type,
		void *	thing
	)

Add a socket to the registry.

Parameters

socket_fd	The file descriptor of the socket being added.
type	Type of socket (service, connection, user...)
thing	Pointer of type indicated by 'type'.

Returns

true on success, false on failure

Here is the call graph for this function:

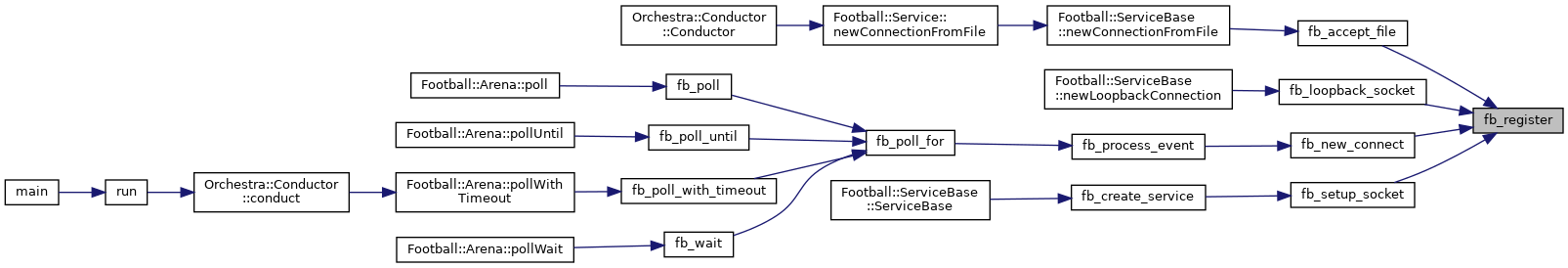

Here is the caller graph for this function:

fb_schedule_reap()

void fb_schedule_reap

(

FB_SERVICE *

service

)

Schedule a service for reaping when it has no connections left.

Here is the caller graph for this function:

fb_set_buffering()

void fb_set_buffering	(	int	socket_fd,
		bool	enable
	)

Enable/disable writing on a socket. This is used to remember TLS data buffering.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true if TLS is buffering, false if it is not.

Here is the call graph for this function:

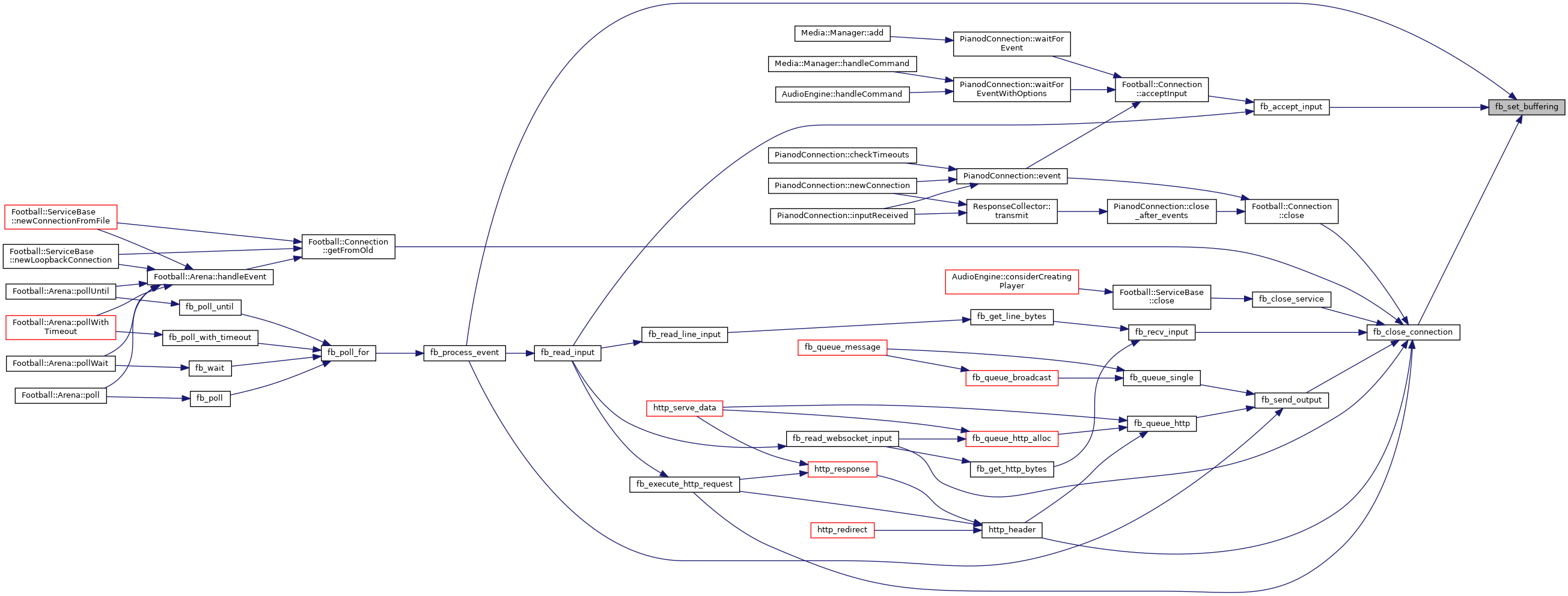

Here is the caller graph for this function:

fb_set_readable()

void fb_set_readable	(	int	socket_fd,
		bool	enable
	)

Enable/disable reading on a socket.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true to enable reads from the socket, false to disable

Here is the call graph for this function:

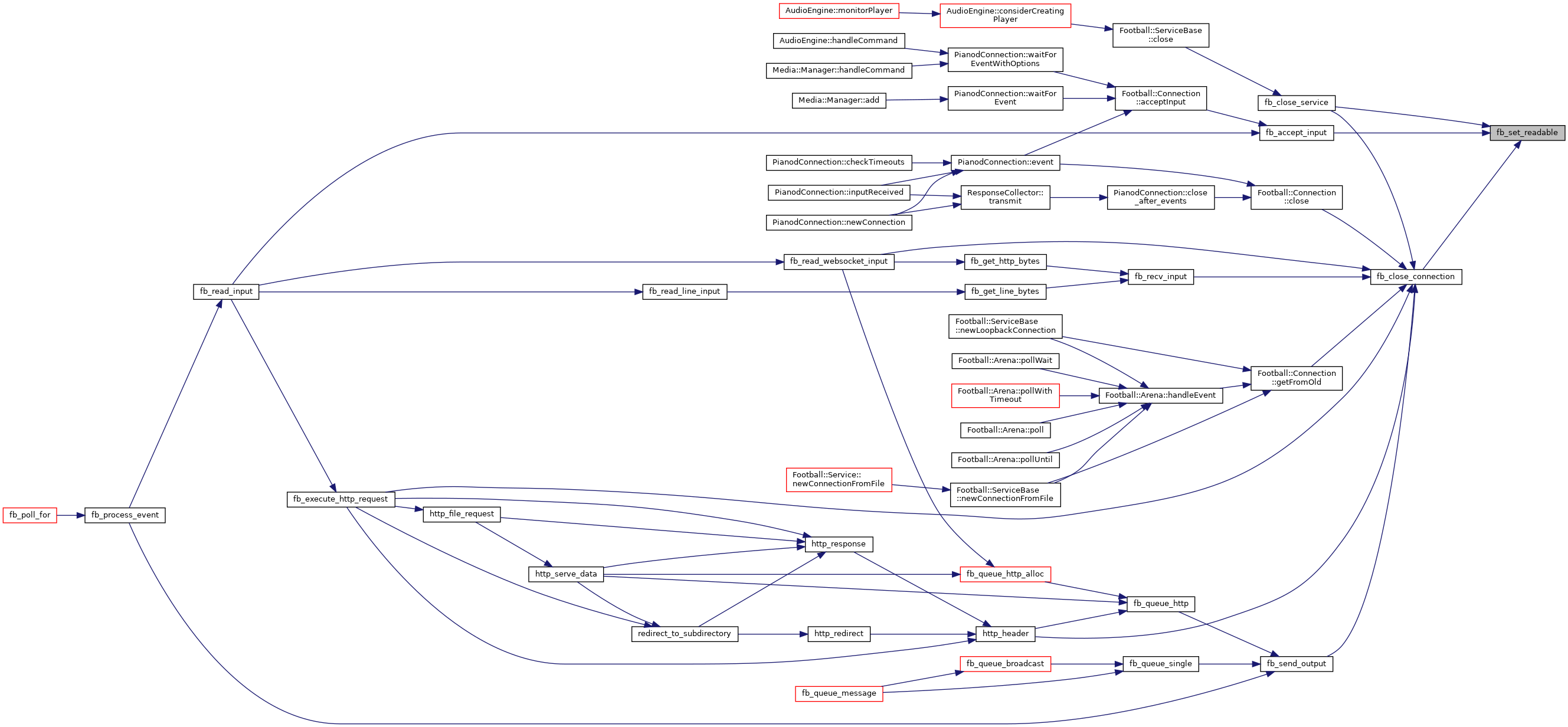

Here is the caller graph for this function:

fb_set_socket_select_flags()

void fb_set_socket_select_flags	(	int	socket_fd,
		ACTION	group,
		bool	enable
	)

Enable/disable the flags for selecting, or the buffering flags.

Parameters

socket_fd	the file descriptor to set flags for
group	which flags to adjust (read, write, ...)
enable	true to enable the flag, false to clear it

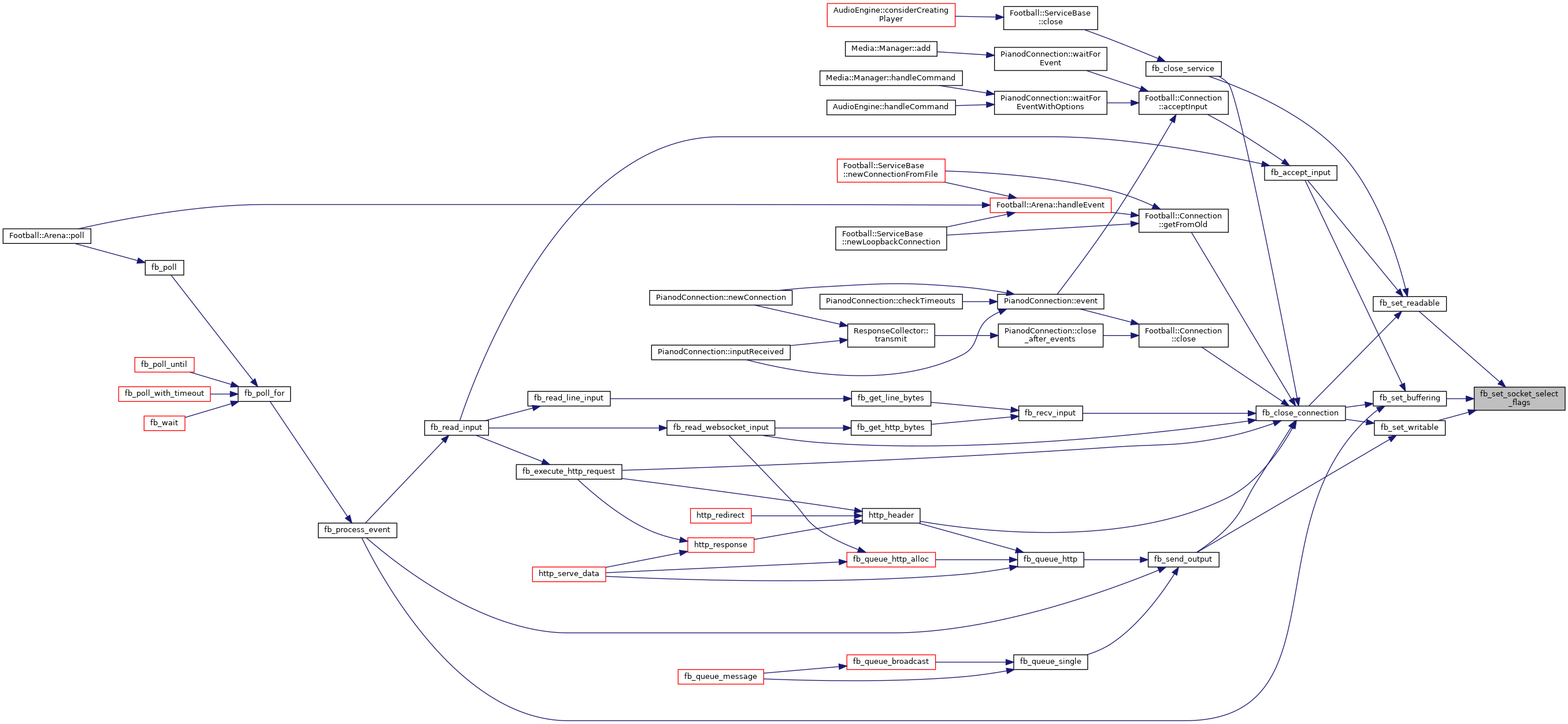

Here is the caller graph for this function:

fb_set_writable()

void fb_set_writable	(	int	socket_fd,
		bool	enable
	)

Enable/disable writing on a socket. This is used within Football, enabled when fresh data is queued for a socket and disabled when the buffer is empty.

Parameters

socket_fd	the file descriptor to apply flags to
enable	true to enable write-polling on the socket

Here is the call graph for this function:

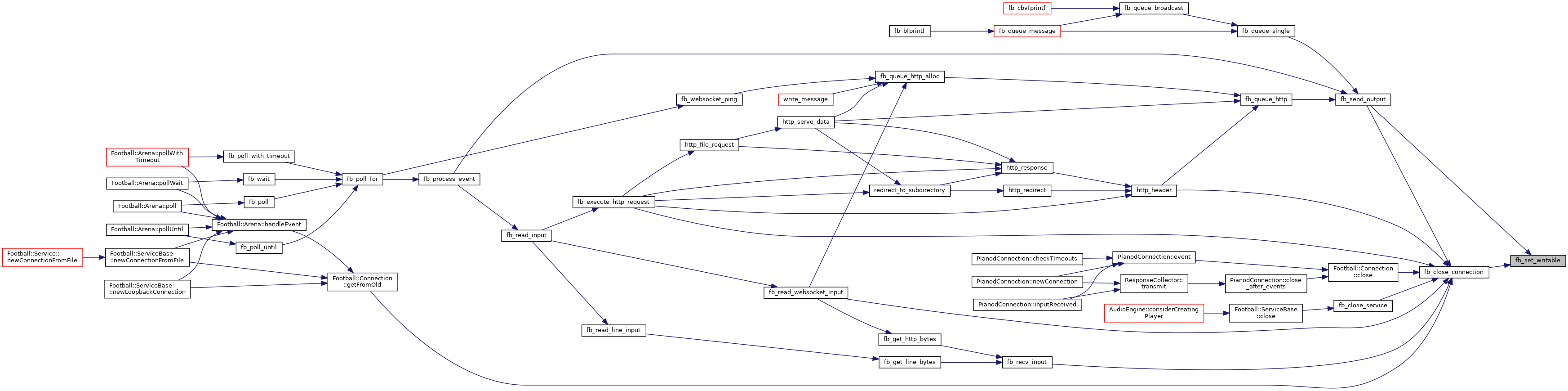

Here is the caller graph for this function:

fb_unregister()

void fb_unregister

(

int

socket_fd

)

Remove a socket from the registry.

Always succeeds, unless there's a bug.

Parameters

socket_fd

the file descriptor to unregister

Here is the caller graph for this function:

fb_wait()

FB_EVENT* fb_wait

(

void

)

Poll indefinitely.

Returns

An event.

Here is the call graph for this function:

Here is the caller graph for this function:

subtract_from_timeval()

static void subtract_from_timeval ( struct timeval *  minuend, const struct timeval *  subtrahend  )

static

Subtract time values.

Parameters

[in,out]	minuend	The time being subtracted from.
	subtrahend	The value being subtracted.

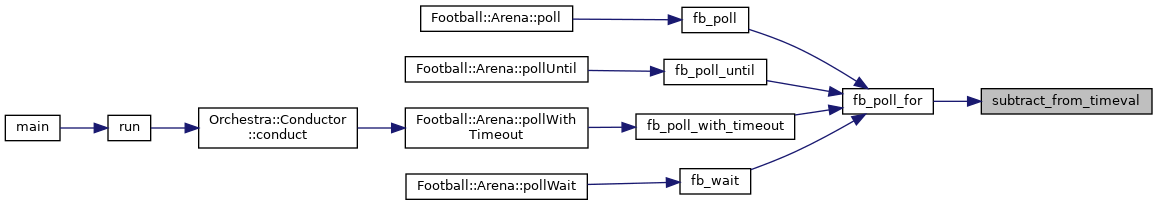

Here is the caller graph for this function:

Variable Documentation

activesockets

int activesockets = 0

static

interrupt_pending

volatile bool interrupt_pending = false

static

Return EVENT_INTERRUPTED on EINTR.

last_state

fd_set last_state[ACTION_SELECT_COUNT]

static

What came back on the last select()

maxsockets

int maxsockets = 0

static

queued_event

FB_EVENT* queued_event = NULL

static

Pending event (NULL if none, or single event.

reapq

FB_SERVICE* reapq = NULL

static

select_state

fd_set select_state[ACTION_COUNT]

static

What we'll use on the next select()

sockets

FB_SOCKET_DATA** sockets

static

Index by socket number to service/connection/etc.

tls_currently_buffering

bool tls_currently_buffering

static

Set when TLS has stuff in its buffers.
