ThreadSafeCircularQueue< ValueType, capacity > Class Template Reference

An circular queue meant for sharing data across threads. More...

#include <threadsafecircularqueue.h>

Collaboration diagram for ThreadSafeCircularQueue< ValueType, capacity >:

Classes
struct	StorageType

Public Types
using	value_type = ValueType

Public Member Functions
template<typename VT >
void	push_back (VT &&value)
	Add or move an item into the queue. More...
template<typename VT >
bool	try_push_back (VT &&value, const std::chrono::milliseconds &wait_duration=std::chrono::milliseconds::zero())
	Add or move an item into the queue. More...
ValueType	pop_front (int *overflows=nullptr, time_t *sent_time=nullptr)
	Retrieve an item from the queue. More...
bool	try_pop_front (ValueType *value, int *overflows=nullptr, time_t *sent_time=nullptr, std::chrono::milliseconds wait_duration=std::chrono::milliseconds::zero())
	Retrieve an item from the queue. More...

Private Types
using	index_type = uint32_t

Private Member Functions
index_type	next (index_type index)
	Increment an index, wrapping around buffer size. More...
void	write_common ()
	Perform actions common to the various forms of push_back. More...

Private Attributes
StorageType	data [capacity]
std::atomic< index_type >	read_index
std::mutex	read_mutex
std::condition_variable	read_bell
std::atomic< index_type >	write_index
std::mutex	write_mutex
std::condition_variable	write_bell

Detailed Description

template<typename ValueType, uint32_t capacity>
class ThreadSafeCircularQueue< ValueType, capacity >

An circular queue meant for sharing data across threads.

Template Parameters

ValueType	Type of objects being passed around.
capacity	The maximum capacity of the queue.

Member Typedef Documentation

index_type

template<typename ValueType , uint32_t capacity>

using ThreadSafeCircularQueue< ValueType, capacity >::index_type = uint32_t

private

value_type

template<typename ValueType , uint32_t capacity>

using ThreadSafeCircularQueue< ValueType, capacity >::value_type = ValueType

Member Function Documentation

next()

template<typename ValueType , uint32_t capacity>

index_type ThreadSafeCircularQueue< ValueType, capacity >::next ( index_type  index )

inlineprivate

Increment an index, wrapping around buffer size.

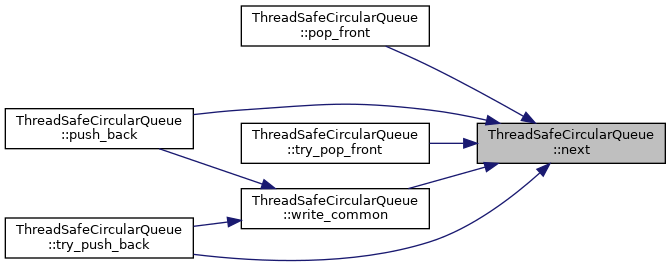

Here is the caller graph for this function:

pop_front()

template<typename ValueType , uint32_t capacity>

ValueType ThreadSafeCircularQueue< ValueType, capacity >::pop_front ( int *  overflows = nullptr, time_t *  sent_time = nullptr  )

inline

Retrieve an item from the queue.

If the queue is empty, block until an item becomes available.

Parameters

overflows	If non-null, set to the number of items dropped due to overflow.
sent_time	If non-null, the time at which the item was queued.

Returns

The next value from the queue.

Here is the call graph for this function:

push_back()

template<typename ValueType , uint32_t capacity>

template<typename VT >

void ThreadSafeCircularQueue< ValueType, capacity >::push_back ( VT &&  value )

inline

Add or move an item into the queue.

If the queue is full, wait until there's space.

Parameters

value

The value to add.

Here is the call graph for this function:

try_pop_front()

template<typename ValueType , uint32_t capacity>

bool ThreadSafeCircularQueue< ValueType, capacity >::try_pop_front ( ValueType *  value, int *  overflows = nullptr, time_t *  sent_time = nullptr, std::chrono::milliseconds  wait_duration = std::chrono::milliseconds::zero()  )

inline

Retrieve an item from the queue.

If the queue is empty, don't block.

Parameters

value	On return, set to the value retrieved from the queue.
overflows	If non-null, set to the number of items dropped due to overflow.
sent_time	If non-null, the time at which the item was queued.
wait_duration	A duration to wait for for an item; defaults to no wait.

Returns

True if a value was retrieved, false if the queue was empty.

Here is the call graph for this function:

try_push_back()

template<typename ValueType , uint32_t capacity>

template<typename VT >

bool ThreadSafeCircularQueue< ValueType, capacity >::try_push_back ( VT &&  value, const std::chrono::milliseconds &  wait_duration = std::chrono::milliseconds::zero()  )

inline

Add or move an item into the queue.

If the queue is full, mark that an overflow occured, and do not block.

Parameters

value	The value to add.
wait_duration	Optional: If specified, a duration to wait before giving up. Default is to not wait. Observation, however, shows that small waits can go a long way to reduce overflows, providing a chance for readers to catch up when the queue is full.

Returns

True on success, false on overflow.

Here is the call graph for this function:

write_common()

template<typename ValueType , uint32_t capacity>

void ThreadSafeCircularQueue< ValueType, capacity >::write_common ( )

inlineprivate

Perform actions common to the various forms of push_back.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

data

template<typename ValueType , uint32_t capacity>

StorageType ThreadSafeCircularQueue< ValueType, capacity >::data[capacity]

private

read_bell

template<typename ValueType , uint32_t capacity>

std::condition_variable ThreadSafeCircularQueue< ValueType, capacity >::read_bell

private

read_index

template<typename ValueType , uint32_t capacity>

std::atomic<index_type> ThreadSafeCircularQueue< ValueType, capacity >::read_index

private

read_mutex

template<typename ValueType , uint32_t capacity>

std::mutex ThreadSafeCircularQueue< ValueType, capacity >::read_mutex

private

write_bell

template<typename ValueType , uint32_t capacity>

std::condition_variable ThreadSafeCircularQueue< ValueType, capacity >::write_bell

private

write_index

template<typename ValueType , uint32_t capacity>

std::atomic<index_type> ThreadSafeCircularQueue< ValueType, capacity >::write_index

private

write_mutex

template<typename ValueType , uint32_t capacity>

std::mutex ThreadSafeCircularQueue< ValueType, capacity >::write_mutex

private

---

The documentation for this class was generated from the following file:

• common/threadsafecircularqueue.h
