Parsnip::SchemaSet Class Reference

A schema built to validate JSON messages based on command line patterns. More...

#include <parsnip_command.h>

Inheritance diagram for Parsnip::SchemaSet:

Public Types
using	CommandId = int
using	CommandSchemas = std::unordered_map< CommandId, SchemaBaseRef >
using	OptionSchemas = Schema::OptionSchemas
using	Dependencies = Schema::Dependencies

Public Member Functions
	SchemaSet (const class Parser &from)
	Construct schemas from a parser. More...
void	validate (const CommandId, const Data &) const
	Validate data against a command's schema. More...
std::ostream &	dump (const std::string &intro, const CommandId command_id, std::ostream &target=std::clog) const
	Dump the schema in human-readable format. More...
void	addMember (const CommandId, const char *name, const SchemaBase &schema, bool mandatory=false, const Dependencies &dependencies=Schema::NoDependencies)
	Modify a schema by adding a new dictionary member. More...
void	addMember (const char *name, const SchemaBase &schema, bool mandatory=false, const Dependencies &dependencies=Schema::NoDependencies)
	Add member to every schema in the schema set. More...
void	replaceMember (const CommandId, const char *name, const SchemaBase &schema)
	Modify a schema by replacing dictionary member. More...
void	removeMember (const CommandId, const char *name)
	Modify a schema by removing a dictionary member. More...

Public Attributes
OptionSchemas	option_schemas
	Schemas for each of the option parsers. More...

Private Member Functions
void	integrateSchema (const int, const class DictionarySchema &)
	Callback function, invoked when generating schemas from a Parser. More...
SchemaBaseRef &	getSchemaForCommand (CommandId command_id)
	Get a schema by ID. More...
const SchemaBaseRef &	getSchemaForCommand (CommandId command_id) const
	Constipated variant of this function. More...

Private Attributes
CommandSchemas	schemas
	Schemas for each unique command ID. More...

Detailed Description

A schema built to validate JSON messages based on command line patterns.

Member Typedef Documentation

CommandId

using Parsnip::SchemaSet::CommandId = int

CommandSchemas

using Parsnip::SchemaSet::CommandSchemas = std::unordered_map <CommandId, SchemaBaseRef>

Dependencies

using Parsnip::SchemaSet::Dependencies = Schema::Dependencies

OptionSchemas

using Parsnip::SchemaSet::OptionSchemas = Schema::OptionSchemas

Constructor & Destructor Documentation

SchemaSet()

Parsnip::SchemaSet::SchemaSet

(

const class Parser &

from

)

Construct schemas from a parser.

This first constructs schemas for all its option parsers, then generates the schema for the parser itself.

Parameters

from	The parser for which schemas are being generated.

Here is the call graph for this function:

Member Function Documentation

addMember() [1/2]

void Parsnip::SchemaSet::addMember	(	const char *	name,
		const SchemaBase &	schema,
		bool	mandatory = false,
		const Dependencies &	dependencies = Schema::NoDependencies
	)

Add member to every schema in the schema set.

Parameters

name	The dictionary member to add.
schema	The schema for the new member.
mandatory	If true, the member must be present for dictionaries to be valid.
dependencies	The names of other properties that must also be present when this one is.

Here is the call graph for this function:

addMember() [2/2]

void Parsnip::SchemaSet::addMember	(	const CommandId	command_id,
		const char *	name,
		const SchemaBase &	schema,
		bool	mandatory = false,
		const Dependencies &	dependencies = Schema::NoDependencies
	)

Modify a schema by adding a new dictionary member.

Parameters

command_id	The command number to modify.
name	The dictionary member to add.
schema	The schema for the new member.
mandatory	If true, the member must be present for dictionaries to be valid.
dependencies	The names of other properties that must also be present when this one is.

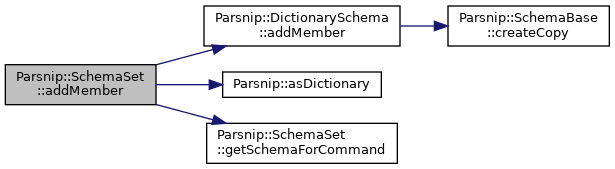

Here is the call graph for this function:

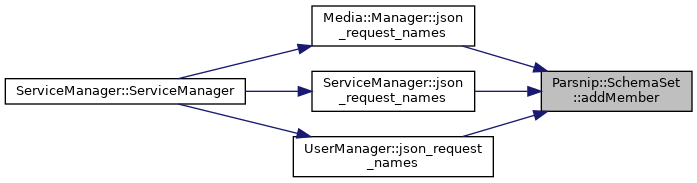

Here is the caller graph for this function:

dump()

std::ostream & Parsnip::SchemaSet::dump	(	const std::string &	intro,
		const CommandId	command_id,
		std::ostream &	target = std::clog
	)		const

Dump the schema in human-readable format.

Parameters

intro	A label for the schema.
command_id	The ID of the command to render.
target	A stream to which to render.

Here is the call graph for this function:

getSchemaForCommand() [1/2]

SchemaBaseRef & Parsnip::SchemaSet::getSchemaForCommand ( CommandId  command_id )

private

Get a schema by ID.

Parameters

command_id

The command ID.

Returns

The schema.

Exceptions

NoSchemaDefined

if there is no schema for command.

Here is the caller graph for this function:

getSchemaForCommand() [2/2]

const SchemaBaseRef & Parsnip::SchemaSet::getSchemaForCommand ( CommandId  command_id ) const

private

Constipated variant of this function.

integrateSchema()

void Parsnip::SchemaSet::integrateSchema ( const int  command_id, const class DictionarySchema &  command  )

private

Callback function, invoked when generating schemas from a Parser.

Parameters

command_id	The command ID the dataset represents.
command	A dataset a valid command would generate.

Here is the caller graph for this function:

removeMember()

void Parsnip::SchemaSet::removeMember	(	const CommandId	command_id,
		const char *	name
	)

Modify a schema by removing a dictionary member.

Parameters

command_id	The command number to modify.
name	The dictionary member to remove.

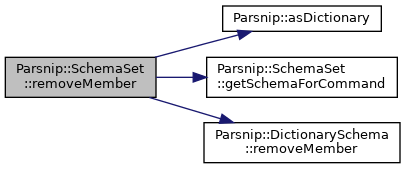

Here is the call graph for this function:

Here is the caller graph for this function:

replaceMember()

void Parsnip::SchemaSet::replaceMember	(	const CommandId	command_id,
		const char *	name,
		const SchemaBase &	schema
	)

Modify a schema by replacing dictionary member.

Mandatory status and dependencies are unchanged.

Parameters

command_id	The command number to modify.
name	The dictionary member to replace.
schema	The replacement schema.

Here is the call graph for this function:

validate()

void Parsnip::SchemaSet::validate	(	const CommandId	command_id,
		const Data &	data
	)		const

Validate data against a command's schema.

Parameters

command_id	The command the data represents.
data	The data to be validated. `

Exceptions

Exceptions

representing the manner of data non-conformance.

Here is the call graph for this function:

Member Data Documentation

option_schemas

OptionSchemas Parsnip::SchemaSet::option_schemas

Schemas for each of the option parsers.

schemas

CommandSchemas Parsnip::SchemaSet::schemas

private

Schemas for each unique command ID.

---

The documentation for this class was generated from the following files:

• parsnip/parsnip_command.h
• parsnip/parsnip_schema.cpp
