BlowFish Class Reference

#include <blowfish.h>

Public Types
using	size_type = uint32_t

Public Member Functions
	BlowFish (const uint8_t *key, size_type key_length)
	Initialize BlowFish cipher. More...
	BlowFish (const std::string &key)
	Initialize the BlowFish cipher. More...
void	encrypt (const uint8_t *input, size_type input_length, uint8_t *output, size_type output_size) const
	Encipher a BlowFish ECD message. More...
void	decrypt (const uint8_t *input, size_type input_length, uint8_t *output, size_type output_size) const
	Decipher a BlowFish ECD message. More...
std::string	encrypt (const std::string &input) const
	Encipher a message with Blowfish ECD. More...
std::string	decrypt (const std::string &input) const
	Decipher ciphertext encrypted with Blowfish ECD. More...
std::string	encryptToHex (const std::string &input) const
	Encrypt a string and return it has hex digits. More...
std::string	decryptFromHex (const std::string &input, bool trim_nulls=true) const
	Decrypt hex-encoded ciphertext and return it, optionally removing null padding that was added. More...

Static Public Member Functions
static constexpr size_type	getOutputLength (size_type length)
	Get length of required output buffer. More...
static std::string	to_hex (const uint8_t *bytes, size_type length)
	Translate some bytes into their hexadecimal representation. More...
static std::string	to_hex (const std::string &input)
	Convert a string to its hexadecimal representation. More...
static std::string	from_hex (const std::string &digits)
	Translate hexadecimal into a string. More...

Private Types
enum class	Action { Encrypt , Decrypt }
using	PArray = uint32_t[NumberOfPasses+2]
using	SBoxes = uint32_t[4][256]

Private Member Functions
uint32_t	fFunction (uint32_t in) const
	The cipher's "F function", used by ciphering/deciphering. More...
void	encipher (uint32_t *left_32, uint32_t *right_32) const
	Encipher a 64-bit block. More...
void	decipher (uint32_t *left_32, uint32_t *right_32) const
	Decipher a 64-bit block. More...
void	encrypt_or_decrypt (Action action, const uint8_t *input, size_type input_length, uint8_t *output, size_type output_size) const
	Encipher or decipher a series of bytes. More...

Private Attributes
PArray	parray
SBoxes	sboxes

Static Private Attributes
static constexpr int	NumberOfPasses = 16
static constexpr int	MaximumKeyBytes = 56
static const PArray	InitialPArray
static const SBoxes	InitialSBoxes

Member Typedef Documentation

PArray

using BlowFish::PArray = uint32_t [NumberOfPasses + 2]

private

SBoxes

using BlowFish::SBoxes = uint32_t [4][256]

private

size_type

using BlowFish::size_type = uint32_t

Member Enumeration Documentation

Action

enum BlowFish::Action

strongprivate

Enumerator
Encrypt
Decrypt

Constructor & Destructor Documentation

BlowFish() [1/2]

BlowFish::BlowFish	(	const uint8_t *	key,
		size_type	key_length
	)

Initialize BlowFish cipher.

Parameters

key	The cipher encryption/decryption key.
key_length	The length of the key, in bytes.

Here is the call graph for this function:

BlowFish() [2/2]

BlowFish::BlowFish

(

const std::string &

key

)

Initialize the BlowFish cipher.

Parameters

key	The key. The entire string is used, regardless of whitespace and nulls.

Member Function Documentation

decipher()

void BlowFish::decipher ( uint32_t *  left_32, uint32_t *  right_32  ) const

private

Decipher a 64-bit block.

Parameters

left_32	First 32 bits, in host byte (mathy) order.
right_32	Second 32 bits, in host byte (mathy) order.

Here is the call graph for this function:

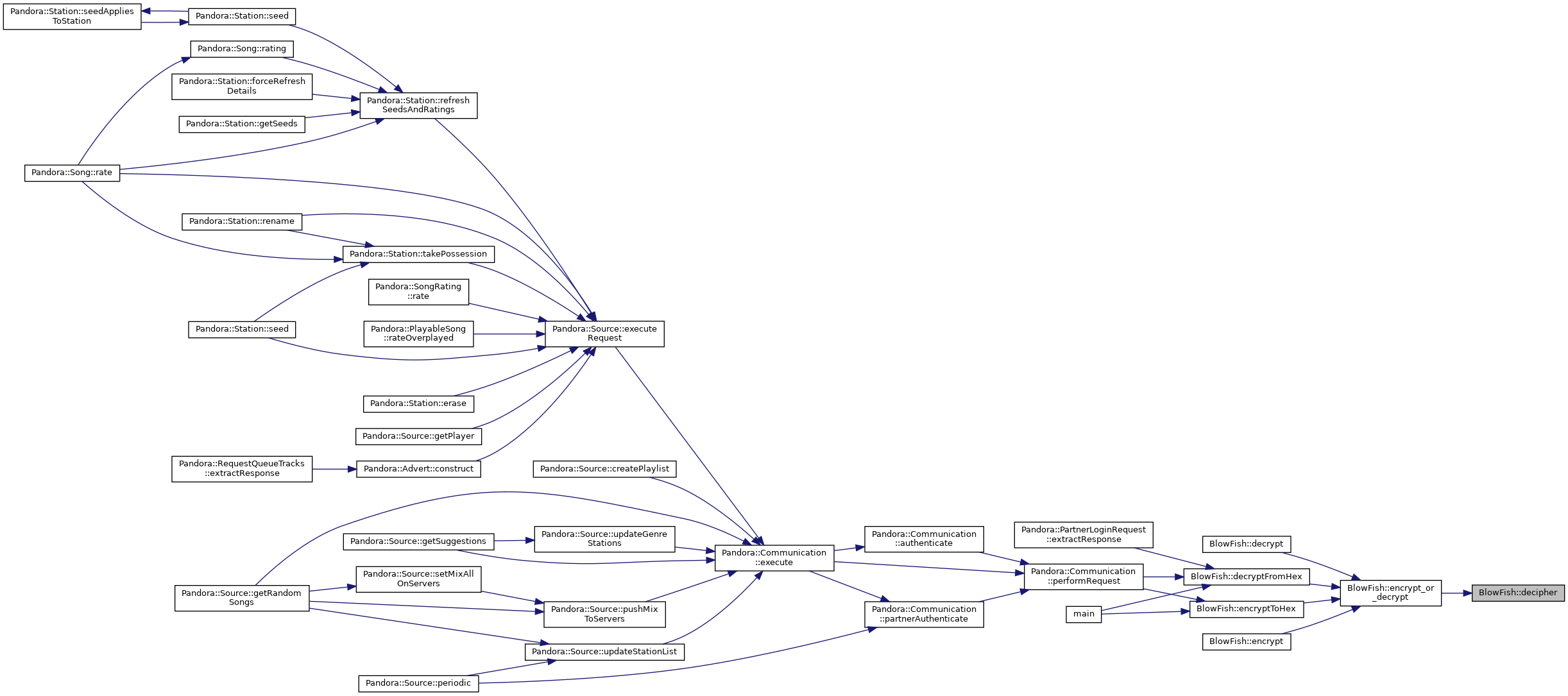

Here is the caller graph for this function:

decrypt() [1/2]

std::string BlowFish::decrypt

(

const std::string &

input

)

const

Decipher ciphertext encrypted with Blowfish ECD.

Parameters

input

The ciphertext to decipher.

Returns

The deciphered message. Any nulls added during encryption to pad the message to the necessary 64-bit/8-byte boundary are included.

Warning

There is no error checking. If you have the wrong key, you'll get junk out. There is no inherent error detection or validation.

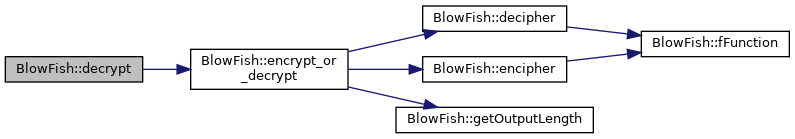

Here is the call graph for this function:

decrypt() [2/2]

void BlowFish::decrypt ( const uint8_t *  input, size_type  input_length, uint8_t *  output, size_type  output_size  ) const

inline

Decipher a BlowFish ECD message.

Parameters

input	The ciphertext.
input_length	The length of the message. This should be a multiple of 8, as all enciphered messages end up a multiple of 8 bytes. Truncated messages will decipher incorrectly.
output	A buffer for the resulting message. This may be the same as the input to encrypt in place.
output_size	The size of the output. This must be large enough to accommodate any added padding.

Here is the call graph for this function:

decryptFromHex()

std::string BlowFish::decryptFromHex	(	const std::string &	input,
		bool	trim_nulls = true
	)		const

Decrypt hex-encoded ciphertext and return it, optionally removing null padding that was added.

Whitespace or punctuation in the input are skipped.

Parameters

input	The ciphertext.
trim_nulls	If true, any trailing nulls are removed.

Returns

If the key is correct, the deciphered message. If not, junk.

Exceptions

invalid_argument

If the ciphertext has non-hex letters in it.

Here is the call graph for this function:

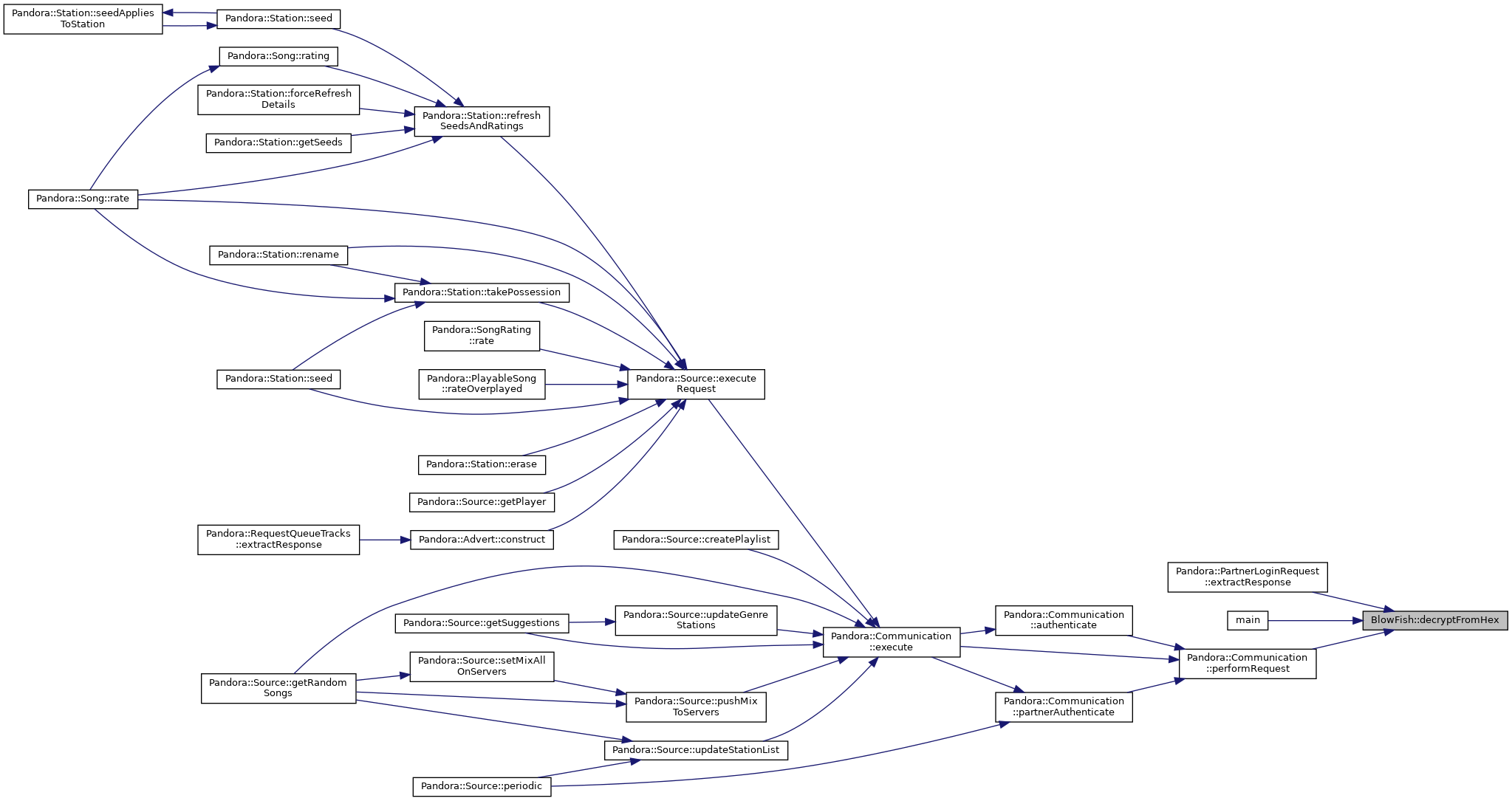

Here is the caller graph for this function:

encipher()

void BlowFish::encipher ( uint32_t *  left_32, uint32_t *  right_32  ) const

private

Encipher a 64-bit block.

Parameters

left_32	First 32 bits, in host byte (mathy) order.
right_32	Second 32 bits, in host byte (mathy) order.

Here is the call graph for this function:

Here is the caller graph for this function:

encrypt() [1/2]

std::string BlowFish::encrypt

(

const std::string &

input

)

const

Encipher a message with Blowfish ECD.

Warning

Don't use this cipher for new stuff. And don't use ECD.

Parameters

input

The message to encrypt.

Returns

The encrypted message. This will not be ASCII.

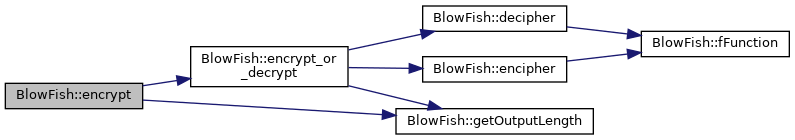

Here is the call graph for this function:

encrypt() [2/2]

void BlowFish::encrypt ( const uint8_t *  input, size_type  input_length, uint8_t *  output, size_type  output_size  ) const

inline

Encipher a BlowFish ECD message.

Warning

Don't use this cipher for new stuff. And don't use ECD.

Parameters

input	The message to encrypt.
input_length	The length of the message.
output	A buffer for the resulting message. This may be the same as the input to encrypt in place.
output_size	The size of the output. This must be large enough to accommodate any added padding.

Here is the call graph for this function:

encrypt_or_decrypt()

void BlowFish::encrypt_or_decrypt ( Action  action, const uint8_t *  input, size_type  input_length, uint8_t *  output, size_type  output_size  ) const

private

Encipher or decipher a series of bytes.

Result is produced in 64-bit (8-byte) chunks; if the input is not an even length, it is padded on the tail end with nulls. Once encrypted, these are part of the ciphertext; if the message is truncated to its original length, it won't decrypt.

Parameters

action	Selects encryption or decryption.
input	The input message.
input_length	The length of the input message.
output	Buffer for the encrypted message.
output_size	The size of the buffer. Must be the required size (input length ceilinged to %8==0).

Here is the call graph for this function:

Here is the caller graph for this function:

encryptToHex()

std::string BlowFish::encryptToHex

(

const std::string &

input

)

const

Encrypt a string and return it has hex digits.

Parameters

input

The message to encipher.

Returns

A hex representation of the ciphertext.

Here is the call graph for this function:

Here is the caller graph for this function:

fFunction()

uint32_t BlowFish::fFunction ( uint32_t  in ) const

private

The cipher's "F function", used by ciphering/deciphering.

Here is the caller graph for this function:

from_hex()

std::string BlowFish::from_hex ( const std::string &  digits )

static

Translate hexadecimal into a string.

Whitespace, punctuation and other junk is ignored.

Parameters

digits

The digits to translate.

Returns

The unhexed string.

Exceptions

invalid_argument

upon bad input: An odd number of digits. Letters that are not hex digits.

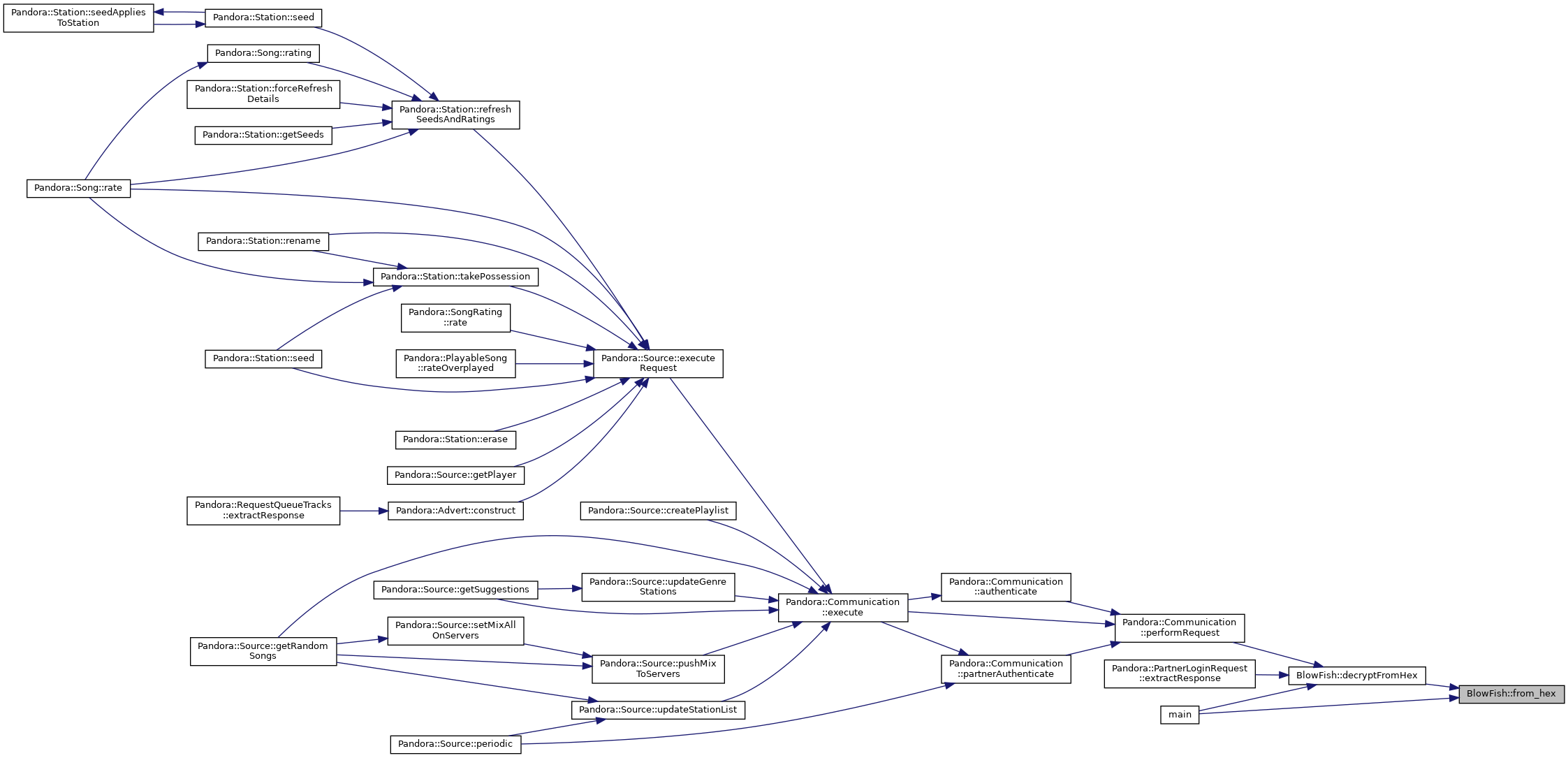

Here is the caller graph for this function:

getOutputLength()

static constexpr size_type BlowFish::getOutputLength ( size_type  length )

inlinestaticconstexpr

Get length of required output buffer.

Parameters

length

The length of the input message.

Returns

The length the output buffer must be to accommodate the message.

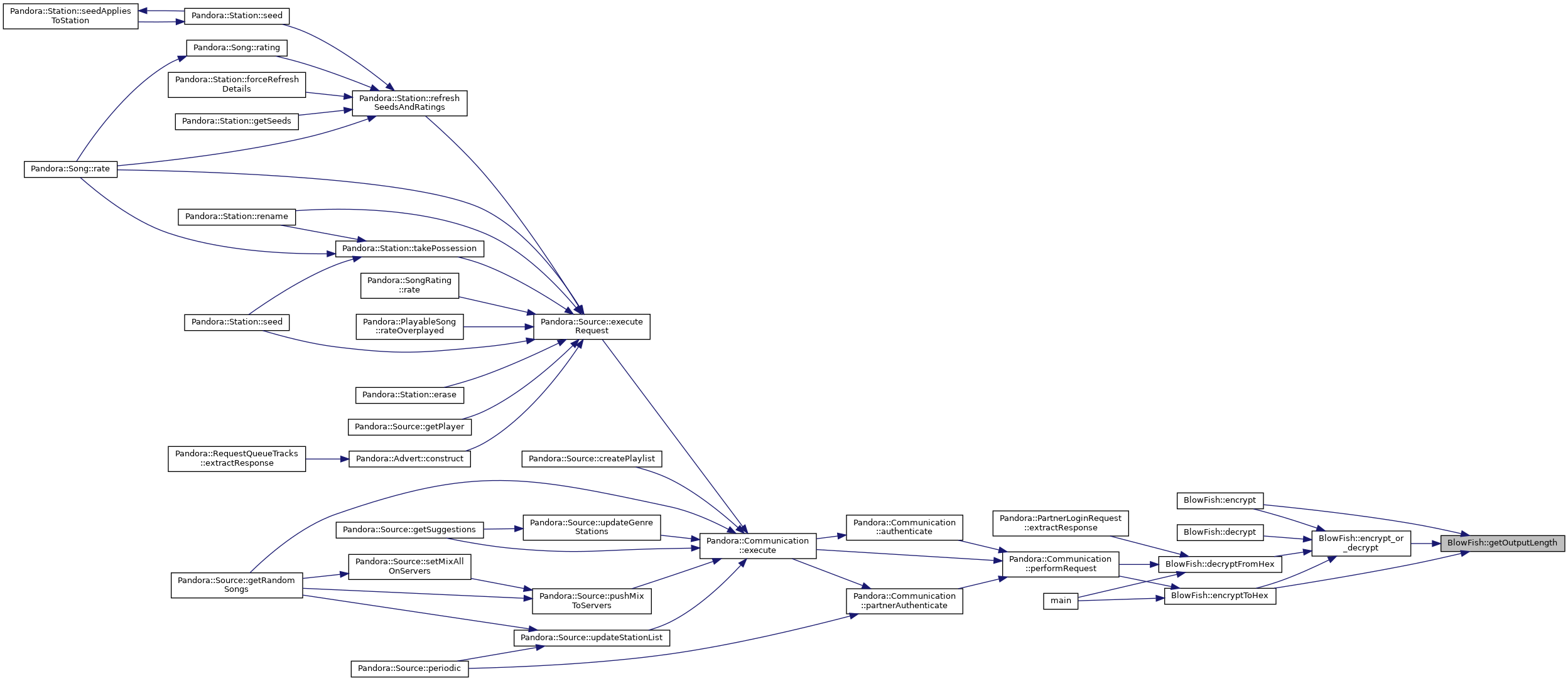

Here is the caller graph for this function:

to_hex() [1/2]

static std::string BlowFish::to_hex ( const std::string &  input )

inlinestatic

Convert a string to its hexadecimal representation.

Here is the call graph for this function:

to_hex() [2/2]

std::string BlowFish::to_hex ( const uint8_t *  bytes, size_type  length  )

static

Translate some bytes into their hexadecimal representation.

Parameters

bytes	The beginning of the byte stream.
length	The number of bytes to hex encode.

Returns

A string containing each byte encoded as 2 hex digits.

Here is the caller graph for this function:

Member Data Documentation

InitialPArray

const BlowFish::PArray BlowFish::InitialPArray

staticprivate

Initial value:

= {
    0x243f6a88, 0x85a308d3, 0x13198a2e, 0x03707344, 0xa4093822, 0x299f31d0, 0x082efa98, 0xec4e6c89, 0x452821e6,
    0x38d01377, 0xbe5466cf, 0x34e90c6c, 0xc0ac29b7, 0xc97c50dd, 0x3f84d5b5, 0xb5470917, 0x9216d5d9, 0x8979fb1b,
}

InitialSBoxes

const BlowFish::SBoxes BlowFish::InitialSBoxes

staticprivate

MaximumKeyBytes

constexpr int BlowFish::MaximumKeyBytes = 56

staticconstexprprivate

NumberOfPasses

constexpr int BlowFish::NumberOfPasses = 16

staticconstexprprivate

parray

PArray BlowFish::parray

private

sboxes

SBoxes BlowFish::sboxes

private

---

The documentation for this class was generated from the following files:

• mediaunits/pandora/blowfish.h
• mediaunits/pandora/blowfish.cpp
